Поз.
Артикул
Описание

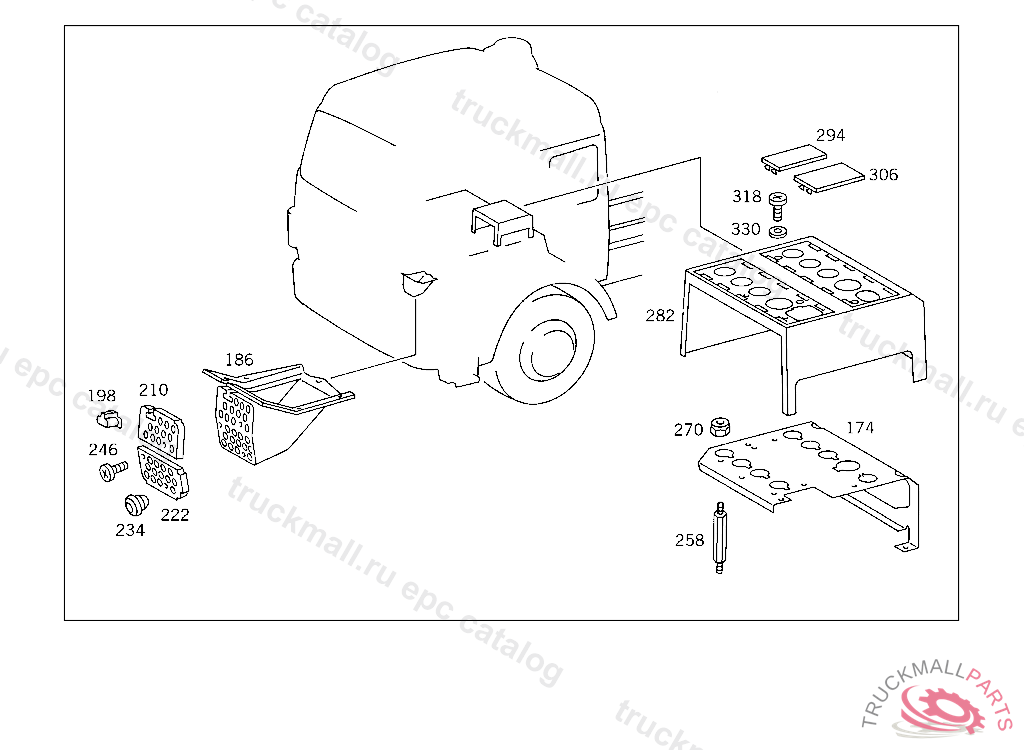

174
BRACKET (CONNECTION PLATE) COMPRESSED-AIR-LINE PLUG-CONNECTION
174
BRACKET (CONNECTION PLATE) COMPRESSED-AIR-LINE PLUG-CONNECTION
186
BRACKET (CONNECTION PLATE) COMPRESSED-AIR-LINE PLUG-CONNECTION
198
GASKET (CONNECTION PLATE) COMPRESSED-AIR-LINE PLUG-CONNECTION
210
PLATE (CONNECTION PLATE) COMPRESSED-AIR-LINE PLUG-CONNECTION
222
PLATE (CONNECTION PLATE) COMPRESSED-AIR-LINE PLUG-CONNECTION
234
RUBBER BUFFER TO PLUG THE FREE CONNECTIONS
246
SCREW PLATE TO BRACKET
258
PIN BRACKET TO ENGINE TUNNEL
270
NUT , Replaced By: N913004006001
270
NUT PUMP TO BRACKET
282
PROTECTIVE PLATE BRACKET
282
PROTECTIVE PLATE BRACKET
294
COVERING IN PLACE OF SWITCH 82X44,5 MM
306
COVERING IN PLACE OF SWITCH 82X56,5 MM
318
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
330
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
330
WASHER COMPRESSED AIR LINE TO BRACKET
999
COVERING BRACKET, Replaced By: A6554300262
999
COVERING BRACKET, Replaced By: A6554300162
999
PROTECTIVE PLATE BRACKET, Replaced By: A6554300662
999
PROTECTIVE PLATE BRACKET, Replaced By: A6554300562
999
COVERING
999
STORAGE BOX
