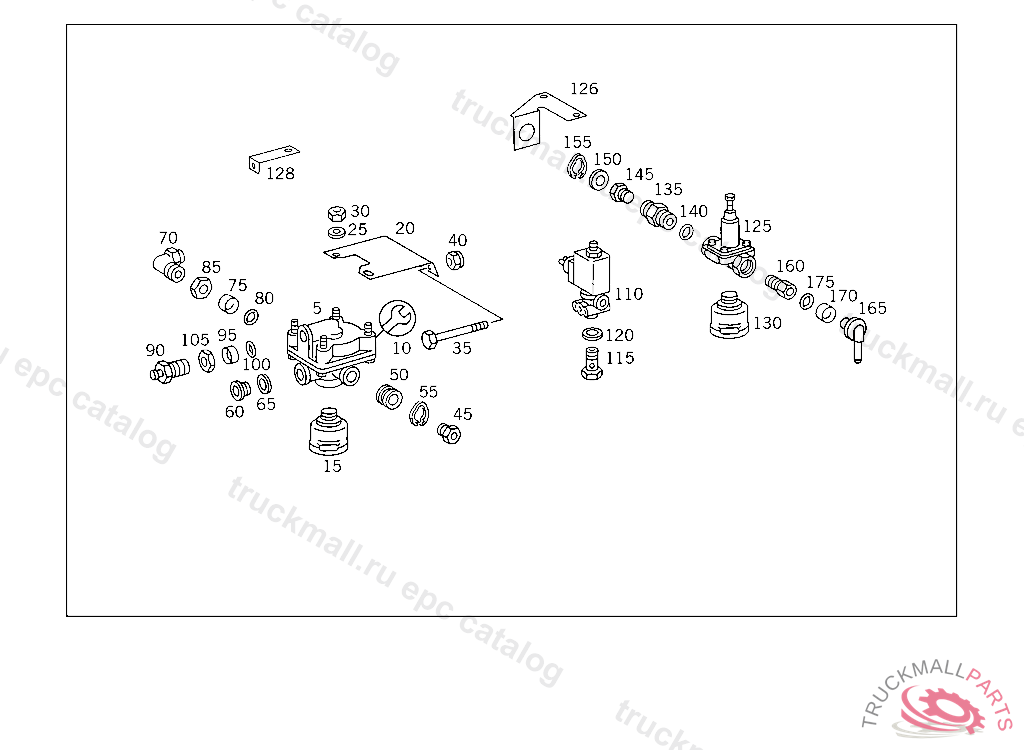

Поз.
Артикул
Описание
5
VALVE FRONT AXLE II RELAY VALVE "BOSCH"
5
VALVE FRONT AXLE II RELAY VALVE "WABCO"
5
VALVE , Replaced By: A0044293844
10
REPAIR KIT RELAY VALVE "GRAU"
10
REPAIR KIT RELAY VALVE BOSCH
10
REPAIR KIT RELAY VALVE TO 004 429 38 44,WABCO
10
REPAIR KIT RELAY VALVE TO 003 429 93 44,WABCO
15
MUFFLER VALVE BLEEDING
15
MUFFLER VALVE BLEEDING
15
MUFFLER , Replaced By: A0004302470
20
BRACKET RELAY VALVE TO CROSS MEMBER
20
BRACKET RELAY VALVE TO CROSS MEMBER
20
BRACKET RELAY VALVE
25
WASHER EXHAUST MUFFLER TO STRAP
25
WASHER , Replaced By: N000125008443
30
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
30
NUT , Replaced By: N913004008001
35
SCREW END PIECE TO EXHAUST PIPE M 10X25
40
NUT STRAP TO BRACKET
40
NUT , Replaced By: N910113010000
45
SCREW. UNION SCREW LINE CONNECTION
50
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
55
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
60
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
60
SCREW PLUG , Replaced By: N000908022011
65
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
70
ELBOW FITTING COMBINATION CYLINDER,CONNECTION: "12"
70
ELBOW FITTING , Replaced By: A0004294638
75
THRUST RING CHECK VALVE TO AIR RESERVOIR
75
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
80
O-RING CHECK VALVE TO AIR RESERVOIR
85
NUT CHECK VALVE TO AIR RESERVOIR
90
FITTING 3/2-WAY VALVE,CONNECTION: "20"
95
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
100
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
105
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
110
VALVE (3/2-WAY SOLENOID VALVE), PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
115
HOLLOW SCREW HEATING CONNECTION
115
HOLLOW SCREW HEATING CONNECTION
120
SEAL RING LINE CONNECTION
120
SEAL RING LINE CONNECTION
125
VALVE (OVERFLOW VALVE)
125
VALVE (OVERFLOW VALVE) "WABCO"
125
VALVE OVERFLOW VALVE WABCO
125
VALVE (OVERFLOW VALVE)
125
VALVE (OVERFLOW VALVE)
125
VALVE (OVERFLOW VALVE)
125
VALVE (OVERFLOW VALVE) WABCO,2.5 BAR
126
BRACKET OVERFLOW VALVE
128
BRACKET FUEL LINES TO TRANSMISSION
130
MUFFLER VALVE BLEEDING
130
MUFFLER VALVE BLEEDING
130
MUFFLER , Replaced By: A0004302470
135
FITTING AIR RESERVOIR,CONNECTION: "26", NOT USED
140
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
145
SCREW. UNION SCREW LINE CONNECTION
145
SCREW. UNION SCREW , Replaced By: A0009973734
150
LOCK RING LINE CONNECTION
150
SEAL RING , Replaced By: A0009940747
155
LOCK LINE CONNECTION
155
LOCK , Replaced By: A0009945448
160
FITTING AIR RESERVOIR,CONNECTION: "11"
165
PIPE SOCKET 3/2-WAY VALVE,CONNECTION: "30"
170
THRUST RING CHECK VALVE TO AIR RESERVOIR
170
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
175
O-RING CHECK VALVE TO AIR RESERVOIR
999
ELBOW FITTING 3/2-WAY VALVE BREATHING
999
ELBOW FITTING HOSE WIDTH, 8 MM, TO M 16
999
VALVE FRONT AXLE II RELAY VALVE "GRAU", NOT USED
999
SCREW STRAP TO BRACKET
