Поз.
Артикул
Описание

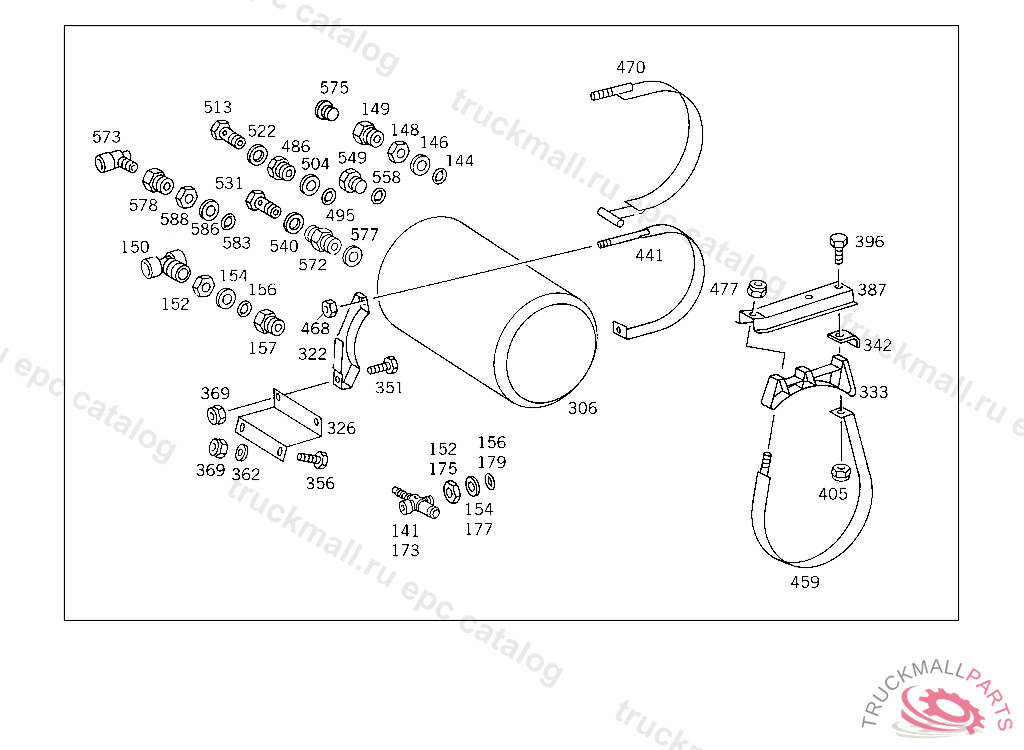

141
CROSS FITTING AIR DEHYDRATOR,CONNECTION: "21"
141
CROSS FITTING AIR DEHYDRATOR,CONNECTION: "21"
141
CROSS FITTING AIR DEHYDRATOR,CONNECTION: "21", 3XM 22X1.5/1XM 16X1.5
144
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
146
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
148
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
149
SCREW. UNION SCREW LINE CONNECTION
149
SCREW. UNION SCREW LINE CONNECTION
149
SCREW. UNION SCREW LINE CONNECTION
150
T-FITTING LINE CONNECTION
152
HOLLOW SCREW AIR DEHYDRATOR,CONNECTION: "21"
152
NUT CHECK VALVE TO AIR RESERVOIR
152
NUT CHECK VALVE TO AIR RESERVOIR
154
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
154
THRUST RING CHECK VALVE TO AIR RESERVOIR
154
THRUST RING CHECK VALVE TO AIR RESERVOIR
156
O-RING CHECK VALVE TO AIR RESERVOIR
156
O-RING CHECK VALVE TO AIR RESERVOIR
157
SCREW. UNION SCREW LINE CONNECTION
173
CROSS FITTING AIR DEHYDRATOR,CONNECTION: "21"
175
NUT CHECK VALVE TO AIR RESERVOIR
177
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
177
THRUST RING CHECK VALVE TO AIR RESERVOIR
179
O-RING CHECK VALVE TO AIR RESERVOIR
306
RESERVOIR20 L
306
RESERVOIR SPRING LOAD ACCUMULATOR 20 L, Replaced By: A0034321601
306
RESERVOIR20L,276 MM,8.5 BAR
306
RESERVOIR E P S AND CLUTCH BOOSTER 10 L, Replaced By: A0034320801
306
RESERVOIR10L,206 MM,8.5 BAR
306
RESERVOIR , Replaced By: A0034321201
306
RESERVOIR20 L
306
RESERVOIR ,5 934167, Replaced By: A0034321401
306
RESERVOIR ,5 563826
306
RESERVOIR10L,206 MM,8.5 BAR
306
RESERVOIR SPRING LOAD ACCUMULATOR 20 L, Replaced By: A0034321601
306
RESERVOIR , Replaced By: A0014327501
306
RESERVOIR , Replaced By: A0034321201
306
RESERVOIR20L,246 MM,12.5 BAR
306
RESERVOIR20L,246 MM,12.5 BAR
306
RESERVOIR , Replaced By: A0034321201
306
RESERVOIR20L,246 MM,12.5 BAR
306
RESERVOIR20L,246 MM,12.5 BAR
306
RESERVOIR20L,246 MM,12.5 BAR
306
RESERVOIR ,5 934167, Replaced By: A0034321401
306
RESERVOIR ,5 563826
306
RESERVOIR , Replaced By: A0034321201
306
RESERVOIR20L,246 MM,12.5 BAR
306
RESERVOIR , Replaced By: A0054322001, +001A0009870446, +001A0009940203, +001A0049978272
306
COMPRESSED AIR RESERVOIR. RESERVOIR6 L, TO VOSS 232, FOR VEHICLES WITH VOSS 230 CONNECTOR:ADD. MOUNT FITTING "A 004 997 82 72" WITH O-RING "A 000 987 04 46" AND THRUST RING "A 000 997 02 03" TO AIR RESERVOIR
306
RESERVOIR ,5 563826
306
RESERVOIR , Replaced By: A0034321401
322
BRACKET AIR RESERVOIR TO FRAME
322
BRACKET AIR RESERVOIR TO FRAME
322
BRACKET AIR RESERVOIR TO FRAME
326
BRACKET AIR RESERVOIR
326
BRACKET AIR RESERVOIR,5 765578
326
BRACKET AIR RESERVOIR
326
BRACKET AIR RESERVOIR
326
BRACKET AIR RESERVOIR
326
BRACKET AIR RESERVOIR
333
BASE AIR RESERVOIR,5 317650
342
PLATE ,5 317650
351
SCREW REAR EXHAUST PIPE TO MUFFLER
351
SCREW , Replaced By: N304017010043
351
SCREW BRACKET TO CONSOLE
351
SCREW REAR EXHAUST PIPE TO MUFFLER
351
SCREW , Replaced By: N304017008021
351
SCREW REAR EXHAUST PIPE TO MUFFLER
351
SCREW PIPE CLAMP
351
SCREW , Replaced By: N304017008021
351
SCREW BRACKET TO CROSS CONNECTION STRUT
351
SCREW , Replaced By: N304017008034
351
SCREW PIPE CLAMP
351
SCREW PIPE CLAMP
356
SCREW PIPE CLAMP
356
SCREW END PIECE TO EXHAUST PIPE M 10X25
356
SCREW HAND PUMP TO BRACKET
356
SCREW EXHAUST PIPE TO BRACKET
356
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
356
SCREW , Replaced By: N304017008027
356
SCREW REAR EXHAUST PIPE TO MUFFLER
356
SCREW PIPE CLAMP
356
SCREW PIPE CLAMP
356
SCREW BRACKET TO CROSS CONNECTION STRUT
356
SCREW BRACKET TO SIDE MEMBER,K 168169
356
SCREW , Replaced By: A0089907401
356
SCREW EXHAUST PIPE TO BRACKET
356
SCREW BRACKET TO SIDE MEMBER M 12X40
356
SCREW EXHAUST PIPE TO BRACKET
356
SCREW EXHAUST PIPE TO BRACKET
356
SCREW END PIECE TO EXHAUST PIPE M 10X25
356
SCREW BRACKET TO CROSS CONNECTION STRUT
356
SCREW , Replaced By: N304017008034
356
SCREW PIPE CLAMP
356
SCREW , Replaced By: N304017008021
356
SCREW END PIECE TO EXHAUST PIPE M 12X30
356
SCREW , Replaced By: N304017012020
362
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
362
WASHER , Replaced By: N000125015019
362
WASHER RADIATOR TO RUBBER MOUNTING
362
WASHER BRACKET TO SIDE MEMBER
362
WASHER RADIATOR TO RUBBER MOUNTING
362
WASHER , Replaced By: N000125010532
369
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
369
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
369
NUT STRAP TO BRACKET
369
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
369
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
369
NUT , Replaced By: N913004008001
369
NUT STRAP TO BRACKET
369
NUT , Replaced By: N910113010000
387
SUPPORT AT CROSS MEMBER,5 317650
387
SUPPORT AT CROSS MEMBER,5 317649
396
SCREW BRACKET TO CROSS CONNECTION STRUT
396
SCREW , Replaced By: N304017008034
396
SCREW PIPE CLAMP
396
SCREW , Replaced By: N304017008021
405
NUT BRACKET TO SIDE MEMBER
405
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
405
NUT END PIECE TO EXHAUST PIPE
405
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
405
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
405
NUT END PIECE TO EXHAUST PIPE
405
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
405
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
405
NUT , Replaced By: N913004008001
441
STRAP AIR RESERVOIR TO BRACKET
441
STRAP AIR RESERVOIR TO BRACKET
441
STRAP AIR RESERVOIR TO BRACKET
441
STRAP CLUTCH BOOSTER AIR RESERVOIR 520 MM
441
STRAP CLUTCH BOOSTER AIR RESERVOIR 520 MM
441
STRAP AIR RESERVOIR TO BRACKET
441
STRAP AIR RESERVOIR TO BRACKET
441
STRAP AIR RESERVOIR TO BRACKET
441
STRAP CLUTCH BOOSTER AIR RESERVOIR 520 MM
441
STRAP AIR RESERVOIR TO BRACKET
441
STRAP CLUTCH BOOSTER AIR RESERVOIR 520 MM
441
STRAP AIR RESERVOIR TO BRACKET
441
STRAP CLUTCH BOOSTER AIR RESERVOIR 520 MM
441
STRAP CLUTCH BOOSTER AIR RESERVOIR 520 MM
459
STRAP SERVICE BRAKE AIR RESERVOIR
459
STRAP SERVICE BRAKE AIR RESERVOIR, Replaced By: A6204300040
468
NUT BRACKET TO SUPPORT AND TO END PIECE
468
NUT BRACKET TO SUPPORT AND TO END PIECE
468
NUT BRACKET TO SUPPORT AND TO END PIECE
470
STRAP CLUTCH BOOSTER AIR RESERVOIR 520 MM
470
STRAP AIR RESERVOIR TO BRACKET
477
NUT STRAP TO BRACKET
477
NUT STRAP TO BRACKET
477
NUT , Replaced By: N910113010000
486
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
495
O-RING CHECK VALVE TO AIR RESERVOIR
504
THRUST RING CHECK VALVE TO AIR RESERVOIR
504
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
513
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
522
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
531
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
540
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
549
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
549
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
549
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
549
SCREW PLUG , Replaced By: N000908022011
558
O-RING CHECK VALVE TO AIR RESERVOIR
572
FITTING LINE CONNECTION
572
FITTING LINE CONNECTION
572
FITTING LINE CONNECTION
572
FITTING LINE CONNECTION
572
FITTING LINE CONNECTION
572
FITTING LINE CONNECTION
572
FITTING LINE CONNECTION
572
FITTING LINE CONNECTION
573
T-FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "21,22"
575
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
575
SCREW PLUG , Replaced By: N000908022011
577
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
577
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
577
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
577
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
577
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
578
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
583
O-RING CHECK VALVE TO AIR RESERVOIR
583
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
586
THRUST RING CHECK VALVE TO AIR RESERVOIR
586
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
586
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
588
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
999
CONNECTOR BLEEDING
999
PLUGTO 008 420 59 18,KNORR
999
VALVE REPAIR KIT
999
VALVE (PRESSURE LIMIT VALVE)
999
VALVE FRONT AXLE II RELAY VALVE "GRAU", NOT USED
999
VALVE (QUICK-RELEASE VALVE) WABCO
999
VALVE (QUICK-RELEASE VALVE) WABCO
999
WHEEL BRAKE CYLINDER TRISTOP CYLINDER BOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
WHEEL BRAKE CYLINDER TRISTOP CYLINDER WABCO,5 963779 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
REPAIR KIT COMBINATION CYLINDER KNORR,K 186394
999
BEARING BRACKET WHEEL CYLINDER, IN CASE OF CAST AXLE
999
STRAP SPRING-LOADED BRAKE AIR RESERVOIR, Replaced By: A6554900942
999
BRACKET TRAILER CONTROL VALVE
999
GUIDE SIGN
