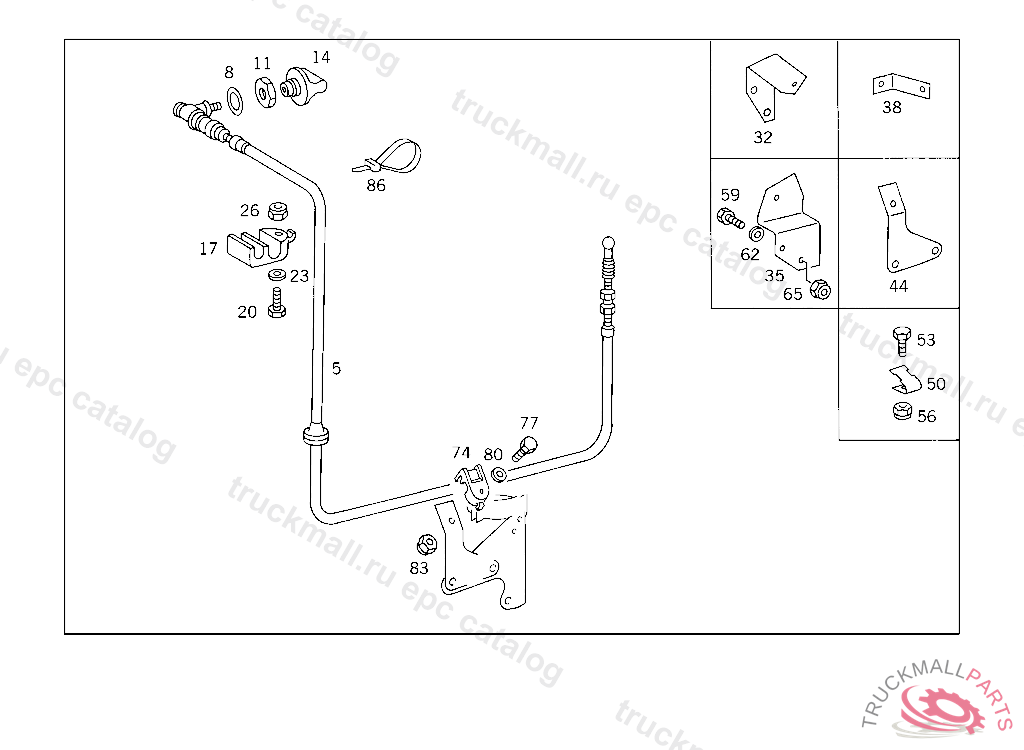

Поз.
Артикул
Описание
5
WIRE CABLE MANUAL CONTROL, REPAIR IMPOSSIBLE
5
WIRE CABLE MANUAL CONTROL, REPAIR IMPOSSIBLE
8
FITTED WASHER WIRE CABLE TO INSTRUMENT PANEL
11
NUT WIRE CABLE TO INSTRUMENT PANEL
14
KNOB IDLING ADJUSTMENT
17
CLAMPING PIECE IDLING ADJUSTMENT WIRE CABLE
20
SCREW , Replaced By: N000000001149
20
SCREW , Replaced By: A0029903712
20
HEXALOBULAR BOLT WIRE CABLE TO BRACKET
23
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
23
WASHER COMPRESSED AIR LINE TO BRACKET
26
NUT PUMP TO BRACKET
26
NUT , Replaced By: N913004006001
32
BRACKET , Replaced By: A6523011640
32
BRACKET , Replaced By: A6523011940
32
BRACKET WIRE CABLE TO BRACKET
35
BRACKET WIRE CABLE TO HYDRAULIC LINE BRACKET
38
BRACKET WIRE CABLE TO AIR BAFFLE BRACKET
44
BRACKET WIRE CABLE TO STEERING OIL TANK BRACKET
44
BRACKET WIRE CABLE TO FRAME SIDE MEMBER
50
BRACKET WIRE CABLE TO FRAME SIDE MEMBER
50
BRACKET , Replaced By: A6523010240
53
SCREW END PIECE TO EXHAUST PIPE M 10X25
56
NUT , Replaced By: N910113010000
56
NUT STRAP TO BRACKET
59
SCREW CENTRAL LOCK TO CAB M 10X16
59
SCREW LICENSE PLATE TO BRACKET
59
SCREW , Replaced By: N304017006020
59
SCREW , Replaced By: N304017006016
59
SCREW PUMP TO BRACKET
62
WASHER COMPRESSED AIR LINE TO BRACKET
62
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
65
NUT , Replaced By: N913004006001
65
NUT PUMP TO BRACKET
74
CLAMPING PIECE IDLING ADJUSTMENT WIRE CABLE
77
SCREW , Replaced By: N000000001149
77
SCREW , Replaced By: A0029903712
77
HEXALOBULAR BOLT WIRE CABLE TO BRACKET
80
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
80
WASHER COMPRESSED AIR LINE TO BRACKET
83
NUT PUMP TO BRACKET
83
NUT , Replaced By: N913004006001
86
LOOM TIE LINE MOUNTING
86
LOOM TIE LINE MOUNTING 280 MM
999
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
999
CLAMP ,K 147121, Replaced By: N000000000319
