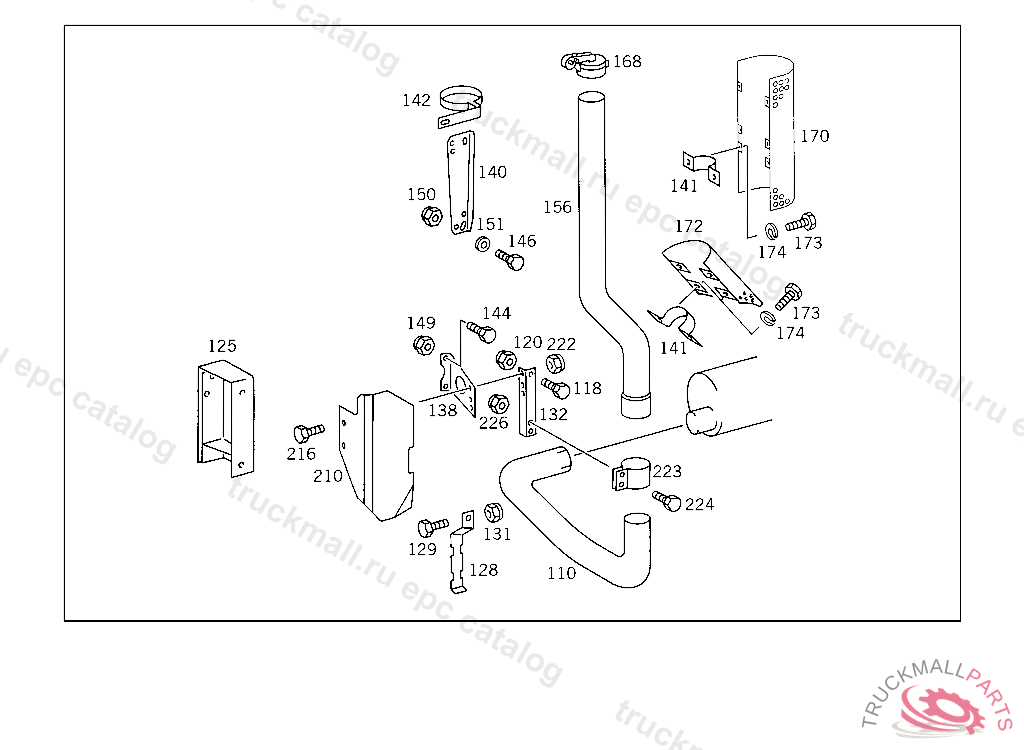

Поз.
Артикул
Описание
110
REAR EXHAUST PIPE FROM CONNECTOR TO EXHAUST MUFFLER
110
REAR EXHAUST PIPE FROM EXHAUST MUFFLER TO CAB REAR PANEL
118
SCREW , Replaced By: N304017008021
118
SCREW PIPE CLAMP
120
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
120
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
120
NUT , Replaced By: N913004008001
125
SUPPORT APPARATUS SUPPORT
128
BRACKET AIR RESERVOIR TO APPARATUS SUPPORT
129
SCREW END PIECE TO EXHAUST PIPE M 10X25
129
SCREW BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233K 027550
131
NUT STRAP TO BRACKET
131
NUT , Replaced By: N910113010000
132
BRACKET TAIL PIPE
138
BRACKET TAIL PIPE
140
BRACKET BRACKET TO CROSS CONNECTION STRUT
141
CLAMP EXHAUST PIPE TO BRACKET
142
BRACKET , Replaced By: A6524903440
142
BRACKET BRACKET TO CROSS CONNECTION STRUT
142
BRACKET BRACKET TO CAB CONSOLE
144
SCREW BRACKET TO SIDE MEMBER
144
SCREW , Replaced By: N304017010002
146
SCREW , Replaced By: N308676014020
146
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
149
NUT , Replaced By: N910113010000
149
NUT STRAP TO BRACKET
150
NUT BRACKET TO SIDE MEMBER
150
NUT , Replaced By: N910113014001
151
WASHER
156
END PIECE BEHIND CAB,UPWARD
156
REAR EXHAUST PIPE BEHIND CAB,UPWARD
156
REAR EXHAUST PIPE
168
FLAP (RAIN DEFLECTOR)
168
FLAP (RAIN DEFLECTOR)
170
PROTECTIVE PLATE (HEAT SHIELD) 1380 MM
172
PROTECTIVE PLATE (HEAT SHIELD)
172
PROTECTIVE PLATE (HEAT SHIELD)
172
PROTECTIVE PLATE (HEAT SHIELD)
173
HEXAGON HEAD BOLT PROTECTIVE PLATE TO BRACKET
173
SCREW , Replaced By: N304017008008
173
SCREW CLAMP TO BRACKET AND TO PIPE
174
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
210
PROTECTIVE PLATE (HEAT SHIELD)
210
PROTECTIVE PLATE TAIL PIPE,BOTTOM, TO BE ADAPTED DURING ASSEMBLY
216
SCREW BRACKET TO SIDE MEMBER
216
SCREW , Replaced By: N304017010002
222
NUT , Replaced By: N910113010000
222
NUT STRAP TO BRACKET
223
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
223
CLAMP EXHAUST PIPE TO BRACKET
223
CLAMP EXHAUST PIPE
223
CLAMP EXHAUST PIPE TO BRACKET
223
CLAMP , Replaced By: N071555090502
223
CLAMP EXHAUST PIPE TO BRACKET
224
SCREW BRACKET TO SIDE MEMBER
224
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
224
SCREW , Replaced By: N304017008027
224
SCREW , Replaced By: N304017008024
224
SCREW , Replaced By: N304017010002
224
SCREW , Replaced By: N304017012020
224
SCREW END PIECE TO EXHAUST PIPE M 12X30
224
SCREW BRACKET TO EXHAUST PIPE BRACKET
224
SCREW CONSOLE TO SIDE MEMBER
226
NUT SUPPORT TO SIDE MEMBER
226
NUT STRAP TO BRACKET
226
NUT STRAP TO BRACKET
226
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
226
NUT , Replaced By: N910113010000
226
NUT , Replaced By: N910113012003
999
PROTECTIVE PLATE FUEL TANK
999
END PIECE , Replaced By: A6524926714
999
END PIECE
999
END PIECE EXHAUST MUFFLER,LEFT REAR
999
END PIECE
999
END PIECE REAR EXHAUST PIPE,5 298310
999
REAR EXHAUST PIPE TAIL PIPE,FRONT
999
END PIECE LONG,EXHAUST MUFFLER,RIGHT
999
END PIECE SHORT,EXHAUST MUFFLER,LEFT
999
END PIECE SHORT,EXHAUST MUFFLER,RIGHT
999
END PIECE LONG,EXHAUST MUFFLER,LEFT
999
END PIECE EXHAUST MUFFLER,LEFT AND RIGHT
999
END PIECE EXHAUST MUFFLER,RIGHT REAR
999
END PIECE EXHAUST MUFFLER,RIGHT REAR
999
BRACKET EXHAUST PIPE TO SUPPORT
999
BRACKET , Replaced By: A6524921441
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 468858
999
BRACKET TAIL PIPE,FRONT
999
REAR EXHAUST PIPE TAIL PIPE,FRONT
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 468858
999
BRACKET , Replaced By: A6524920741
999
REAR EXHAUST PIPE (TAIL PIPE)
999
REAR EXHAUST PIPE LONG,EXHAUST MUFFLER,RIGHT
999
REAR EXHAUST PIPE SHORT,EXHAUST MUFFLER,LEFT
999
REAR EXHAUST PIPE LONG,EXHAUST MUFFLER,RIGHT
999
BRACKET TAIL PIPE TO SIDE MEMBER
999
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
999
END PIECE LEFT
999
END PIECE RIGHT
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 468859
999
END PIECE EXHAUST MUFFLER,LEFT REAR
999
END PIECE EXHAUST MUFFLER,RIGHT REAR
999
END PIECE (TAIL PIPE),K 035523
999
PROTECTIVE PLATE , NOT USED
999
END PIECE (TAIL PIPE),K 035523
999
BRACKET
999
BRACKET EXHAUST PIPE TO FENDER
999
BRACKET TAIL PIPE, TO BE ADAPTED DURING ASSEMBLY
999
BRACKET TAIL PIPE TO SIDE MEMBER
999
END PIECE TAIL PIPE TO EXHAUST MUFFLER
999
END PIECE (TAIL PIPE)
999
END PIECE ,5 765949
999
END PIECE
999
END PIECE
999
BRACKET TAIL PIPE TO APPARATUS SUPPORT
999
END PIECE (TAIL PIPE),5 5644795 758825
999
END PIECE (TAIL PIPE),5 5975185 758825
999
END PIECE (TAIL PIPE),5 5975185 758825
999
END PIECE (TAIL PIPE),5 5644795 758825
999
BRACKET ,5 768419, Replaced By: A3464910441
999
BRACKET EXHAUST PIPE TO SIDE MEMBER,K 035197
999
BRACKET TAIL PIPE TO SIDE MEMBER
999
BRACKET BRACKET TO SPRING FRONT BRACKET,5 943736K 035522
999
BRACKET TAIL PIPE TO SIDE MEMBER
999
END PIECE BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233
999
END PIECE (TAIL PIPE)
999
BRACKET TAIL PIPE
999
BRACKET PROTECTIVE PLATE TO SUPPORT
999
PROTECTIVE PLATE (HEAT SHIELD)
