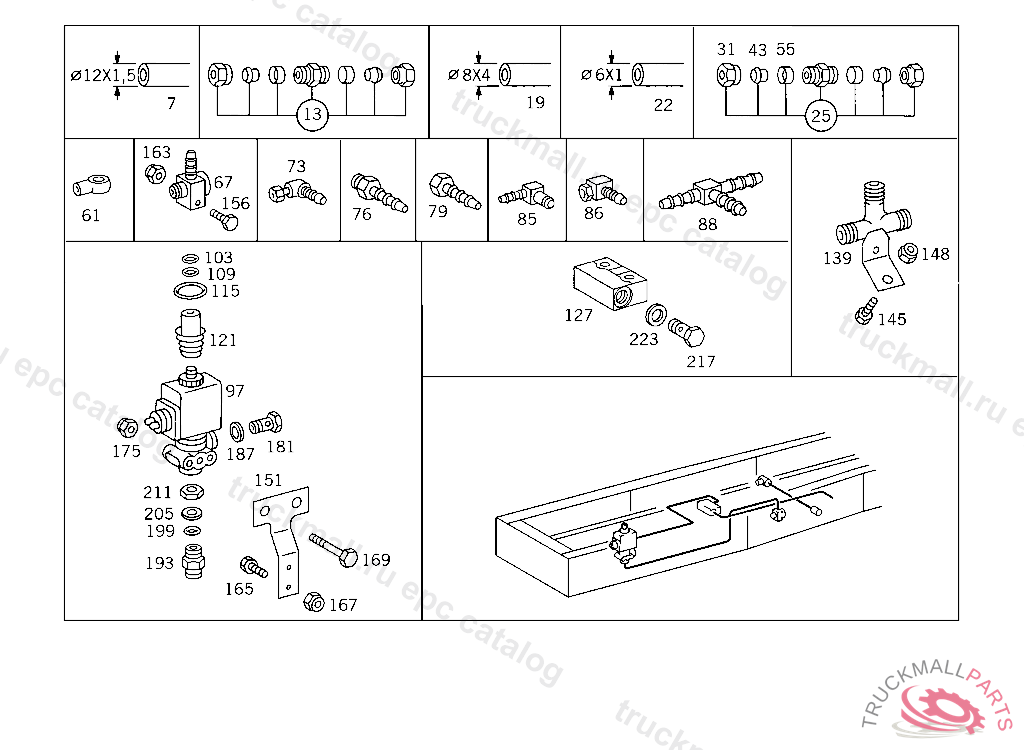

Поз.
Артикул
Описание
7
HOSE , Replaced By: A0009872827
7
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
13
FITTING (PARTS KIT),LINE RUPTURE
19
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
22
PLASTIC PIPE RISING PIPE 4X6 MM
22
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
25
FITTING (PARTS KIT),LINE RUPTURE
31
UNION NUT
31
UNION NUT LINE CONNECTION
43
GLAND LINE CONNECTION
43
GLAND , Replaced By: A0019901667
43
SEAL CONE
55
SLEEVE LINE CONNECTION
61
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
61
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
61
BANJO UNION , Replaced By: N000000000364
61
BANJO UNION HEATING CONNECTION,K 169122
61
BANJO UNION HOSE WIDTH, / I.D., 4/14 MM,K 169123
67
CONNECTOR DISTRIBUTOR MIDDLE, COMPRESSED AIR LINE PLUG CONNECTION, WITH THROTTLE
73
ELBOW FITTING 3/2-WAY VALVE BREATHING
76
FITTING
79
PLUG 3/2-WAY VALVE BREATHING
85
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
86
ELBOW FITTING. T-FITTING LINE CONNECTION TO ENGINE TO M16
88
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
97
VALVE (3/2-WAY SOLENOID VALVE) WABCO
103
SEAL RINGWABCO
109
SEAL RINGWABCO
115
SEAL RINGWABCO
121
VALVE PARTWABCO
127
VALVE SHUTTLE VALVE, REPAIR IMPOSSIBLE
139
T-FITTING FITTING,5 461950
139
BRACKET , Replaced By: A0009901070
139
BRACKET , Replaced By: A0009901070
145
SCREW , Replaced By: N304017008016
145
SCREW , Replaced By: N304017008021
145
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
145
SCREW PIPE CLAMP
148
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
148
NUT , Replaced By: N913004008001
151
BRACKET , Replaced By: A6454312140
151
BRACKET 3/2-WAY SOLENOID VALVE
151
BRACKET 3/2-WAY SOLENOID VALVE
156
SCREW DELIVERY AND SUCTION LINES TO ENGINE, FRONT M 6X35
163
NUT , Replaced By: N913004006001
163
NUT PUMP TO BRACKET
165
SCREW BRACKET TO SIDE MEMBER
165
SCREW , Replaced By: N304017012020
165
SCREW , Replaced By: N304017010002
165
SCREW BRACKET TO LEFT SIDE MEMBER
165
SCREW END PIECE TO EXHAUST PIPE M 12X30
167
NUT END PIECE TO EXHAUST PIPE
167
NUT , Replaced By: N910113010000
167
NUT STRAP TO BRACKET
167
NUT BRACKET TO SIDE MEMBER
169
SCREW VALVE TO BRACKET M 8X55
169
SCREW , Replaced By: N304017008043
175
NUT , Replaced By: N913004008001
175
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
181
HOLLOW SCREW HEATING CONNECTION
187
SEAL RING LINE CONNECTION
193
FITTING LINE CONNECTION
199
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
205
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
205
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
211
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
217
HOLLOW SCREW , Replaced By: N915036010108
217
HOLLOW SCREW FUEL LINE TO FEED PUMP
223
SEAL RING FUEL LINE TO FEED PUMP
999
FITTING , Replaced By: A0029905971
