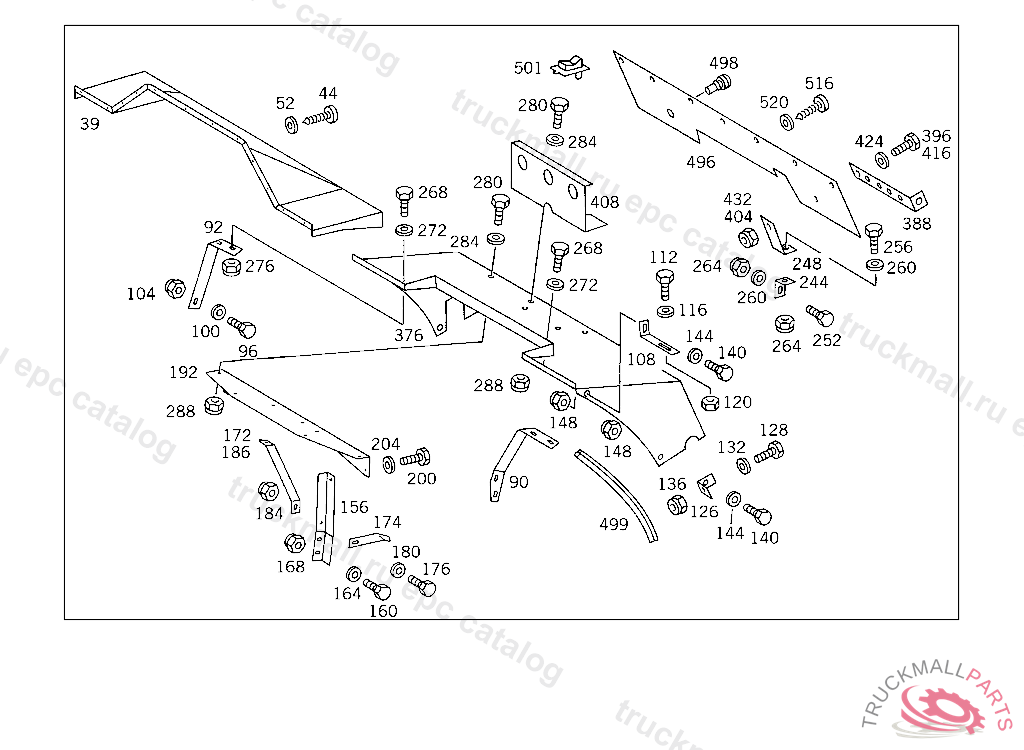

Поз.
Артикул
Описание
39
COVERING CHASSIS
39
ANTINOISE CAPSULE CHASSIS
44
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
44
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
52
WASHER COVERING TO CAB
52
WASHER COMPRESSED AIR LINE TO BRACKET
52
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
52
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
52
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
90
BRACKET RIGHT
90
BRACKET LEFT
90
BRACKET RIGHT
90
BRACKET LEFT
92
BRACKET LEFT FENDER,5 385157
92
BRACKET RIGHT FENDER,5 385158
92
BRACKET RIGHT FENDER,5 385157
92
BRACKET LEFT FENDER,5 385158
96
SCREW , Replaced By: N304017008018
96
SCREW SUPPORT TO FENDER
96
SCREW END PIECE TO EXHAUST PIPE M 10X25
100
WASHER BRACKET TO LEFT SIDE MEMBER
100
WASHER RADIATOR TO RUBBER MOUNTING
100
WASHER , Replaced By: N000125010532
100
WASHER , Replaced By: N009021008213
104
NUT , Replaced By: N910113010000
104
NUT , Replaced By: N913004008001
104
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
104
NUT STRAP TO BRACKET
108
BRACKET FENDER
112
SCREW BRACKET TO CROSS CONNECTION STRUT
112
SCREW , Replaced By: N304017008034
116
WASHER , Replaced By: N000125008443
116
WASHER EXHAUST MUFFLER TO STRAP
120
NUT , Replaced By: N913004008001
120
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
126
BRACKET BRACKET TO CROSS MEMBER
128
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
128
SCREW , Replaced By: N304017008027
128
SCREW REAR EXHAUST PIPE TO MUFFLER
132
WASHER EXHAUST MUFFLER TO STRAP
132
WASHER , Replaced By: N000125008443
132
WASHER , Replaced By: N000125010532
132
WASHER RADIATOR TO RUBBER MOUNTING
136
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
136
NUT STRAP TO BRACKET
136
NUT , Replaced By: N913004008001
136
NUT , Replaced By: N910113010000
140
SCREW , Replaced By: N304017008021
140
SCREW PIPE CLAMP
144
WASHER , Replaced By: N000125008443
144
WASHER EXHAUST MUFFLER TO STRAP
148
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
148
NUT , Replaced By: N913004008001
156
MOUNTING ANGLE LEFT,5 385157
156
MOUNTING ANGLE RIGHT,5 385157
156
MOUNTING ANGLE LEFT,5 385158
156
MOUNTING ANGLE RIGHT
160
SCREW BRACKET TO CAB MOUNTING CONSOLE
160
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
164
WASHER , Replaced By: N000125015019
164
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
168
NUT BRACKET TO SIDE MEMBER
172
STIFFENING LEFT,5 385157
172
BRACKET (BRACING)
172
BRACKET (BRACING)
172
STIFFENING RIGHT,5 385157
174
BRACKET LEFT
174
BRACKET RIGHT,5 385158
176
SCREW BRACKET TO SIDE MEMBER
176
SCREW PIPE CLAMP
176
SCREW BRACKET TO CROSS CONNECTION STRUT
176
SCREW END PIECE TO EXHAUST PIPE M 10X25
176
SCREW , Replaced By: N304017008021
176
SCREW , Replaced By: N304017008034
176
SCREW , Replaced By: N304017010002
180
WASHER , Replaced By: N000125008443
180
WASHER , Replaced By: N000125010532
180
WASHER EXHAUST MUFFLER TO STRAP
180
WASHER RADIATOR TO RUBBER MOUNTING
184
NUT STRAP TO BRACKET
184
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
184
NUT , Replaced By: N913004008001
184
NUT , Replaced By: N910113010000
186
BRACKET (BRACING)
192
MOUNTING ANGLE COVERING, TO BE ADAPTED DURING ASSEMBLY
192
MOUNTING ANGLE , Replaced By: A6205240210
192
MOUNTING ANGLE , Replaced By: A6205240210
200
SCREW , Replaced By: N304017008034
200
SCREW BRACKET TO CROSS CONNECTION STRUT
204
WASHER BRACKET TO LEFT SIDE MEMBER
204
WASHER , Replaced By: N000125008443
204
WASHER , Replaced By: N009021008213
204
WASHER EXHAUST MUFFLER TO STRAP
244
BRACKET FUEL LINES TO TRANSMISSION
244
BRACKET , Replaced By: A6205240340
244
BRACKET COVERING,5 736351
244
BRACKET COVERING
244
BRACKET COVERING, TO BE ADAPTED DURING ASSEMBLY
244
BRACKET COVERING
244
BRACKET LEFT
244
BRACKET , Replaced By: A6555240040
244
BRACKET , Replaced By: A6555240040
244
BRACKET , Replaced By: A6735460243
248
BRACKET COVERING
252
SCREW REAR EXHAUST PIPE TO MUFFLER
256
SCREW REAR EXHAUST PIPE TO MUFFLER
256
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
256
SCREW END PIECE TO EXHAUST PIPE M 10X25
260
WASHER RADIATOR TO RUBBER MOUNTING
260
WASHER BRACKET TO FRAME
260
WASHER , Replaced By: N000125010532
264
NUT , Replaced By: N910113010000
264
NUT , Replaced By: N913004008001
264
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
264
NUT STRAP TO BRACKET
268
SCREW PIPE CLAMP
268
SCREW , Replaced By: N304017008021
272
WASHER , Replaced By: N000125008443
272
WASHER EXHAUST MUFFLER TO STRAP
276
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
276
NUT , Replaced By: N913004008001
280
SCREW , Replaced By: N304017010002
280
SCREW BRACKET TO SIDE MEMBER
284
WASHER RADIATOR TO RUBBER MOUNTING
284
WASHER , Replaced By: N000125010532
288
NUT , Replaced By: N910113010000
288
NUT STRAP TO BRACKET
376
ANTINOISE CAPSULE CHASSIS,5 385157
376
ANTINOISE CAPSULE CHASSIS,5 385158
388
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
388
BRACKET COVERING, TO BE ADAPTED DURING ASSEMBLY
388
BRACKET , Replaced By: A3604292940
388
BRACKET , Replaced By: A3184923641
388
BRACKET , Replaced By: A3184923441
396
SCREW , Replaced By: A0079900801
396
SCREW , Replaced By: N304017008034
396
SCREW , Replaced By: N304017008018
396
SCREW , Replaced By: N304017008016
396
SCREW , Replaced By: N304017008021
396
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
396
SCREW REDUCTION VALVE TO BRACKET
396
SCREW PIPE CLAMP
396
SCREW SUPPORT TO FENDER
396
SCREW BRACKET TO CROSS CONNECTION STRUT
404
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
404
NUT , Replaced By: N913004008001
408
BRACKET , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. 5 592740, Replaced By: A6204290168
408
BRACKET COVERING
416
SCREW BRACKET TO CROSS CONNECTION STRUT
416
SCREW PIPE CLAMP
416
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
416
SCREW , Replaced By: N304017008016
416
SCREW , Replaced By: N304017008021
416
SCREW , Replaced By: N304017008034
424
WASHER , Replaced By: N009021008213
424
WASHER , Replaced By: N000125008443
424
WASHER BRACKET TO LEFT SIDE MEMBER
424
WASHER EXHAUST MUFFLER TO STRAP
432
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
432
NUT , Replaced By: N913004008001
496
ANTINOISE CAPSULE REAR
496
COVERING , Replaced By: A6175204424
496
COVERING REAR
498
RUBBER BUFFER REAR
499
SEAL COVER PLATE, TO BE ADAPTED DURING ASSEMBLY
499
SEAL , Replaced By: A6455240492
501
BRACKET RUBBER BUFFER TO BRACKET
516
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
520
WASHER COMPRESSED AIR LINE TO BRACKET
520
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
RUBBER BUFFER , NOT USED
999
SUPPORT TWO-CIRCUIT BRAKE LINE COUPLING, Replaced By: A3874321016
999
SUPPORT , Replaced By: A3874320916
999
SUPPORT TWO-CIRCUIT BRAKE LINE COUPLING
999
SUPPORT , Replaced By: A6214320116
999
BRACKET MANUAL PUMP
999
BRACKET COVERING
999
COVERING CHASSIS
999
BRACKET LEFT
999
BRACKET RIGHT
999
ANGLE LEFT
999
SUPPORT BRAKE LINE COUPLINGS
999
ANGLE RIGHT
999
COVERING CHASSIS,5 736351
999
COVERING CHASSIS
999
BRACKET HAND PUMP
999
FLAP CHASSIS
999
COVERING CHASSIS
999
COVERING CHASSIS
999
COVERING CHASSIS
999
COVERING CHASSIS
999
BRACKET BOOT
999
BRACKET CABLE HARNESS MOUNTING
