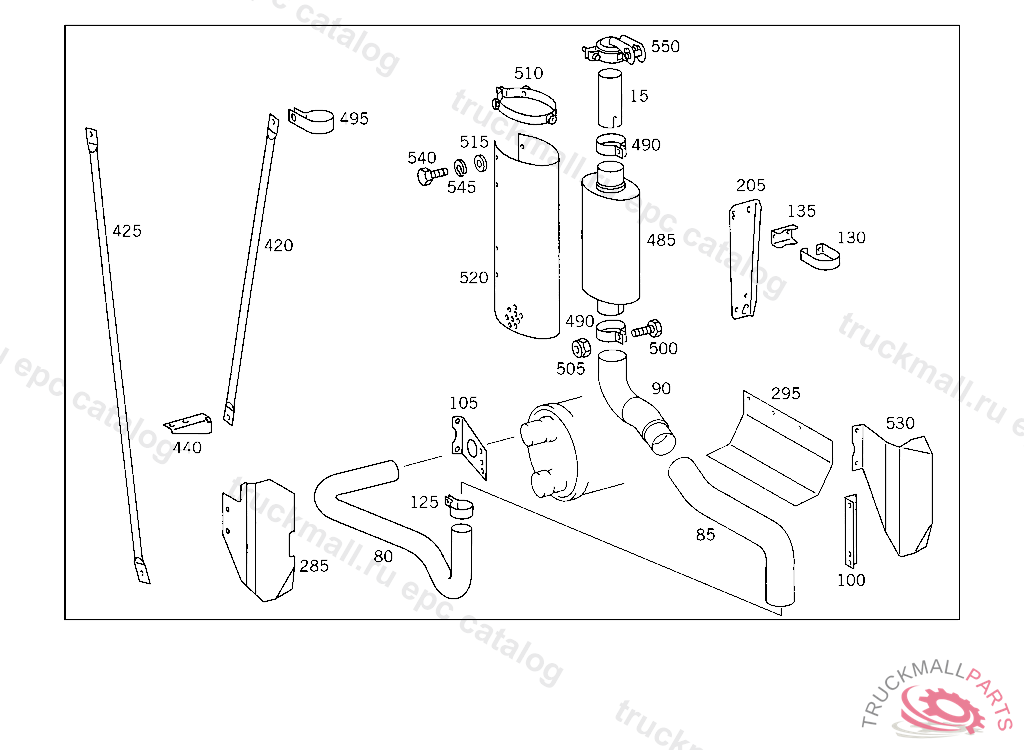

Поз.
Артикул
Описание
15
END PIECE BEHIND CAB,UPWARD
15
END PIECE , Replaced By: A6524928614
80
FRONT EXHAUST PIPE FROM CONNECTOR TO EXHAUST MUFFLER
80
REAR EXHAUST PIPE EXHAUST PIPE TO MUFFLER
80
REAR EXHAUST PIPE EXHAUST PIPE TO MUFFLER
80
FRONT EXHAUST PIPE FROM EXHAUST MUFFLER TO TAIL PIPE
85
CONNECTOR REAR EXHAUST PIPE TO MUFFLER
85
CONNECTOR FROM CONNECTOR TO EXHAUST MUFFLER
85
FRONT EXHAUST PIPE EXHAUST PIPE TO MUFFLER
85
CONNECTOR REAR EXHAUST PIPE TO MUFFLER
90
EXHAUST PIPE EXHAUST PIPE TO MUFFLER
100
BRACKET TAIL PIPE
105
BRACKET TAIL PIPE
105
BRACKET , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6194920641
125
CLAMP , Replaced By: A6554920340
125
CLAMP , Replaced By: N071555124501
125
CLAMP EXHAUST PIPE TO BRACKET
125
CLAMP EXHAUST PIPE
125
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
125
CLAMP EXHAUST PIPE TO BRACKET
125
CLAMP END PIECE TO EXHAUST PIPE
125
CLAMP EXHAUST PIPE
130
CLAMP EXHAUST PIPE TO BRACKET
135
BASE PLATE BRACKET TO SIDE MEMBER
205
BRACKET BRACKET TO CROSS CONNECTION STRUT
285
PROTECTIVE PLATE (HEAT SHIELD)
295
PROTECTIVE PLATE (HEAT SHIELD)
420
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
425
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
440
BRACKET TAIL PIPE
485
EXHAUST MUFFLER (POSTERIOR MUFFLER)
490
CLAMP EXHAUST PIPE
490
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
490
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
495
CLAMP EXHAUST PIPE TO BRACKET
500
SCREW BRACKET TO SIDE MEMBER
500
SCREW , Replaced By: N304017010002
505
NUT , Replaced By: N910113010000
505
NUT STRAP TO BRACKET
510
CLAMP HEAT SHIELD TO TAILPIPE
515
WASHER RADIATOR TO RUBBER MOUNTING
520
PROTECTIVE PLATE (HEAT SHIELD)
520
PROTECTIVE PLATE , Replaced By: A6504920030
530
PROTECTIVE PLATE (HEAT SHIELD)
540
SCREW CLAMP TO BRACKET AND TO PIPE
540
HEXAGON HEAD BOLT PROTECTIVE PLATE TO BRACKET
540
SCREW , Replaced By: N304017008008
545
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
550
FLAP (RAIN DEFLECTOR)
550
FLAP EXHAUST PIPE
999
CONSOLE EXHAUST PIPE TO SUPPORT
999
BRACKET AT SIDE MEMBER
999
BRACKET VERTICAL TAIL PIPE TO FRAME SIDE MEMBER
999
BRACKET EXHAUST MUFFLER TO CONSOLE
