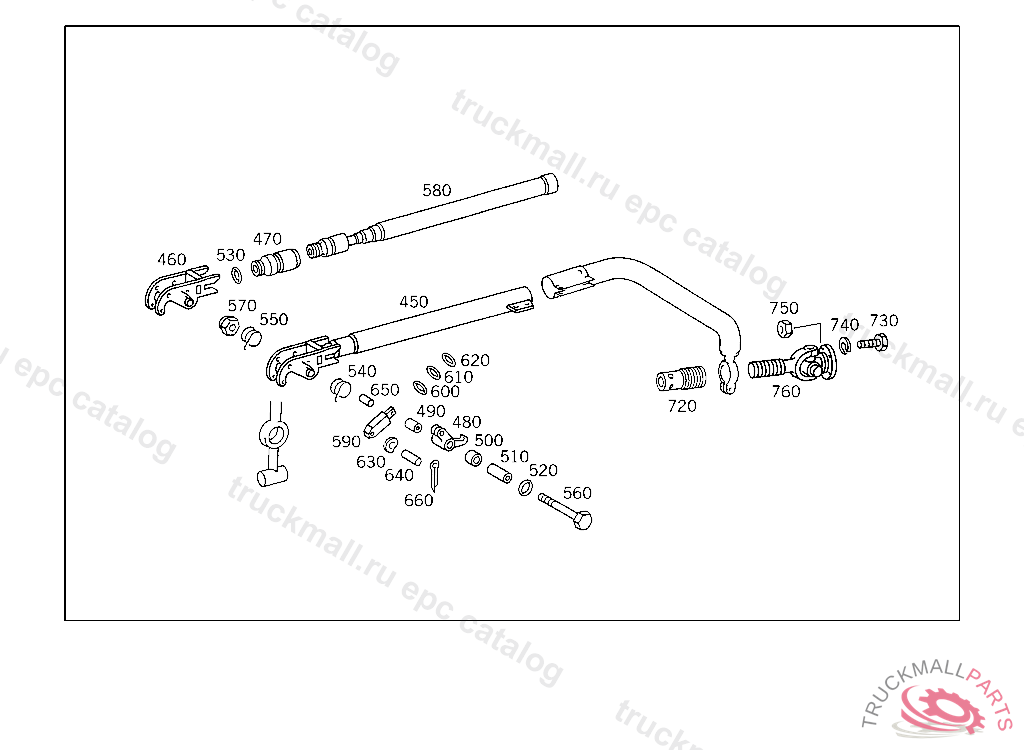

Поз.
Артикул
Описание
450
SHIFTING ROD (TELESCOPIC SHIFTING ROD)
460
ROD END HYDRAULIC RELEASE
470
CONNECTOR REAR SHIFTING ROD TO CONNECTOR
480
PAWL SHIFTING ROD,5 443048
490
BUSHING PAWL TO ROD END,5 443048
500
BUSHING PAWL TO ROD END,5 443048
510
SPACER TUBE SHIFTING ROD TO SHIFT LEVER
520
ROUND CORD RING. SEAL RING ROD END
530
SEAL RING HYDRAULIC RELEASE
540
SPRING ROD END
550
SPRING ROD END
560
SCREW SHIFTING ROD TO SHIFT LEVER
560
SCREW , Replaced By: N000933010192
570
NUT , Replaced By: N910113010000
570
NUT STRAP TO BRACKET
580
SHIFTING TUBE (TELESCOPIC TUBE)
590
SHIFTING CYLINDER HYDRAULIC RELEASE WABCO
590
SHIFTING CYLINDER HYDRAULIC RELEASE TECHNOMATIK
600
SEAL RING PISTON RINGS WABCO
610
SEAL RING SCREW FITTING WABCO
620
SEAL RING OUTSIDE WABCO
630
SPRING WASHER SHIFTING CYLINDER TO YOKE
640
PIN SHIFTING CYLINDER TO YOKE 8X45 MM
650
PIN SHIFTING CYLINDER TO PAWL 8X20 MM
660
COTTER PIN LEVER TO ROD
660
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
720
CONNECTOR , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6172680028
730
SCREW SHIFTING ROD TO TRANSMISSION
740
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
750
NUT SHIFTING TUBE TO TRANSMISSION
760
JOINT SHIFTING ROD TO TRANSMISSION
760
JOINT SHIFTING ROD TO TRANSMISSION
999
SHIFTING ROD
