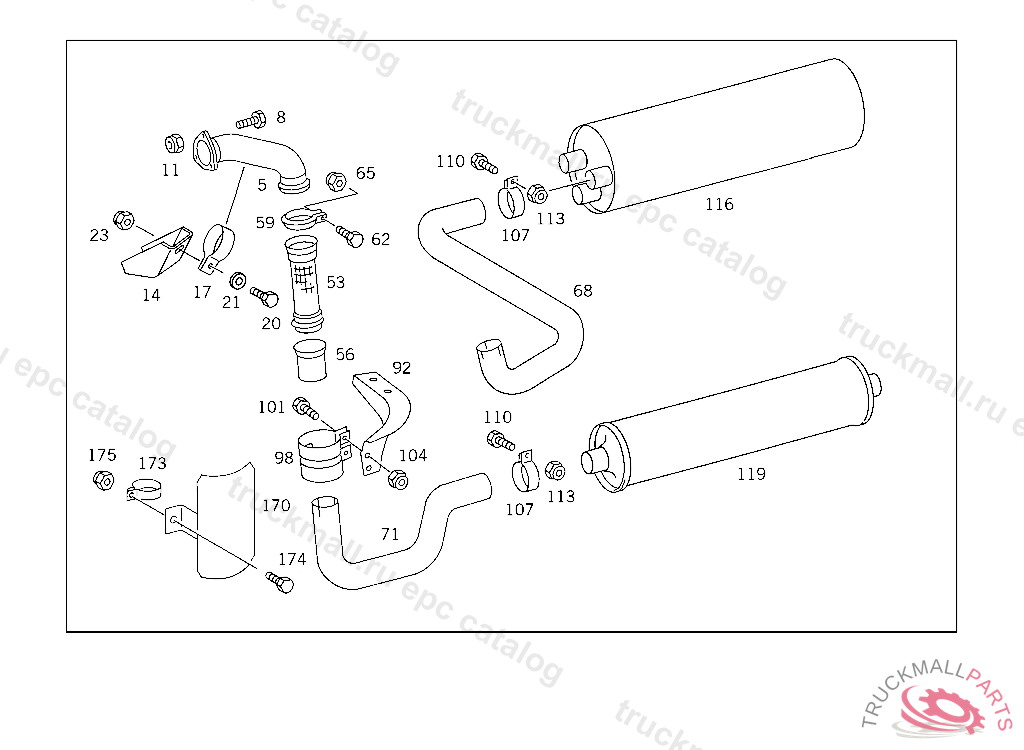

Поз.
Артикул
Описание
5
CONNECTOR RIGHT, UP TO IDENT.: 5 566418 ORDER ADDITIONALLY: 1X 652 491 14 41, 1X 000960 016164
5
CONNECTOR LEFT, UP TO IDENT.: 5 566418 ORDER ADDITIONALLY: 1X 652 491 14 41, 1X 000960 016164
8
SCREW CONNECTOR TO EXHAUST MANIFOLD
11
NUT CONNECTOR TO EXHAUST MANIFOLD
14
BRACKET CONNECTOR
17
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
20
SCREW BRACKET TO SIDE MEMBER
20
SCREW , Replaced By: N304017010002
21
WASHER RADIATOR TO RUBBER MOUNTING
21
WASHER , Replaced By: N000125010532
23
NUT STRAP TO BRACKET
23
NUT , Replaced By: N910113010000
53
FLEXIBLE METAL TUBE CONNECTOR
56
COLLAR EXHAUST LINE FLEXIBLE METAL TUBE
59
CLAMP FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
62
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
62
SCREW , Replaced By: N304017008028
65
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
65
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
65
NUT , Replaced By: N913004008001
71
EXHAUST PIPE FRONT,REAR RIGHT PART
71
EXHAUST PIPE FRONT,REAR LEFT PART
92
BRACKET RIGHT, TO BE ADAPTED DURING ASSEMBLY
92
BRACKET LEFT
98
CLAMP FLEXIBLE METAL TUBE TO EXHAUST PIPE
101
SCREW BRACKET TO SIDE MEMBER
101
SCREW , Replaced By: N304017010002
104
NUT STRAP TO BRACKET
104
NUT , Replaced By: N910113010000
107
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
110
SCREW BRACKET TO SIDE MEMBER
110
SCREW , Replaced By: N304017010002
113
NUT STRAP TO BRACKET
113
NUT , Replaced By: N910113010000
119
EXHAUST MUFFLER
170
PROTECTIVE PLATE FUEL TANK
173
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
174
SCREW BRACKET TO SIDE MEMBER
175
NUT STRAP TO BRACKET
