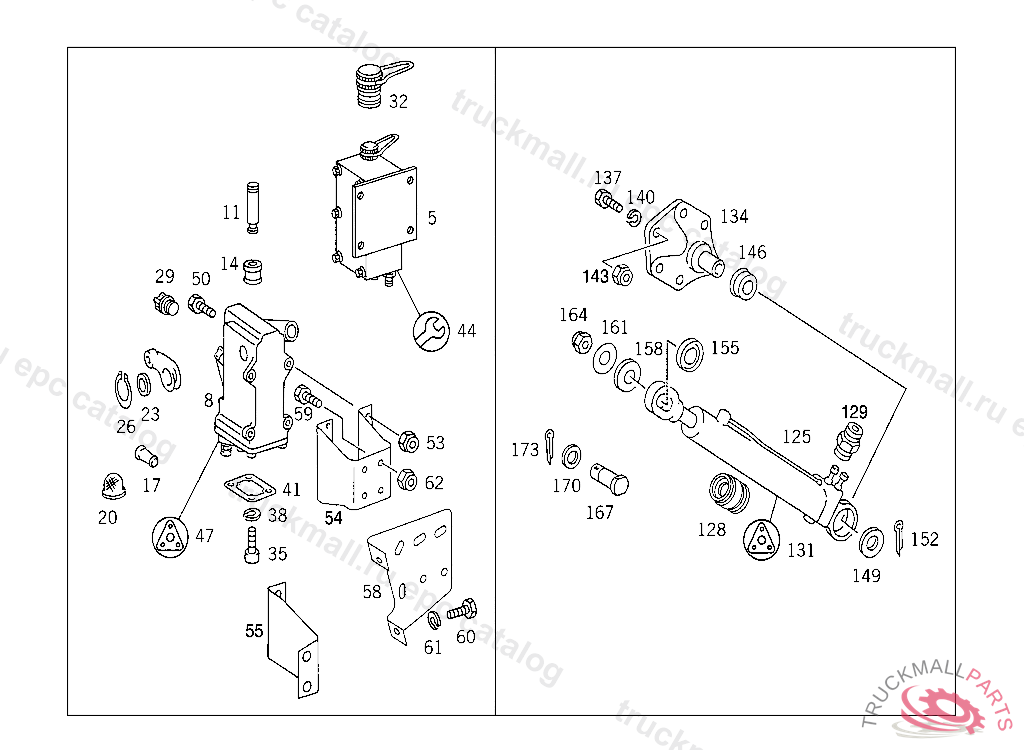

Поз.
Артикул
Описание
5
PUMP (HAND PUMP) POWER PACKER,4 733732
5
PUMP (HAND PUMP) WEBER
5
PUMP (HAND PUMP) POWER PACKER
8
PUMP (HAND PUMP), FOR COMPONENT PARTS SEE SPARE PARTS LIST
8
PUMP (HAND PUMP) WEBER
11
PISTONTO 000 553 89 01
11
PISTONTO 000 553 79 01,WEBER
14
VALVETO 000 553 89 01
14
VALVETO 000 553 79 01,WEBER
17
FILTER
23
FITTED WASHER
26
LOCK RING
29
SCREW
32
SCREWTO 000 553 65 01,000 553 69 01,
35
SCREW
35
SCREW , Replaced By: N000000000190
38
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
44
REPAIR KIT HAND PUMP TO 000 553 65 01,000 553 69 01,
47
GASKET KIT HAND PUMP
50
SCREW BRACKET TO SIDE MEMBER
50
SCREW , Replaced By: N304017010002
53
NUT STRAP TO BRACKET
53
NUT , Replaced By: N910113010000
54
BRACKET HAND PUMP
55
BRACKET HAND PUMP
59
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
59
SCREW , Replaced By: N308676014020
62
NUT BRACKET TO SIDE MEMBER
62
NUT , Replaced By: N910113014001
125
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING WEBER
125
CYLINDER , Replaced By: A0015533505
125
CYLINDER , Replaced By: A0015539505
125
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING WEBER
128
GUIDEWEBER
129
FITTINGWEBER,TO 001 553 35 05
131
GASKET KIT HYDRAULIC CYLINDER POWER PACKER
131
GASKET KIT HYDRAULIC CYLINDER WEBER
134
BEARING BRACKET HYDRAULIC CYLINDER
137
SCREW BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233K 027550
137
SCREW BEARING BRACKET TO FRAME
137
SCREW , Replaced By: N000961012051
146
BUSHING HYDRAULIC CYLINDER TO BEARING BRACKET
149
WASHER HYDRAULIC CYLINDER TO CAB
152
COTTER PIN6,3X36 MM
155
WASHER HYDRAULIC CYLINDER TO CAB
158
WASHER HYDRAULIC CYLINDER TO CAB
161
WASHER HYDRAULIC CYLINDER TO CAB
164
NUT COMBINATION CYLINDER TO BEARING BRACKET
164
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
999
BRACKET HAND PUMP
