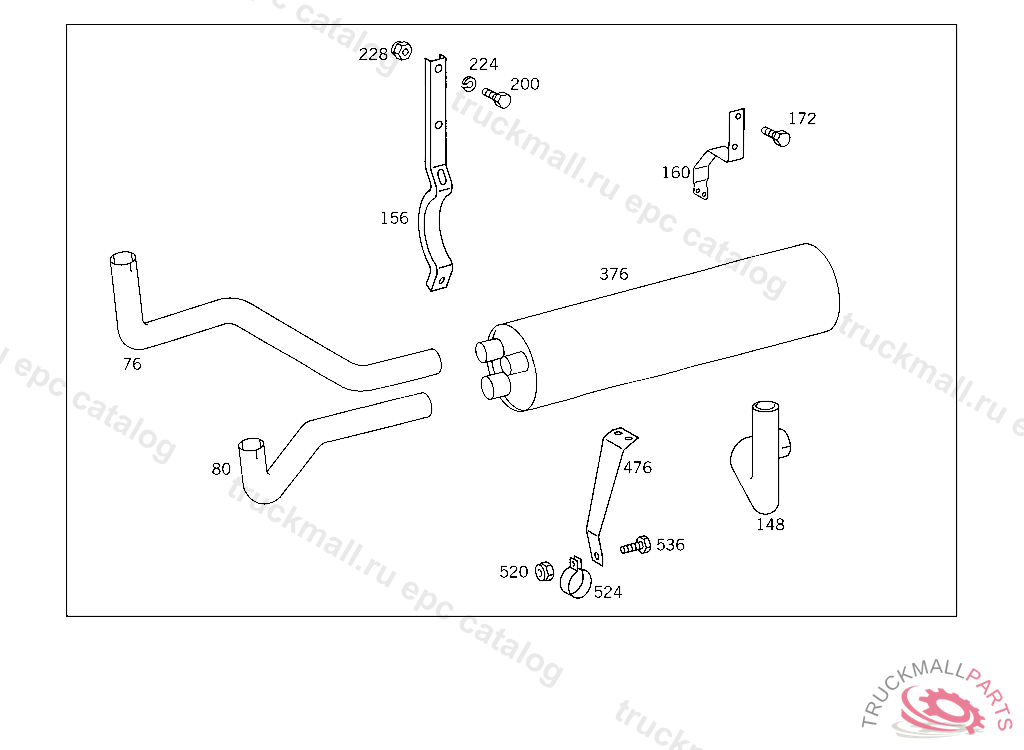

Поз.
Артикул
Описание
76
EXHAUST PIPE FRONT RIGHT
80
EXHAUST PIPE FRONT LEFT
148
CONNECTOR
156
BRACKET EXHAUST MUFFLER
156
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6524903740
160
BRACKET EXHAUST MUFFLER,REAR
172
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
200
SCREW FRONT SPRING REAR BRACKET TO CROSS MEMBER
224
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
228
NUT BRACKET TO SIDE MEMBER
228
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
228
NUT , Replaced By: N910113014001
228
NUT , Replaced By: N910113012003
376
EXHAUST MUFFLER
476
BRACKET TAIL PIPE TO APPARATUS SUPPORT
520
NUT STRAP TO BRACKET
520
NUT , Replaced By: N910113010000
524
CLAMP EXHAUST PIPE
536
SCREW BRACKET TO SIDE MEMBER
536
SCREW , Replaced By: N304017010002
999
PROTECTIVE PLATE FUEL TANK
999
CLAMP EXHAUST PIPE TO BRACKET
999
CONNECTOR FRONT,5 955117K 110091
999
CONNECTOR FRONT,K 110092
999
BRACKET BRACKET TO CROSS MEMBER
999
BRACKET BRACKET TO CROSS MEMBER
999
CLAMP EXHAUST PIPE TO BRACKET
999
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
999
CLAMP EXHAUST PIPE TO BRACKET
999
EXHAUST PIPE FRONT,REAR PART,5 564479
999
EXHAUST PIPE EXHAUST MUFFLER,RIGHT FRONT
999
EXHAUST PIPE FRONT,REAR LEFT PART,5 468859
999
EXHAUST PIPE FRONT,REAR RIGHT PART,5 468859
999
EXHAUST PIPE FRONT,REAR PART
999
EXHAUST PIPE FRONT
999
EXHAUST PIPE FRONT
999
BRACKET EXHAUST MUFFLER TO SIDE MEMBER, TO BE ADAPTED DURING ASSEMBLY
999
BRACKET ,5 765950, Replaced By: A6174911841
999
END PIECE (TAIL PIPE)
999
BASE PLATE BRACKET TO SIDE MEMBER
999
END PIECE TAIL PIPE,FRONT,K 027551
999
CLAMP EXHAUST PIPE TO BRACKET
999
REAR EXHAUST PIPE FROM CONNECTOR TO EXHAUST MUFFLER
999
END PIECE (TAIL PIPE)
999
END PIECE (TAIL PIPE),K 035523
999
END PIECE (TAIL PIPE),K 035523
999
BRACKET
999
CONNECTOR ,5 957691
999
END PIECE
999
END PIECE
999
BRACKET
999
END PIECE LEFT
999
END PIECE (TAIL PIPE)
999
BRACKET EXHAUST PIPE TO SIDE MEMBER,5 953233K 035196
999
BRACKET BRACKET TO SPRING FRONT BRACKET,5 943736K 035522
999
END PIECE BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233
999
EXHAUST PIPE FRONT
999
END PIECE (TAIL PIPE)
999
END PIECE
999
MOUNTING BRACKET TO CAB
999
BRACKET INTERMEDIATE PIECE TO FRAME
999
SCREW EXHAUST PIPE TO BRACKET
999
SCREW BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233K 027550
