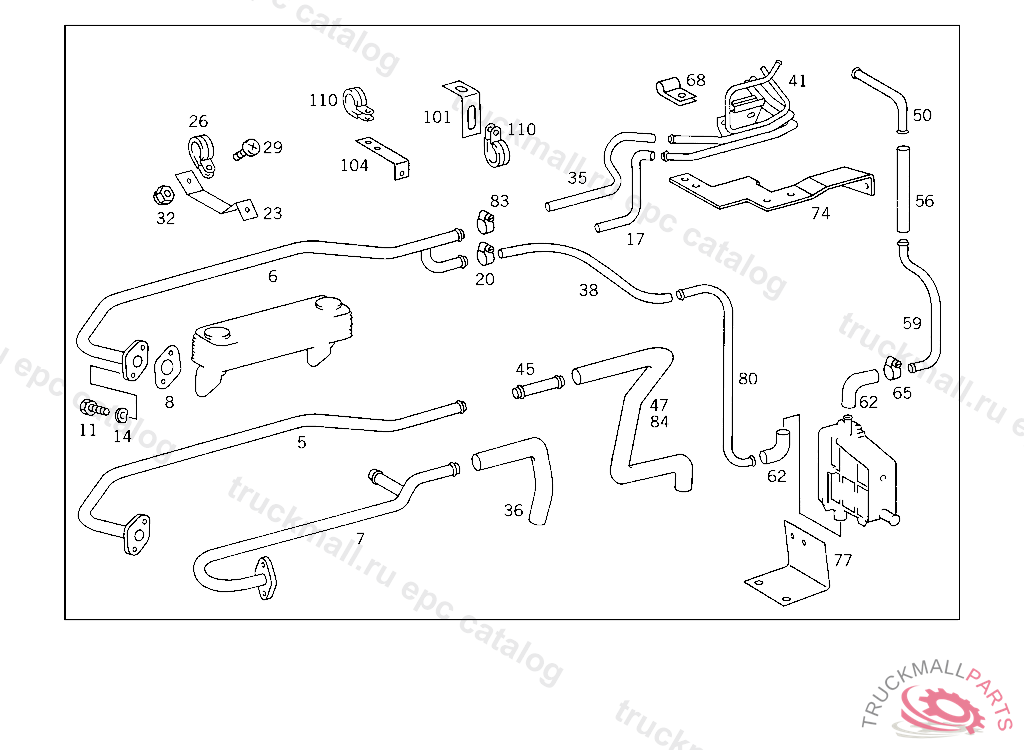

Поз.
Артикул
Описание
5
LINE HEATING WATER
5
LINE HEATING WATER
6
PIPE HEATING WATER
6
LINE HEATING WATER
7
LINE HEATING WATER
8
GASKET HEATING PIPE TO ENGINE
11
SCREW BRACKET TO BRACKET
11
SCREW , Replaced By: N910142008001
14
SPRING WASHER , Replaced By: N000137008212
14
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
17
HOSE (HEATING LINE),FROM ENGINE TO HEATER
20
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
20
CLAMP , Replaced By: N000000000667
23
BRACKET HEATING PIPE TO ENGINE
26
CLAMP BRAKE HOSE BRACKET
29
SCREW CLAMP MOUNTING M 6X16
29
SCREW , Replaced By: N000000001146
32
NUT , Replaced By: N913004006001
32
NUT PUMP TO BRACKET
35
HOSE (HEATING LINE),FROM ENGINE TO HEATER
35
HOSE FROM VALVE TO FEED LINE,K 004003
36
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR
36
HOSE , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6525012482
38
HOSE FROM BUBBLE SEPARATOR TO HEATING PIPE 18X27 MM, ORDER BY THE METER
41
LINE HEATING AND BREATHING
45
PIPE FITTING TO PREHEATER
47
HOSE (HEATING LINE),FROM ENGINE TO HEATER
47
HOSE (HEATING LINE),FROM ENGINE TO HEATER
50
PIPE FITTING TO PREHEATER
50
PIPE , Replaced By: A0005516456
50
PIPE , Replaced By: A0005516456
56
HOSE FROM BUBBLE SEPARATOR TO HEATING PIPE 18X27 MM, ORDER BY THE METER
59
PIPE , Replaced By: A0005516456
62
HOSE FROM FLANGE TO VALVE
65
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
65
CLAMP , Replaced By: N000000000667
65
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
68
CLAMP FEED LINE TO THERMOSTAT
74
BRACKET LINE TO RADIATOR
77
BRACKET PREHEATER
80
PIPE , Replaced By: A0005516456
83
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
83
CLAMP , Replaced By: N000000000667
84
HOSE (HEATING LINE),FROM ENGINE TO HEATER
101
BRACKET FUEL LINE TO BELL HOUSING
104
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
110
CLAMP COOLING WATER LINE TO FIRE WALL
110
CLAMP BRAKE HOSE BRACKET
999
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
999
TUBE FEED AND RETURN LINES TO OIL COOLER, LENGTH AVAILABLE 3000 MM
999
PIPE , Replaced By: A0005516456
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE, TO BE ADAPTED DURING ASSEMBLY
999
LINE HEATING WATER DISTRIBUTOR
999
COOLING WATER LINE , Replaced By: A0005516256
999
SCREW , Replaced By: N304017008021
999
SCREW PIPE CLAMP
