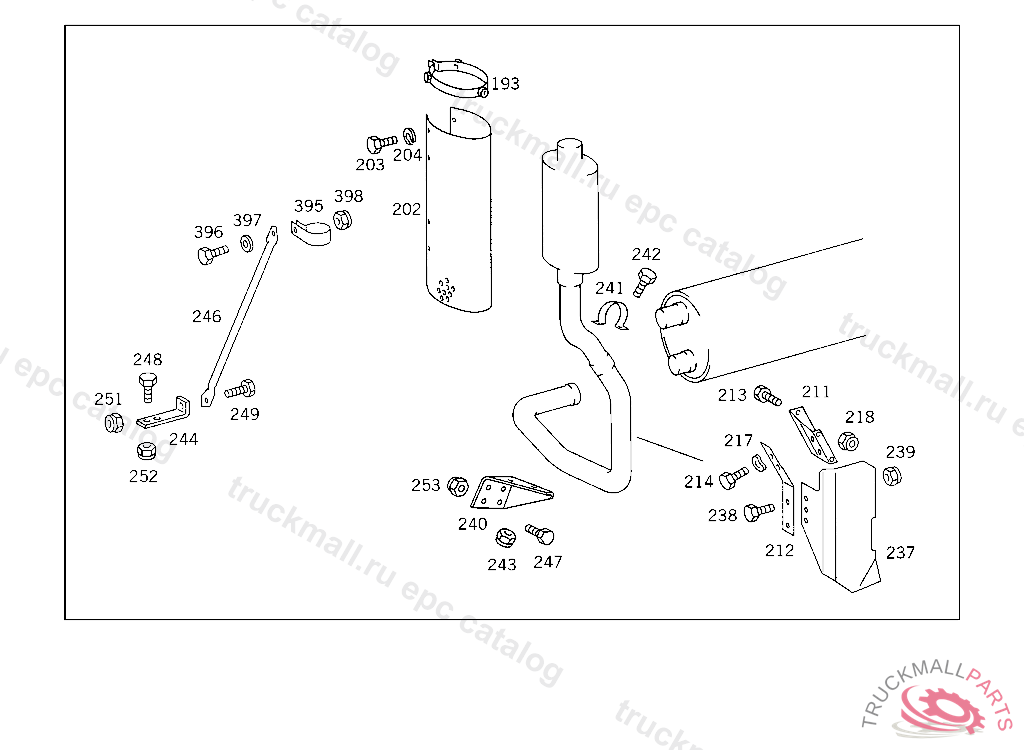

Поз.
Артикул
Описание
193
CLAMP HEAT SHIELD TO TAILPIPE
202
PROTECTIVE PLATE (HEAT SHIELD)
202
PROTECTIVE PLATE , Replaced By: A6504920030
203
SCREW CLAMP TO BRACKET AND TO PIPE
203
HEXAGON HEAD BOLT PROTECTIVE PLATE TO BRACKET
203
SCREW PROTECTIVE PLATE TO CLAMP
203
SCREW , Replaced By: N304017008008
204
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
211
BRACKET AT SIDE MEMBER
212
BRACKET EXHAUST PIPE SUSPENSION
213
HEXAGON HEAD BOLT. SCREW BRACKET TO CONSOLE
213
SCREW , Replaced By: N910105014010
214
SCREW , Replaced By: N910142008009
214
SCREW CLAMP TO BRACKET,5 597426
217
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
217
SPRING WASHER , Replaced By: N000137008212
218
NUT BRACKET TO SIDE MEMBER
237
PROTECTIVE PLATE TAIL PIPE,BOTTOM, TO BE ADAPTED DURING ASSEMBLY
238
SCREW BRACKET TO BRACKET
238
SCREW , Replaced By: N910142008001
239
NUT BRACKET TO BRACKET
240
BRACKET VERTICAL TAIL PIPE BEHIND CAB
241
CLAMP VERTICAL TAIL PIPE BEHIND CAB
242
SCREW BRACKET TO BRACKET
242
SCREW , Replaced By: N910142008001
243
NUT BRACKET TO BRACKET
244
BRACKET BRACKET TO CAB MOUNTING CONSOLE
246
BRACKET TAIL PIPE BRACKET
246
BRACKET TAIL PIPE BRACKET
247
HEXAGON HEAD BOLT BRACKET TO BEARING BRACKET M12X35
247
SCREW , Replaced By: N910105012025
248
SCREW VERTICAL TAIL PIPE BEHIND CAB
249
SCREW END PIECE TO EXHAUST PIPE M 10X25
251
NUT , Replaced By: N913023010002
251
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
252
NUT BRACKET TO SIDE MEMBER
253
NUT BRACKET TO BEARING BRACKET
395
CLAMP EXHAUST PIPE TO BRACKET
395
CLAMP , Replaced By: A6454921140
395
CLAMP EXHAUST PIPE TO BRACKET
396
SCREW EXHAUST PIPE TO SIDE MEMBER
397
WASHER RADIATOR TO RUBBER MOUNTING
397
WASHER , Replaced By: N000125010532
398
NUT , Replaced By: N913023010002
398
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
999
PROTECTIVE PLATE FUEL TANK
999
REAR EXHAUST PIPE
999
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
999
SUPPORT TAIL PIPE
999
END PIECE EXHAUST MUFFLER,LEFT REAR
999
END PIECE BEHIND CAB,UPWARD
999
END PIECE ,5 193595
999
END PIECE REAR EXHAUST PIPE,5 298310
999
BRACKET TAIL PIPE
999
BRACKET TAIL PIPE
999
PROTECTIVE PLATE (HEAT SHIELD)
999
BRACKET FRONT EXHAUST MUFFLER
999
BRACKET EXHAUST MUFFLER SUSPENSION
999
REAR EXHAUST PIPE TAIL PIPE,FRONT
999
REAR EXHAUST PIPE FROM LEFT EXHAUST MUFFLER TO CONNECTION FITTING
999
END PIECE LONG,EXHAUST MUFFLER,RIGHT
999
END PIECE SHORT,EXHAUST MUFFLER,LEFT
999
END PIECE LONG,EXHAUST MUFFLER,RIGHT
999
END PIECE SHORT,EXHAUST MUFFLER,LEFT
999
END PIECE LONG,EXHAUST MUFFLER,LEFT
999
CONNECTOR BOTTOM,5 193595
999
BRACKET , Replaced By: A6164920241
999
END PIECE SHORT,EXHAUST MUFFLER,RIGHT
999
END PIECE LONG,EXHAUST MUFFLER,LEFT
999
END PIECE , Replaced By: A6524926914
999
END PIECE BEHIND CAB,UPWARD
999
END PIECE EXHAUST MUFFLER,LEFT AND RIGHT
999
END PIECE EXHAUST MUFFLER,RIGHT REAR
999
END PIECE EXHAUST MUFFLER,RIGHT REAR
999
END PIECE
999
BRACKET
999
END PIECE
999
BRACKET TAIL PIPE
999
BRACKET , Replaced By: A6524921441
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 468858
999
REAR EXHAUST PIPE TAIL PIPE,FRONT
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 193595
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 468858
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 193595
999
BRACKET HEAT SHIELD TO FRAME
999
BRACKET TAIL PIPE TO SIDE MEMBER
999
CLAMP EXHAUST PIPE TO BRACKET
999
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
999
EXHAUST PIPE ,5 953233
999
END PIECE LEFT
999
END PIECE RIGHT
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 468859
999
END PIECE EXHAUST MUFFLER,LEFT REAR
999
END PIECE EXHAUST MUFFLER,RIGHT REAR
999
END PIECE (TAIL PIPE)
999
END PIECE (TAIL PIPE),K 035523
999
INTERMEDIATE PIECE FROM CONNECTION FITTING TO CAB REAR PANEL,K 085783
999
PROTECTIVE PLATE , NOT USED
999
END PIECE (TAIL PIPE),K 035523
999
BRACKET
999
BRACKET TAIL PIPE TO SIDE MEMBER
999
END PIECE TAIL PIPE TO EXHAUST MUFFLER
999
END PIECE (TAIL PIPE)
999
END PIECE ,5 765949
999
END PIECE
999
END PIECE
999
BRACKET TAIL PIPE TO APPARATUS SUPPORT
999
END PIECE (TAIL PIPE),5 5644795 758825
999
REAR EXHAUST PIPE VERTICAL,K 085783
999
END PIECE (TAIL PIPE),5 5975185 758825
999
END PIECE (TAIL PIPE),5 5975185 758825
999
END PIECE (TAIL PIPE),5 5644795 758825
999
END PIECE (TAIL PIPE)
999
END PIECE (TAIL PIPE),5 758826
999
BRACKET ,5 768419, Replaced By: A3464910441
999
BRACKET EXHAUST PIPE TO SIDE MEMBER,K 035197
999
BRACKET TAIL PIPE TO SIDE MEMBER
999
BRACKET BRACKET TO SPRING FRONT BRACKET,5 943736K 035522
999
BRACKET TAIL PIPE TO SIDE MEMBER
999
CONNECTOR
999
END PIECE BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233
999
END PIECE (TAIL PIPE)
999
CLAMP EXHAUST PIPE TO BRACKET
999
BRACKET TAIL PIPE TO SIDE MEMBER, SIMPLE PART-PLEASE HAVE SHOP MADE
999
REAR EXHAUST PIPE TAIL PIPE,FRONT
999
BRACKET TAIL PIPE
999
BRACKET PROTECTIVE PLATE TO SUPPORT
999
PROTECTIVE PLATE (HEAT SHIELD)
999
PROTECTIVE PLATE (HEAT SHIELD)
999
BRACKET TAIL PIPE
999
INTERMEDIATE PIECE
999
CLAMP EXHAUST PIPE
999
REAR EXHAUST PIPE BEHIND CAB,UPWARD
999
BRACKET TAIL PIPE
999
MOUNTING BRACKET TO CAB
999
BRACKET INTERMEDIATE PIECE TO FRAME
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
SCREW BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233K 027550
999
WASHER , Replaced By: N009021008213
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
CLAMP , Replaced By: A6554920340
