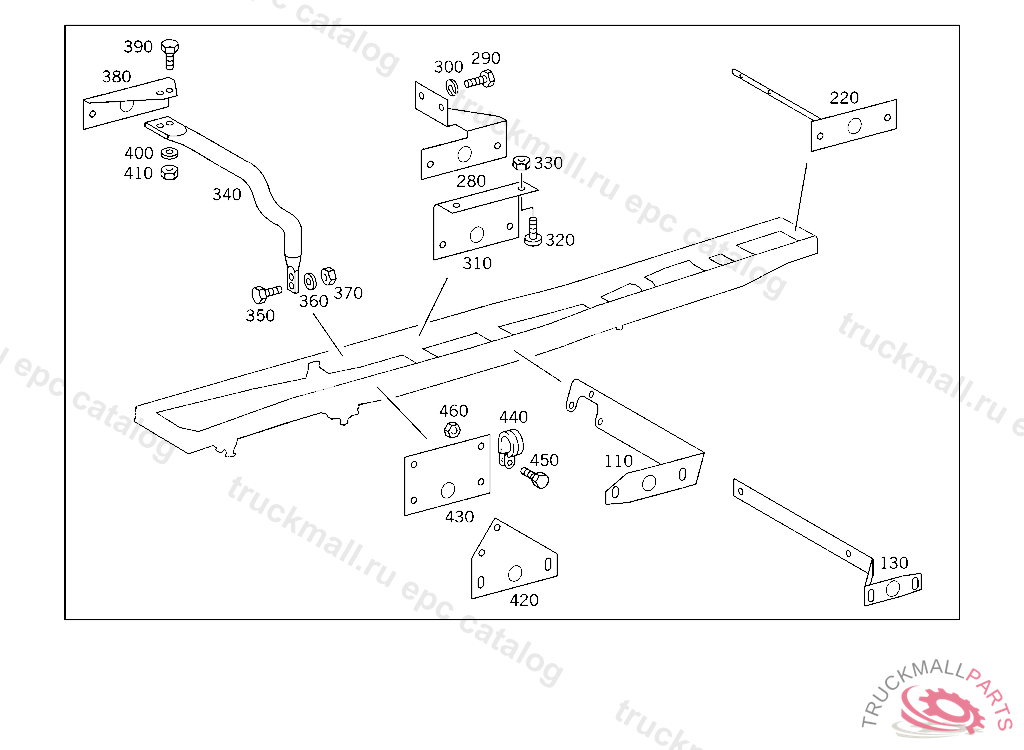

Поз.
Артикул
Описание
110
BRACKET AT FENDER BRACKET
110
BRACKET AT FENDER BRACKET
110
BRACKET AT FENDER BRACKET,RIGHT
110
BRACKET AT FENDER BRACKET,LEFT
130
BRACKET AT FENDER BRACKET
220
BRACKET BRACKET TO REAR FENDER
220
BRACKET BRACKET TO REAR FENDER
280
BRACKET TO STEP GRID
290
SCREW PUMP TO BRACKET
300
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
310
BRACKET TO COVERING
320
SCREW COVER PLATE TO COVER PLATE M 6 X 12
330
NUT PUMP TO BRACKET
330
NUT , Replaced By: N913004006001
340
SUPPORT FENDER
340
SUPPORT , Replaced By: A6555202833, +001N000125013008, +001N000961012052, +001N913004012008
350
SCREW , Replaced By: N308676012012
350
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
360
WASHER
370
NUT SUPPORT TO SIDE MEMBER
380
BRACKET BRACKET TO SUPPORT
390
SCREW LEVER TO SHAFT
390
SCREW , Replaced By: N304017005002
400
WASHER , Replaced By: N000433005304
400
WASHER BOOT TO CAB FLOOR
410
NUT , Replaced By: N910113005001
410
NUT HOOK TO BRACKET
420
BRACKET AT SUPPORT
430
BRACKET AT SUPPORT
440
CLAMP HOSE TO SUPPORT,5 385342
450
SCREW , Replaced By: N304017005002
450
SCREW LEVER TO SHAFT
460
NUT HOOK TO BRACKET
460
NUT , Replaced By: N910113005001
999
NUT STRAP TO SUPPORT
999
SCREW STRUT TO CONSOLE
999
SCREW BRACKET TO PROPELLER SHAFT BEARING HOUSING M 12X30
999
WASHER BRACKET TO CONSOLE
999
BRACKET BRACKET TO UNDERRUN PROTECTION
999
BRACKET SIDE MARKER LAMP
999
BRACKET
999
BRACKET SIDE-MARKER LAMP LEFT
999
BRACKET SIDE-MARKER LAMP RIGHT
999
WASHER , Replaced By: N000125004319
999
WASHER BRACKET TO SUPPORT
999
SCREW , Replaced By: N304017010028
999
SCREW BOOT TO AIR DUCT AND TO AIR CLEANER
999
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
999
NUT , Replaced By: N913023010002
999
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
