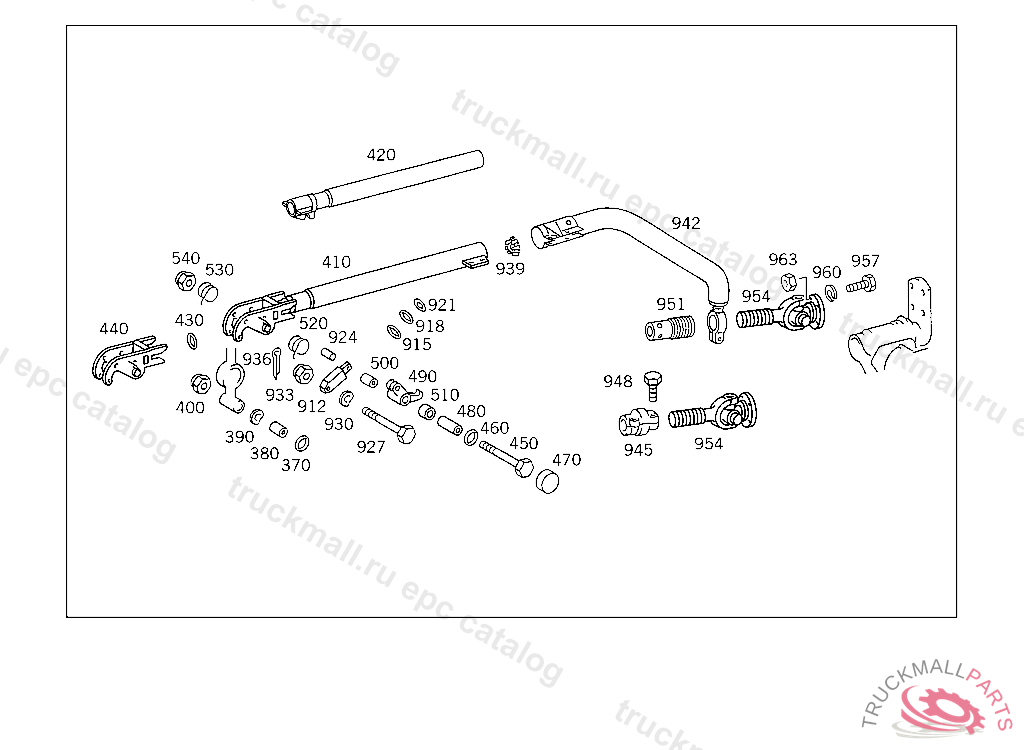

Поз.
Артикул
Описание
370
ROUND CORD RING. SEAL RING ROD END
380
SPACER TUBE SHIFTING ROD TO SHIFT LEVER
390
SPRING WASHER SHIFTING ROD TO SHIFT LEVER
400
NUT STRAP TO BRACKET
400
NUT , Replaced By: N910113010000
410
SHIFTING ROD (TELESCOPIC SHIFTING ROD),K 131521
410
SHIFTING ROD (TELESCOPIC SHIFTING ROD)
410
SHIFTING ROD (TELESCOPIC SHIFTING ROD),K 131522
420
SHIFTING ROD (TELESCOPIC TUBE),K 131521
430
SEAL RING HYDRAULIC RELEASE
440
ROD END HYDRAULIC RELEASE
450
SCREW , Replaced By: N000933010192
450
SCREW SHIFTING ROD TO SHIFT LEVER
460
ROUND CORD RING. SEAL RING ROD END
470
EXPANSION PLUG ROD END
480
SPACER TUBE SHIFTING ROD TO SHIFT LEVER
490
PAWL SHIFTING ROD,5 443048
500
BUSHING PAWL TO ROD END,5 443048
510
BUSHING PAWL TO ROD END,5 443048
520
SPRING ROD END
530
SPRING ROD END
540
NUT STRAP TO BRACKET
540
NUT , Replaced By: N910113010000
912
SHIFTING CYLINDER HYDRAULIC RELEASE WABCO
912
SHIFTING CYLINDER HYDRAULIC RELEASE TECHNOMATIK
915
SEAL RING PISTON RINGS WABCO
918
SEAL RING SCREW FITTING WABCO
921
SEAL RING OUTSIDE WABCO
924
PIN SHIFTING CYLINDER TO YOKE 8X45 MM
924
PIN SHIFTING CYLINDER TO PAWL 8X20 MM
927
SCREW REAR EXHAUST PIPE TO MUFFLER
927
SCREW BRACKET TO SIDE MEMBER M 14X40
930
SPRING WASHER SHIFTING CYLINDER TO YOKE
933
NUT STRAP TO BRACKET
933
NUT , Replaced By: N910113010000
936
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
936
COTTER PIN LEVER TO ROD
939
WASHER BETWEEN THE SHIFTING RODS
942
SHIFTING ROD , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6522606633
942
SHIFTING ROD , Replaced By: A6552606447
942
SHIFTING ROD , Replaced By: A6552606547
942
SHIFTING ROD ,K 131521
942
ROD
942
ROD REAR SHIFTING ROD
945
CLAMPING PIECE SHIFTING ROD TO TRANSMISSION
948
SCREW CONNECTOR TO REAR SHIFTING ROD
948
SCREW , Replaced By: N304017010047
951
CONNECTOR , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6172680028
951
CONNECTOR REAR SHIFTING ROD TO CONNECTOR
954
JOINT LEVER TO SUPPORT,K 131522
954
JOINT SHIFTING ROD TO TRANSMISSION
954
JOINT SHIFTING ROD TO TRANSMISSION
957
SCREW SHIFTING ROD TO TRANSMISSION
960
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
963
NUT
999
SHIFT MECHANISM ELECTROPNEUMATIC POWER SHIFT, 625.101,652-654 5 954065 625.120,655-659 5 957780
999
HANDLE TRANSFER CASE ACTUATION
999
SHIFTING ROD (TELESCOPIC TUBE)
999
PULL ROD SHIFTING TRANSFER,K 131522
999
PULL ROD SHIFTING TRANSFER,K 131522
999
LEVER SHIFTING TRANSFER
999
LEVER AT BRACKET
999
LEVER , Replaced By: A6522602537
999
SHIFTING ROD
999
SHIFTING ROD , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6522606633
999
BRACKET LEVER,K 131522
999
BRACKET SHIFT MECHANISM
999
SHIFT LEVER ,K 131522K 142857
999
COVER COVERING
999
COVERING SHIFT LEVER, TO BE ADAPTED DURING ASSEMBLY
999
SPRING RETAINER EMERGENCY SWITCH ACTUATION, 625.101,652-654 5 954065 625.120,655-659 5 957780
999
COVERING SHIFT LEVER, TO BE ADAPTED DURING ASSEMBLY
999
SHIM SHIFT MECHANISM AND BRACKET TO CAB FLOOR
999
SPRING RETAINER EMERGENCY SWITCH ACTUATION, 625.101,652-654 5 954065 625.120,655-659 5 957780
999
BRACKET SHIFT LEVER BEARING TO CAB FLOOR
999
SPRING EMERGENCY SWITCH ACTUATION, 625.101,652-654 5 954065 625.120,655-659 5 957780
999
SCREW FRONT SHIFTING ROD TO REAR SHIFTING ROD
