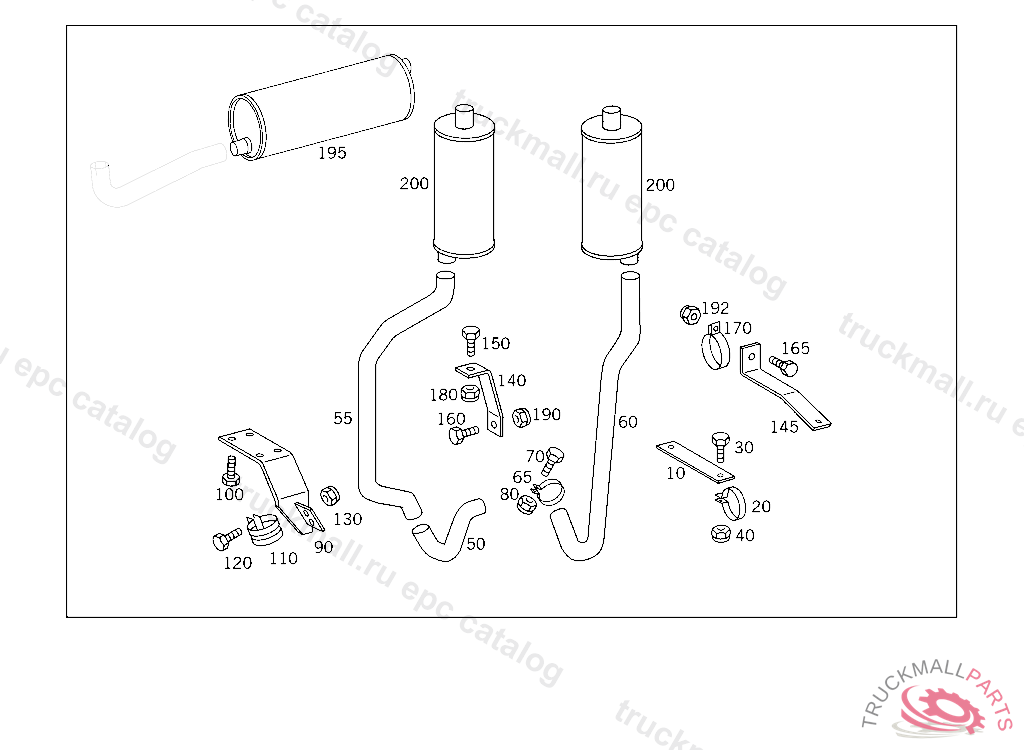

Поз.
Артикул
Описание
10
BRACKET RIGHT EXHAUST PIPE
20
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
20
CLAMP , Replaced By: N071555100501
30
SCREW END PIECE TO EXHAUST PIPE M 10X25
40
NUT STRAP TO BRACKET
40
NUT , Replaced By: N910113010000
50
EXHAUST PIPE , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6254905320
50
EXHAUST PIPE SLIP LINK ON INTERMEDIATE PIPE AND BRACKET
55
FRONT EXHAUST PIPE INTERMEDIATE PIPE ON EXHAUST MUFFLER
55
FRONT EXHAUST PIPE , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6254928401
60
EXHAUST PIPE FROM SLIDING PIECE TO EXHAUST MUFFLER, RIGHT
60
EXHAUST PIPE FROM SLIDING PIECE TO EXHAUST MUFFLER, RIGHT
65
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
70
SCREW BRACKET TO SIDE MEMBER
70
SCREW , Replaced By: N304017010002
80
NUT , Replaced By: N910113010000
80
NUT STRAP TO BRACKET
90
BRACKET FRONT EXHAUST PIPE,RIGHT
90
BRACKET FRONT EXHAUST PIPE,LEFT
100
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
110
CLAMP EXHAUST PIPE TO BRACKET
120
SCREW CONNECTOR TO REAR SHIFTING ROD
120
SCREW , Replaced By: N304017010047
130
NUT , Replaced By: N910113010000
130
NUT STRAP TO BRACKET
140
BRACKET AT EXHAUST PIPE
140
BRACKET AT EXHAUST PIPE
140
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6254920242
140
BRACKET BRACKET TO CROSS MEMBER
145
BRACKET EXHAUST PIPE TO BRACKET ON SIDE MEMBER
150
SCREW PIPE CLAMP
150
SCREW , Replaced By: N304017008021
160
SCREW BRACKET TO SIDE MEMBER
165
SCREW BRACKET TO LEFT SIDE MEMBER
170
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
170
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
180
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
180
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
190
NUT STRAP TO BRACKET
192
NUT BRACKET TO SIDE MEMBER
195
EXHAUST MUFFLER
200
EXHAUST MUFFLER
999
EXHAUST MUFFLER
999
EXHAUST MUFFLER
999
EXHAUST MUFFLER , Replaced By: A6764900401
