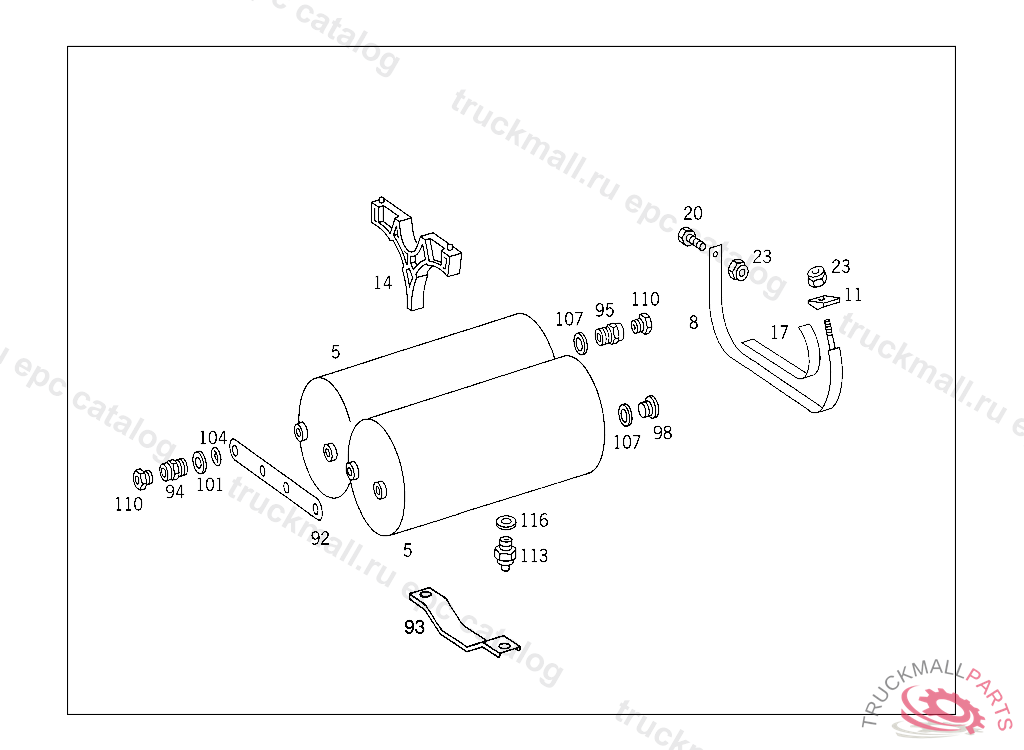

Поз.
Артикул
Описание
5
RESERVOIR30L,246 MM,12.5 BAR
5
RESERVOIR SERVICE BRAKE 30 L, Replaced By: A0034321801, +001A6554320073
8
STRAP SERVICE BRAKE AIR RESERVOIR
11
BASE AIR RESERVOIR STRAP
14
BASE AIR RESERVOIR,STRAP
17
ADHESIVE TAPE60 MM, ORDER BY THE METER
17
ADHESIVE TAPE , Replaced By: A6559890485
17
ADHESIVE TAPE , Replaced By: A6559890485
20
SCREW , Replaced By: N304017010043
20
SCREW BRACKET TO CONSOLE
23
NUT STRAP TO BRACKET
23
NUT , Replaced By: N910113010000
92
LOCK (PROTECTION AGAINST TORSION),5 934167
93
LOCK (PROTECTION AGAINST TORSION),5 934168
94
FITTING AIR RESERVOIR,CONNECTION: "15",5 433280
95
FITTING LINE CONNECTION
98
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
98
SCREW PLUG , Replaced By: N000908022011
101
THRUST RING CHECK VALVE TO AIR RESERVOIR
101
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
104
O-RING CHECK VALVE TO AIR RESERVOIR
107
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
110
SCREW. UNION SCREW LINE CONNECTION
113
VALVE. DRAIN VALVE DRAIN
113
VALVE DRAIN, Replaced By: A0004322407
113
VALVE DRAIN, Replaced By: A0004322107
116
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
