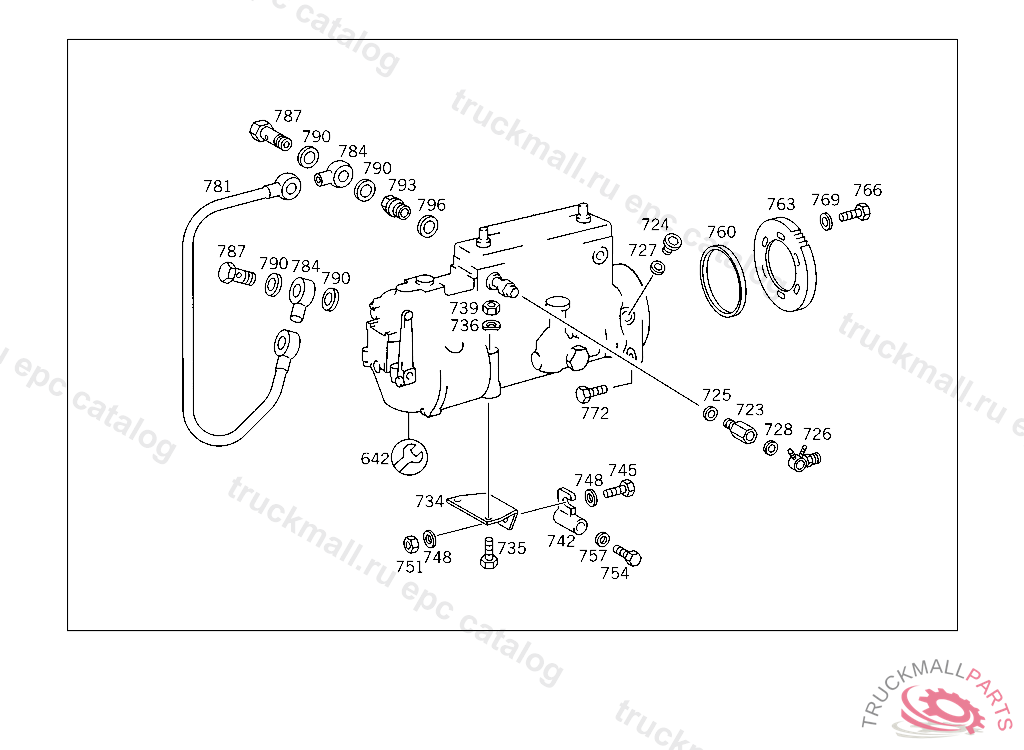

Поз.
Артикул
Описание
642
REPAIR KIT INJECTION PUMP GOVERNOR
723
INTERMEDIATE PIECE EXTENSIBLE BRAKE VALVE,CONNECTIONS: "10,20"
724
SCREW PLUG, FILLING OIL COOLER M18X1.5
725
SEAL RING INJECTION PUMP
726
INTERMEDIATE PIECE LINE MOUNTING
726
BANJO UNION LEAK FUEL LINE CONNECTION
727
SEAL RING VALVE TO VALVE,K 025179
728
SEAL RING INJECTION PUMP
734
BRACKET
735
SCREW BRACKET TO REAR CROSS MEMBER
736
SPRING WASHER STEERING COLUMN BRACKET TO CAB
739
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
742
BRACKET AT INJECTION PUMP
742
BRACKET INJECTION PUMP
745
SCREW BEARING BRACKET TO SIDE MEMBER
748
WASHER BRACKET TO FRAME
751
HEX. NUT M 12 DIN 934-5 S. NUT , Replaced By: N000934012021
754
SCREW , Replaced By: A0029903804
757
WASHER BRACKET TO FRAME
760
SEAL RING EXPANSION PLUG TO CYLINDER CRANKCASE
763
DRIVE GEAR INJECTION PUMP
766
SCREW
769
WASHER FROM TERMINAL BOX TO CHARGING AIR PIPE
769
WASHER , Replaced By: A4449905140
772
SCREW ANGLE TO CROSS MEMBER M 10X30
781
LINE (CONNECTING PIPE) 10X2 MM
784
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
787
BANJO BOLT. HOLLOW SCREW
790
SEAL RING
793
CONNECTING PIPE CONNECTING PIPE TO INTAKE PIPE
796
SEAL RINGTO 376 131 74 01
