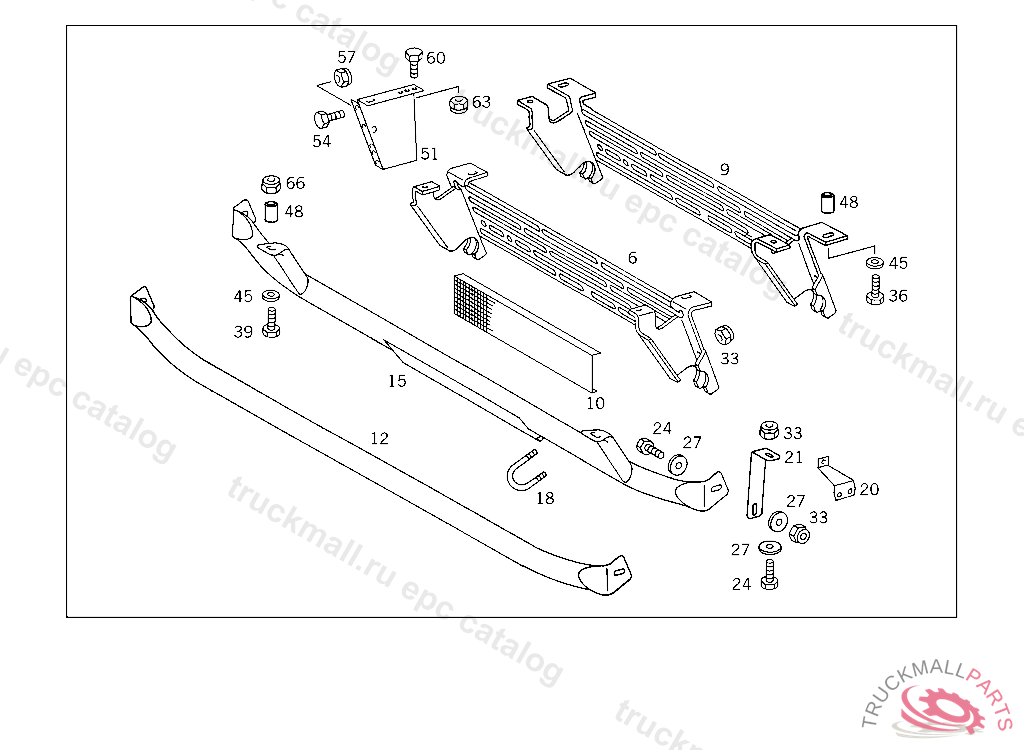

Поз.
Артикул
Описание
6
COVERING RADIATOR UNDERSHIELD
9
COVERING RADIATOR UNDERSHIELD
10
COVERING COVER PLATE
12
PIPE COVER PLATE, I WHEN ORDERING, INDICATE IN ADDITION THE COLOR CODE NUMBERS: I BLACKI I I I II
12
PIPE COVER PLATE, I WHEN ORDERING, INDICATE IN ADDITION THE COLOR CODE NUMBERS: I BLACKI I I I II
15
PROTECTIVE TUBE , Replaced By: A6555200350
15
PROTECTIVE TUBE RADIATOR, TO BE ADAPTED DURING ASSEMBLY
15
PROTECTIVE TUBE RADIATOR
15
PROTECTIVE TUBE RADIATOR
15
PROTECTIVE TUBE RADIATOR, TO BE ADAPTED DURING ASSEMBLY
18
CLAMP COVER PLATE
20
BRACKET , Replaced By: A6555204344
20
BRACKET COVER PLATE
21
BRACKET , Replaced By: A6525243740
21
BRACKET COVER PLATE
21
BRACKET COVER PLATE
21
BRACKET COVERING
21
BRACKET COVER PLATE
21
BRACKET COVERING
21
BRACKET COVER PLATE
21
BRACKET COVER PLATE
21
BRACKET , Replaced By: A6995048340
21
BRACKET COVER PLATE, I WHEN ORDERING, INDICATE IN ADDITION THE COLOR CODE NUMBERS: I BLACKI I I I II
21
BRACKET COVER PLATE, TO BE ADAPTED DURING ASSEMBLY
21
BRACKET COVER PLATE
21
BRACKET COVER PLATE,5 562328
21
BRACKET COVER PLATE
21
BRACKET COVER PLATE
21
BRACKET COVER PLATE
21
BRACKET COVER PLATE,5 562328
21
BRACKET , Replaced By: A6525243740
21
BRACKET COVER PLATE
21
BRACKET COVER PLATE, I WHEN ORDERING, INDICATE IN ADDITION THE COLOR CODE NUMBERS: I BLACKI I I I II
21
BRACKET COVER PLATE
24
SCREW COVER PLATE TO BRACKET
24
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
24
SCREW COVER PLATE TO BRACKET
24
SCREW BRACKET TO SIDE MEMBER
24
SCREW BRACKET TO SIDE MEMBER
24
SCREW , Replaced By: N304017010002
24
SCREW LEAF SPRING TO STRUT
27
WASHER RADIATOR TO RUBBER MOUNTING
27
WASHER , Replaced By: N000125010532
27
WASHER BRACKET TO COVERING
27
WASHER , Replaced By: N009021010209
33
NUT EXHAUST PIPE TO SIDE MEMBER
33
NUT STRAP TO BRACKET
33
NUT STRAP TO BRACKET
33
NUT EXHAUST PIPE TO SIDE MEMBER
33
NUT , Replaced By: N910113010000
36
SCREW STRUT TO BUMPER
36
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
36
SCREW , Replaced By: A0079900601
36
SCREW , Replaced By: N308676012026
36
SCREW STRUT TO BUMPER
36
SCREW COVER PLATE TO FRAME
36
SCREW CONTROL VALVE TO BRACKET
36
SCREW , Replaced By: N308676012034
36
SCREW LEFT AND RIGHT CONSOLES TO CAB
36
SCREW , Replaced By: N308676012015
39
SCREW BRACKET TO BUMPER STRUT
39
SCREW COVER PLATE TO BRACKET
39
SCREW CONSOLE TO SIDE MEMBER
45
WASHER BRACKET TO SIDE MEMBER,5 703114
45
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
45
WASHER COVER PLATE TO FRAME
45
WASHER
45
WASHER COVER PLATE TO FRAME
45
WASHER
45
WASHER COVER PLATE TO FRAME
45
WASHER
45
WASHER COVER PLATE TO FRAME
45
WASHER
45
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
45
WASHER , Replaced By: N000125015019
45
WASHER BRACKET TO SIDE MEMBER,5 703114
48
SPACER TUBE COVER PLATE TO FRAME
48
SPACER TUBE COVER PLATE TO FRAME
48
SPACER TUBE COVER PLATE TO FRAME
48
SPACER TUBE COVER PLATE TO FRAME
48
SPACER TUBE COVER PLATE TO FRAME
51
CONSOLE RIGHT
51
CONSOLE LEFT
54
SCREW EXHAUST PIPE TO BRACKET
54
SCREW BRACKET TO CROSS MEMBER M 12X1.5X40
57
NUT STRAP TO SUPPORT
60
SCREW SUPPORT TO SIDE MEMBER M14X40
63
NUT PARTICLE FILTER M14
66
NUT SUPPORT TO SIDE MEMBER
66
NUT SUPPORT TO SIDE MEMBER
66
NUT SUPPORT TO SIDE MEMBER
999
BRACKET RADIATOR PROTECTIVE GRILLE TO BUMPER,K 220702
999
BRACKET
