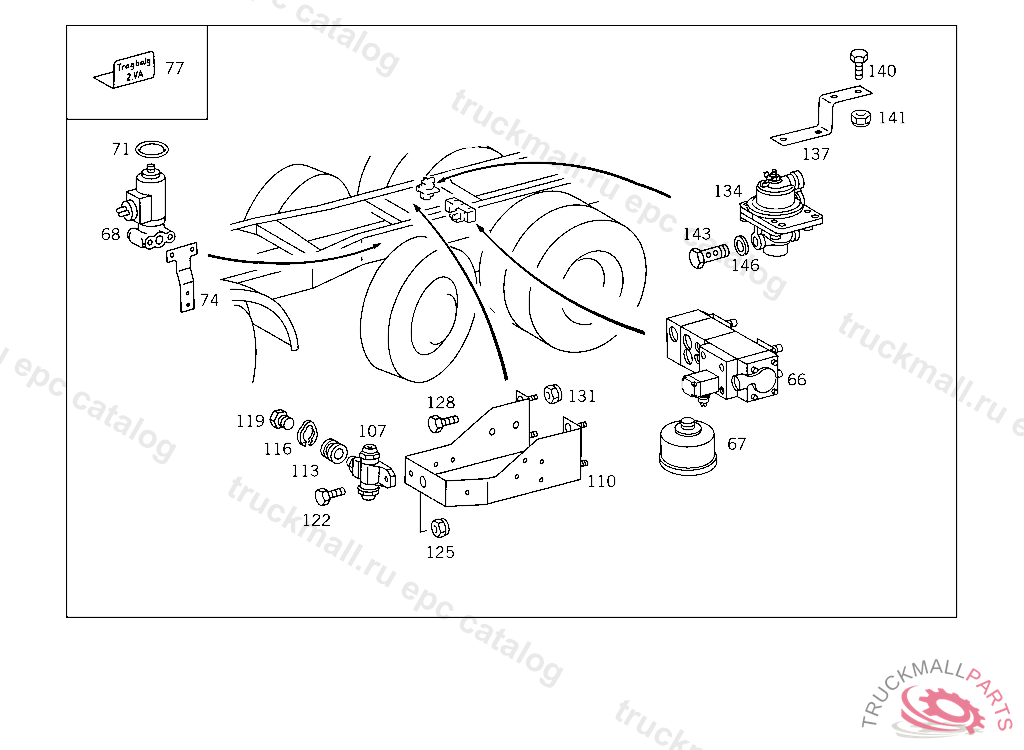

Поз.
Артикул
Описание
66
VALVE (SHIFT VALVE) KNORR
66
VALVE (SHIFT VALVE) GRAU, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
67
MUFFLER TRAILER CONTROL VALVE
68
VALVE (3/2-WAY SOLENOID VALVE), PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
71
SEAL RINGWABCO
74
BRACKET 3/2-WAY SOLENOID VALVE
77
GUIDE SIGN
107
VALVE SHUTTLE VALVE, REPAIR IMPOSSIBLE
110
BRACKET TWO-WAY VALVE
113
LOCK RING LINE CONNECTION
113
SEAL RING , Replaced By: A0009940747
116
LOCK LINE CONNECTION
116
LOCK , Replaced By: A0009945448
119
SCREW. UNION SCREW LINE CONNECTION
119
SCREW. UNION SCREW , Replaced By: A0009973734
122
SCREW BRACKET TO CROSS CONNECTION STRUT
122
SCREW , Replaced By: N304017008034
125
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
125
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
125
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
128
SCREW BRACKET TO SIDE MEMBER
131
NUT STRAP TO BRACKET
131
NUT , Replaced By: N910113010000
134
VALVE (PRESSURE CONTROL VALVE)
137
BRACKET PRESSURE CONTROL VALVE
137
BRACKET PRESSURE CONTROL VALVE
140
SCREW PIPE CLAMP
140
SCREW , Replaced By: N304017008021
140
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
140
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
140
SCREW , Replaced By: N304017008027
141
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
141
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
143
HOLLOW SCREW LINE CONNECTION
146
SEAL RING LINE CONNECTION
