Поз.
Артикул
Описание

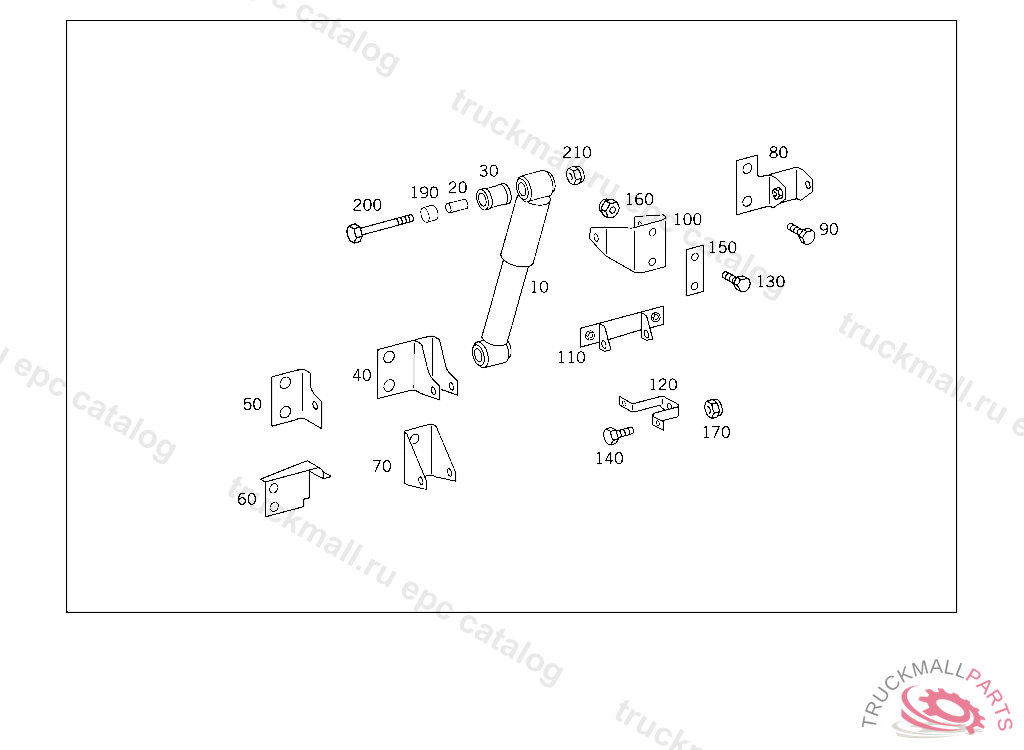

10
ENGINE VIBRATION ABSORBER , Replaced By: A0002402348
10
ENGINE VIBRATION ABSORBER VIBRATION ABSORBER
20
BUSHING
30
RUBBER MOUNTINGFICHTEL&SACHS
40
BRACKET VIBRATION ABSORBER TO TRANSMISSION CASE,BOTTOM LEFT
40
BRACKET VIBRATION ABSORBER TO TRANSMISSION CASE,BOTTOM LEFT
50
BRACKET VIBRATION ABSORBER TO TRANSMISSION CASE,BOTTOM LEFT,K 028108
60
BRACKET RIGHT COMPRESSED AIR LINES
70
BRACKET VIBRATION ABSORBER TO TRANSMISSION CASE,BOTTOM LEFT
70
BRACKET VIBRATION ABSORBER TO TRANSMISSION CASE,BOTTOM RIGHT
70
BRACKET VIBRATION ABSORBER TO TRANSMISSION CASE,BOTTOM RIGHT
80
BRACKET AT APPARATUS SUPPORT
90
SCREW BEARING BRACKET TO SIDE MEMBER
90
SCREW , Replaced By: N308676016020
90
SCREW CONSOLE TO FRAME
100
BRACKET VIBRATION ABSORBER TO FRAME
110
BRACKET VIBRATION ABSORBER
120
BRACKET VIBRATION ABSORBER
130
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
140
SCREW END PIECE TO EXHAUST PIPE M 10X25
140
SCREW , Replaced By: N304017008021
140
SCREW PIPE CLAMP
150
SHIM BRACKET TO FRAME
160
NUT SUPPORT TO SIDE MEMBER
170
NUT , Replaced By: N910113010000
170
NUT STRAP TO BRACKET
190
SPACER TUBE , Replaced By: A3210720053
190
SPACER TUBE VIBRATION ABSORBER TO BRACKET 39 MM, TO BE ADAPTED DURING ASSEMBLY
190
SPACER TUBE , Replaced By: A3210720053
190
SPACER TUBE VIBRATION ABSORBER TO BRACKET 39 MM, TO BE ADAPTED DURING ASSEMBLY
190
SPACER TUBE , Replaced By: A3210720053
190
SPACER TUBE VIBRATION ABSORBER TO BRACKET 39 MM, TO BE ADAPTED DURING ASSEMBLY
190
SPACER TUBE , Replaced By: A3210720053
190
SPACER TUBE VIBRATION ABSORBER TO BRACKET 39 MM, TO BE ADAPTED DURING ASSEMBLY
190
SPACER TUBE VIBRATION ABSORBER TO BRACKET
190
SPACER TUBE , Replaced By: A4070720353
190
SPACER TUBE VIBRATION ABSORBER TO BRACKET
190
SPACER TUBE , Replaced By: A4070720353
190
SPACER TUBE VIBRATION ABSORBER TO BRACKET
190
SPACER TUBE , Replaced By: A4070720353
190
SPACER TUBE VIBRATION ABSORBER TO BRACKET
200
SCREW LEAF SPRING TO STRUT, USED WITH MEDIUM-LENGTH AND LONG MERCEDES-BENZ CABS
200
SCREW TORSION BAR TO SHACKLE M 12X85,5 255315
200
SCREW VIBRATION ABSORBER TO BRACKET
200
SCREW , Replaced By: N000961012208
200
SCREW BRACKET TO CONSOLE
200
SCREW , Replaced By: N308676012018
200
SCREW STRUT TO FRAME M 12X62
200
SCREW TORSION BAR TO SHACKLE,5 903514
200
SCREW , Replaced By: N000960012384
200
SCREW STRUT TO SIDE MEMBER M 12X55
210
NUT SUPPORT TO SIDE MEMBER
210
NUT VIBRATION ABSORBER TO BRACKET
