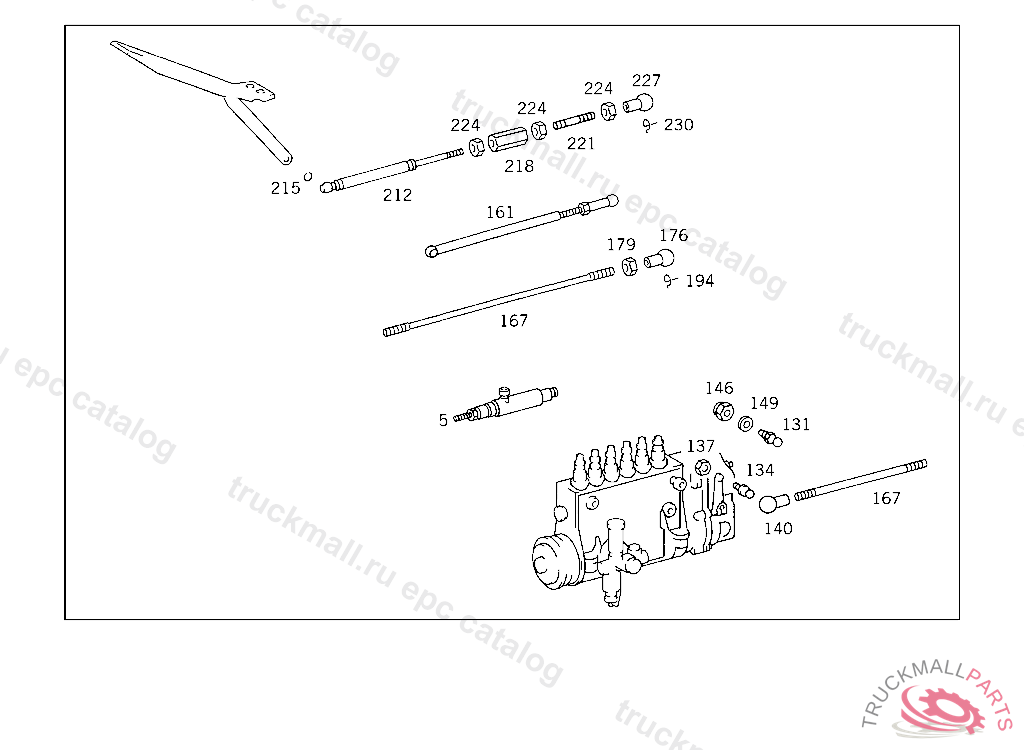

Поз.
Артикул
Описание
5
CYLINDER , Replaced By: A0000721512
5
CYLINDER INJECTION PUMP CONTROL
131
BALL PIVOT LOAD SENSOR
134
BALL PIVOT CONTROL LEVER TO INJECTION PUMP LEVER, Replaced By: N000000004467
134
SCREW CONTROL LEVER TO INJECTION PUMP LEVER
137
NUT BALL PIVOT TO LEVER
140
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
140
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
146
NUT , Replaced By: N913004006001
146
NUT PUMP TO BRACKET
149
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
149
WASHER COMPRESSED AIR LINE TO BRACKET
161
ROD LOAD SENSOR CONTROL
161
ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER
161
ROD FROM CONTROL SHAFT BEARING TO INTERMEDIATE LEVER
167
PULL ROD LOAD SENSOR CONTROL, TO BE ADAPTED DURING ASSEMBLY
167
ROD LOAD SENSOR CONTROL
167
PULL ROD AT CONTROL LEVER, TO BE ADAPTED DURING ASSEMBLY
167
PULL ROD ENGINE CONTROL, TO BE ADAPTED DURING ASSEMBLY
176
BALL SOCKET PULL ROD TO LEVER
176
BALL SOCKET TO BE EXCHANGED FOR 000 991 24 22
176
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
179
NUT BALL PIVOT TO LEVER
179
NUT , Replaced By: N913004006001
179
NUT PUMP TO BRACKET
194
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
212
ROD ACCELERATOR PEDAL TO LEVER
212
ROD ACCELERATOR PEDAL TO LEVER
215
SNAP RING SPRING-LOADED PUSH ROD
218
THREADED UNION OPERATING ROD
221
PULL ROD OPERATING ROD, TO BE ADAPTED DURING ASSEMBLY
221
PULL ROD OPERATING ROD, TO BE ADAPTED DURING ASSEMBLY
224
NUT , Replaced By: N304035008001
224
NUT
227
BALL SOCKET ROD TO BALL PIVOT
227
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
230
SECURING CLIP. CIRCLIP
230
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
999
LEVER LOAD CONTROL
