Поз.
Артикул
Описание

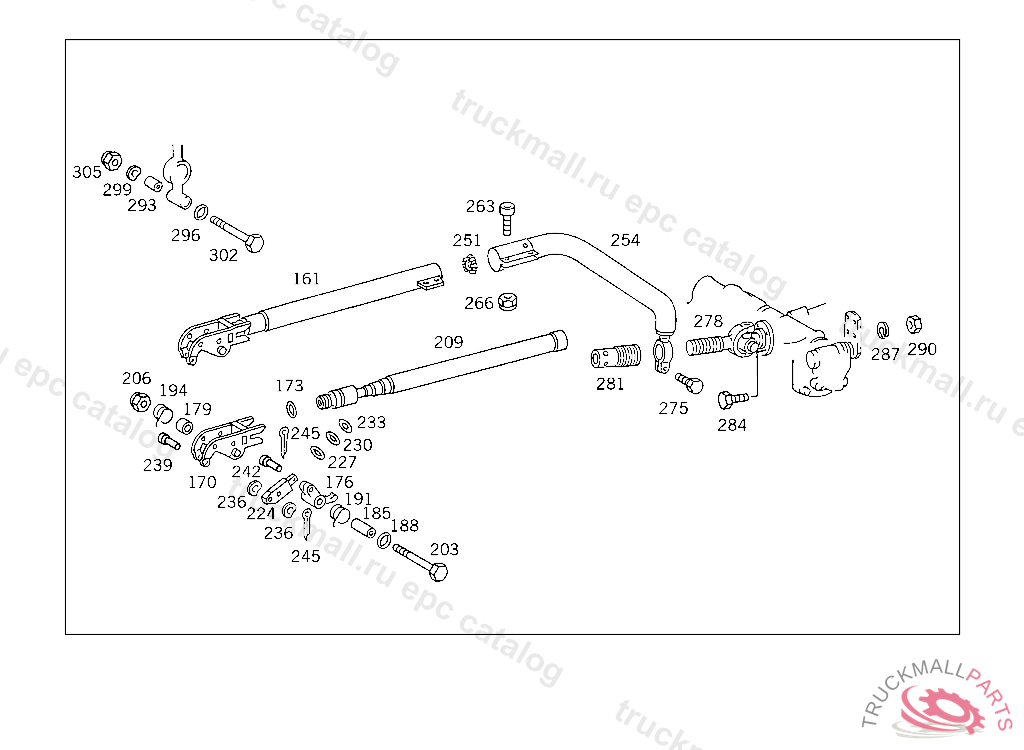

161
SHIFTING ROD (TELESCOPIC SHIFTING ROD)
170
ROD END HYDRAULIC RELEASE
173
SEAL RING HYDRAULIC RELEASE
176
PAWL SHIFTING ROD,5 443048
179
BUSHING PAWL TO ROD END,5 443048
179
BUSHING PAWL TO ROD END,5 443048
185
SPACER TUBE SHIFTING ROD TO SHIFT LEVER
188
ROUND CORD RING. SEAL RING ROD END
191
SPRING ROD END
194
SPRING ROD END
203
SCREW SHIFTING ROD TO SHIFT LEVER
203
SCREW , Replaced By: N000933010192
206
NUT STRAP TO BRACKET
206
NUT , Replaced By: N910113010000
209
SHIFTING TUBE (TELESCOPIC TUBE)
224
SHIFTING CYLINDER HYDRAULIC RELEASE TECHNOMATIK
224
SHIFTING CYLINDER HYDRAULIC RELEASE WABCO
227
SEAL RING PISTON RINGS WABCO
230
SEAL RING SCREW FITTING WABCO
233
SEAL RING OUTSIDE WABCO
236
SPRING WASHER SHIFTING CYLINDER TO YOKE
236
SPRING WASHER SHIFTING CYLINDER TO YOKE
239
PIN SHIFTING CYLINDER TO YOKE 8X45 MM
242
PIN SHIFTING CYLINDER TO PAWL 8X20 MM
245
COTTER PIN LEVER TO ROD
245
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
254
SHIFTING ROD ,K 131521
254
SHIFTING ROD , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6522606633
263
SCREW FRONT SHIFTING ROD TO REAR SHIFTING ROD
266
NUT STRAP TO BRACKET
266
NUT , Replaced By: N910113010000
275
SCREW CONNECTOR TO REAR SHIFTING ROD
278
JOINT SHIFTING ROD TO TRANSMISSION
278
JOINT SHIFTING ROD TO TRANSMISSION
281
CONNECTOR , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6172680028
284
SCREW SHIFTING ROD TO TRANSMISSION
287
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
290
NUT
293
SPACER TUBE SHIFTING ROD TO SHIFT LEVER
296
ROUND CORD RING. SEAL RING ROD END
299
SPRING WASHER SHIFTING ROD TO SHIFT LEVER
302
SCREW SHIFTING ROD TO SHIFT LEVER
302
SCREW , Replaced By: N000933010192
305
NUT STRAP TO BRACKET
305
NUT , Replaced By: N910113010000
999
JOINT LEVER TO SUPPORT,K 131522
999
INSULATION CAB/TRANSMISSION COMPRESSED-AIR-LINE SEPARATION POINT
