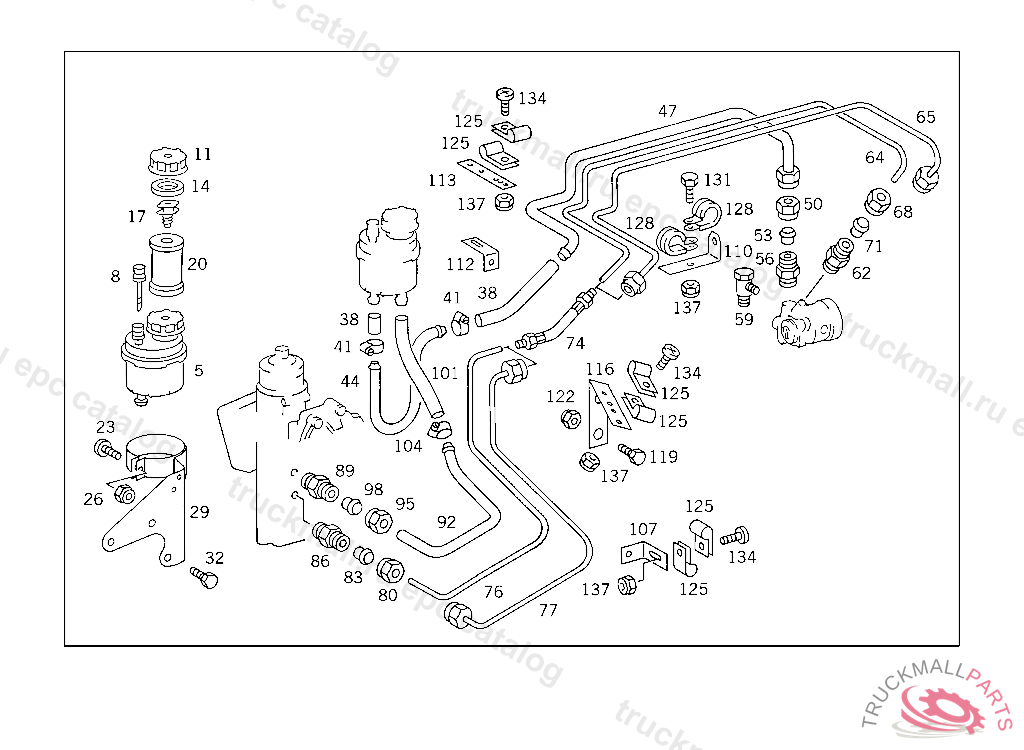

Поз.
Артикул
Описание
5
TANK , Replaced By: A0004666202
5
TANK OIL
8
OIL DIPSTICK , Replaced By: A0004660867
8
OIL DIPSTICK
11
FILLER CAP
11
FILLER CAP , Replaced By: A0004661268
14
SEAL RING
17
BRACKET
20
FILTER
20
FILTER
23
SCREW OIL TANK TO BRACKET
26
NUT , Replaced By: N913004006001
26
NUT PUMP TO BRACKET
29
BRACKET OIL TANK,5 593345
29
BRACKET OIL TANK,5 593345
32
SCREW , Replaced By: N304017010028
32
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
32
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
38
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
38
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
41
CLAMP , Replaced By: N000000000667
41
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
44
LINE FROM OIL TANK TO HOSE, Replaced By: A0004291601
44
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
44
LINE FROM OIL TANK TO HOSE
44
LINE FROM OIL TANK TO HOSE
47
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
47
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
47
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
53
GLAND , Replaced By: A0019901267
53
SEAL CONE LINE CONNECTION
56
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
59
SCREW CONNECTION SUCTION LINE TO OIL PUMP, Replaced By: N000000006460
59
THREADED CONNECTION SUCTION LINE TO OIL PUMP
62
FITTING DELIVERY LINE TO PUMP
64
LINE FROM PUMP TO HIGH PRESSURE HOSE,5 554417
64
LINE FROM PUMP TO HIGH PRESSURE HOSE
68
UNION NUT LINE CONNECTION, Replaced By: N000000006239
68
UNION NUT LINE CONNECTION
71
GLAND , Replaced By: A0019901967
71
SEAL CONE LINE CONNECTION
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
76
LINE FROM HIGH PRESSURE HOSE TO STEERING
76
LINE FROM HIGH PRESSURE HOSE TO STEERING
77
LINE FROM HIGH PRESSURE HOSE TO STEERING
80
UNION NUT LINE CONNECTION, Replaced By: N000000006239
80
UNION NUT LINE CONNECTION
83
GLAND , Replaced By: A0019901967
83
SEAL CONE LINE CONNECTION
86
SCREW-IN FITTING DELIVERY LINE TO PUMP
86
FITTING DELIVERY LINE TO PUMP
89
SCREW-IN FITTING RETURN, FROM STEERING TO OIL TANK
92
LINE RETURN, FROM STEERING TO OIL TANK
92
LINE RETURN, FROM STEERING TO OIL TANK
95
UNION NUT LINE CONNECTION
98
GLAND LINE CONNECTION
101
HOSE DELIVERY LINE TO STEERING
104
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
104
CLAMP HOSE TO FITTING AND TO OIL TANK
110
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
110
BRACKET , Replaced By: A3604292940
110
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
110
BRACKET , Replaced By: A6205244040
112
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
113
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
113
BRACKET , Replaced By: A3604293140
116
BRACKET DELIVERY AND SUCTION LINES TO FRAME
116
BRACKET DELIVERY AND SUCTION LINES TO FRAME
116
BRACKET , Replaced By: A6564660040
119
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
119
SCREW , Replaced By: N308676012026
119
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
122
NUT SUPPORT TO SIDE MEMBER
125
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
125
CLAMP DELIVERY AND SUCTION LINES TO STEERING
125
CLAMP , Replaced By: A6739950001
125
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
128
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
128
CLAMP DELIVERY AND SUCTION LINES TO FRAME
128
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
128
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
131
SCREW DELIVERY AND SUCTION LINES TO ENGINE, FRONT M 6X35
134
HEXALOBULAR BOLT CLAMP ON BRACKET M6X30
134
SCREW , Replaced By: N000000001422
134
SCREW CAB FLOOR COVERING M 6X25
134
SCREW BRACKET MOUNTING M 6X20
134
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
134
SCREW CLAMP MOUNTING M 6X16
134
SCREW , Replaced By: N000000001146
134
SCREW , Replaced By: A0029903712
134
SCREW , Replaced By: N000000001149
134
HEXALOBULAR BOLT WIRE CABLE TO BRACKET
137
NUT , Replaced By: N913004006001
137
NUT PUMP TO BRACKET
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
999
SEAL RING VALVE TO VALVE,K 025179
999
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
999
SCREW CENTRAL LOCK TO CAB M 10X16
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
LINE FROM PUMP TO HIGH PRESSURE HOSE
999
PROTECTIVE CAP
