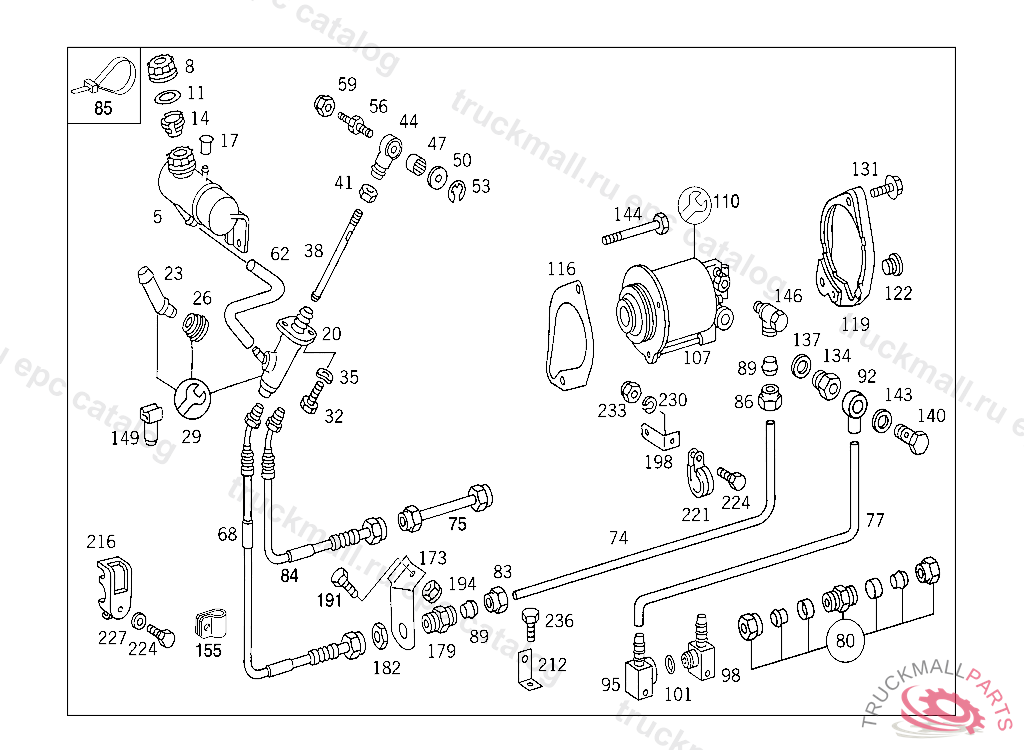

Поз.
Артикул
Описание
5
RESERVOIR EXPANSION TANK
8
LOCKING CAP
11
SEAL RING
14
STRAINER
17
CAP RESERVOIR DE-AERATION
20
MASTER CYLINDER CLUTCH
23
INTERMEDIATE PIECE
26
PLUG
29
CYLINDER. REPAIR KIT CLUTCH MASTER CYLINDER
32
SCREW COVER PLATE TO BRACKET
35
SPRING WASHER LICENSE PLATE TO BRACKET
38
ROD CLUTCH MASTER CYLINDER
41
NUT
41
NUT , Replaced By: N304035008001
44
ARTICULATION PIECE CLUTCH MASTER CYLINDER
44
ARTICULATION PIECE CLUTCH MASTER CYLINDER
47
NEEDLE BEARING JOINT TO PIN
47
NEEDLE BEARING JOINT TO PIN
47
NEEDLE BEARING JOINT TO PIN
47
NEEDLE BEARING JOINT TO PIN
50
WASHER BRACKET TO FENDER BRACKET
53
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
56
PIN CLUTCH MASTER CYLINDER TO CLUTCH PEDAL
59
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
59
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
59
NUT , Replaced By: N913004008001
62
HOSE FROM RESERVOIR TO MASTER CYLINDER, ORDER BY THE METER
68
LINE CLUTCH LINE
74
LINE FROM VALVE TO CONNECTION FITTING,K 172343 ORDER BY THE METER
74
LINE FROM VALVE TO CONNECTION FITTING,K 172343 ORDER BY THE METER
75
LINE FROM MASTER CYLINDER TO HOSE 95 MM,K 130133
77
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
77
HOSE , Replaced By: A0009872827
80
FITTING (PARTS KIT),LINE RUPTURE
83
UNION NUT LINE CONNECTION
84
LINE FROM CLUTCH MASTER CYLINDER TO CLUTCH SLAVE CYLINDER 4450 MM,K 130133
84
LINE FROM CLUTCH MASTER CYLINDER TO CLUTCH SLAVE CYLINDER 3550 MM,K 130133
86
UNION NUT
89
GLAND LINE CONNECTION
92
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
98
CONNECTOR RELEASE BEARING LUBRICATION
98
CONNECTOR , Replaced By: A0019904078
101
SEAL RING CONNECTOR 11.8X2 MM
101
SEAL RING , Replaced By: A0229973948
107
CLUTCH BOOSTERKNORR
107
CLUTCH BOOSTERWABCO, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
107
CLUTCH BOOSTER , Replaced By: A0002951518
116
COVER PLATETO 000 295 02 18 , 000 295 09 18
119
BRACKETWABCO,K 037846
131
SCREW CLUTCH BOOSTER TO BELL HOUSING,K 037846
134
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
137
SEAL RING COMPRESSED AIR LINE TO CLUTCH BOOSTER WABCO
140
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
143
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
143
SEAL RING. SEALING RING , Replaced By: N007603016401
144
SCREW CONNECTOR TO TRANSMISSION
146
FITTING CLUTCH BOOSTER,CONNECTION: "4"
146
FITTING , Replaced By: A0029909768
149
BRACKET LINE TO FRONT PANEL
155
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
173
BRACKET BRACKET TO FAN SHROUD BRACKET
179
FITTING HYDRAULIC LINE TO BRACKET,K 130132
182
NUT FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
191
SCREW LICENSE PLATE TO BRACKET
191
SCREW , Replaced By: N304017006020
191
SCREW COVER PLATE TO BRACKET
194
NUT PUMP TO BRACKET
194
NUT PUMP TO BRACKET
194
NUT , Replaced By: N913004006001
198
BRACKET FUEL LINES TO TRANSMISSION
212
BRACKET AT BRAKE VALVE
216
CLAMPING PIECE IDLING ADJUSTMENT WIRE CABLE
221
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
221
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
221
CLAMP ,K 147121, Replaced By: N000000000319
224
SCREW COVER PLATE TO BRACKET
224
SCREW PUMP TO BRACKET
224
SCREW , Replaced By: N304017006016
227
WASHER COMPRESSED AIR LINE TO BRACKET
227
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
230
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
233
NUT PUMP TO BRACKET
233
NUT , Replaced By: N913004006001
236
SCREW REDUCTION VALVE TO BRACKET
236
SCREW , Replaced By: A0079900801
999
CLAMP LINE MOUNTING
