Поз.
Артикул
Описание
5

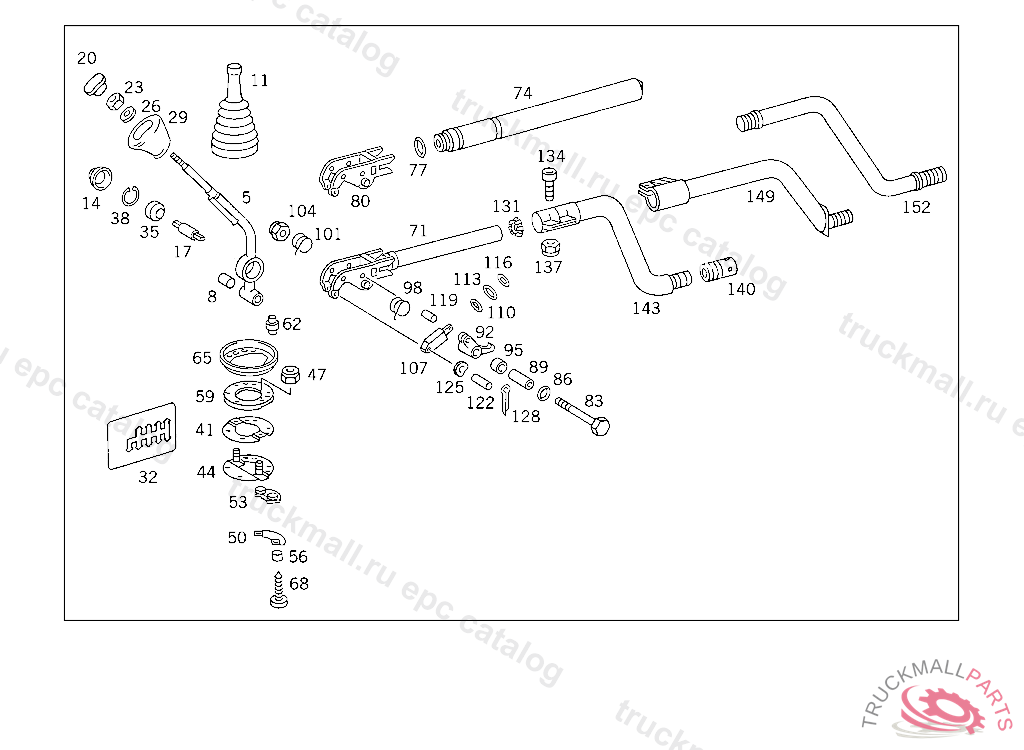

SHIFT LEVER REMOTE GEARSHIFT MECHANISM,4 291252
8
BUSHING PAWL TO ROD END,5 443047
11
BOOT SHIFTING ROD
14
BOOT SHIFT LEVER BEARING
17
PIN SHIFT LEVER BEARING,K040603
20
COVER 6-SPEED,SHIFT LEVER KNOB
23
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
26
WASHER RADIATOR TO RUBBER MOUNTING
29
HANDLE (SHIFT LEVER HANDLE)
32
GUMMED LABEL GEAR INDICATOR
35
JOINT BEARING SHIFT LEVER BEARING,K040603
35
JOINT BEARING SHIFT LEVER BEARING,K040603
38
LOCK RING SHIFT LEVER BEARING
41
BRACKET SHIFT LEVER UPPER PART,K040603
44
BRACKET SHIFT LEVER LOWER PART,K040603
47
NUT , Replaced By: N913004008001
47
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
50
BRACKET SHIFT LEVER BEARING TO CAB FLOOR
53
RUBBER PAD SHIFT LEVER BEARING TO CAB FLOOR
56
TUBE. BUSHING CAB FLOOR COVERING
59
RUBBER PAD SHIFT LEVER TO CAB FLOOR,K040603
62
BUSHING SHIFT LEVER BEARING TO CAB FLOOR
65
BRACKET BOOT
68
SHEET METAL SCREW BRACKET TO CAB
71
SHIFTING ROD (TELESCOPIC SHIFTING ROD)
74
SHIFTING TUBE (TELESCOPIC TUBE)
77
SEAL RING HYDRAULIC RELEASE
80
ROD END HYDRAULIC RELEASE
83
SCREW , Replaced By: N000933010192
83
SCREW SHIFTING ROD TO SHIFT LEVER
86
ROUND CORD RING. SEAL RING ROD END
89
SPACER TUBE SHIFTING ROD TO SHIFT LEVER
92
PAWL ,5 4430475 443048, Replaced By: A6202600087, +001A6202680150
92
PAWL SHIFTING ROD,5 443048
95
BUSHING PAWL TO ROD END,5 443047
95
BUSHING PAWL TO ROD END,5 443048
95
BUSHING PAWL TO ROD END,5 443048
98
SPRING ROD END
101
SPRING ROD END
104
NUT , Replaced By: N910113010000
104
NUT STRAP TO BRACKET
107
SHIFTING CYLINDER HYDRAULIC RELEASE TECHNOMATIK
107
SHIFTING CYLINDER HYDRAULIC RELEASE WABCO
110
SEAL RING PISTON RINGS WABCO
113
SEAL RING SCREW FITTING WABCO
116
SEAL RING OUTSIDE WABCO
119
PIN , Replaced By: N001444008235
119
PIN SHIFTING CYLINDER TO PAWL 8X20 MM
122
PIN SHIFTING CYLINDER TO YOKE 8X45 MM
125
SPRING WASHER SHIFTING CYLINDER TO YOKE
128
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
128
COTTER PIN LEVER TO ROD
131
WASHER BETWEEN THE SHIFTING RODS
134
SCREW FRONT SHIFTING ROD TO REAR SHIFTING ROD
137
NUT , Replaced By: N910113010000
137
NUT STRAP TO BRACKET
140
CONNECTOR , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6172680028
143
SHIFTING ROD REAR
149
ROD REAR
152
SHIFTING ROD REAR
152
SHIFTING ROD REAR
152
SHIFTING ROD REAR
152
SHIFTING ROD REAR
152
SHIFTING ROD REAR
152
SHIFTING ROD REAR
152
SHIFTING ROD REAR
152
SHIFTING ROD REAR
152
SHIFTING ROD REAR
152
SHIFTING ROD REAR
152
SHIFTING ROD REAR
152
SHIFTING ROD REAR
152
SHIFTING ROD REAR
152
SHIFTING ROD REAR
152
SHIFTING ROD REAR
152
SHIFTING ROD REAR
152
SHIFTING ROD REAR
152
SHIFTING ROD REAR
