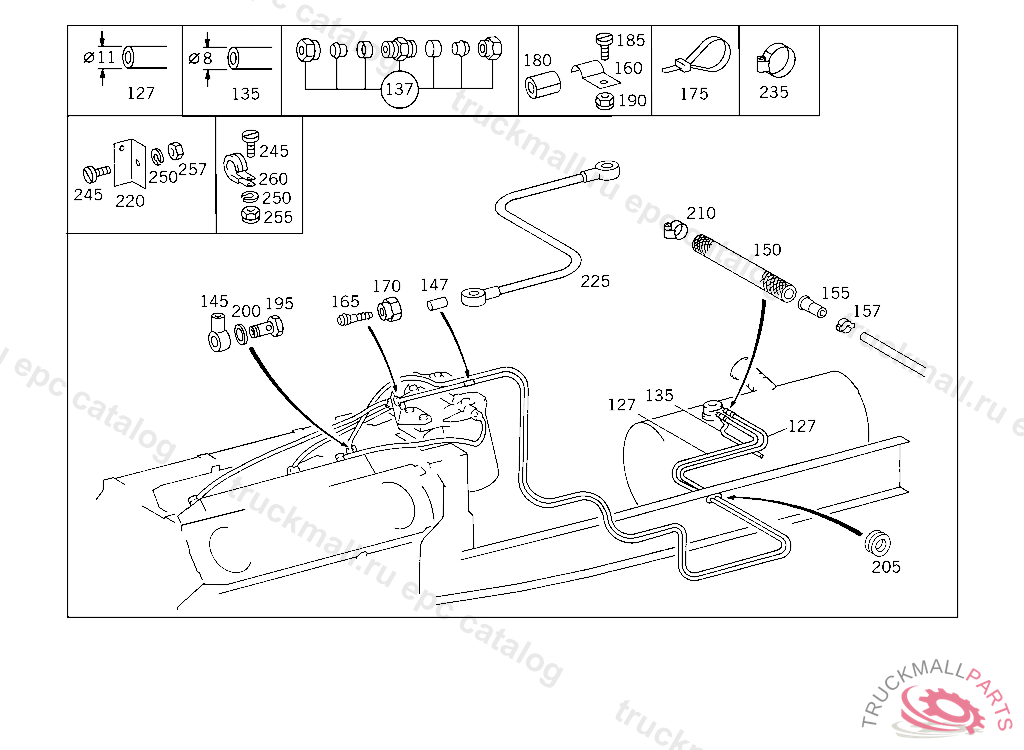

Поз.
Артикул
Описание
127
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
127
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
135
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
137
FITTING (PARTS KIT),LINE RUPTURE
145
BANJO UNION , Replaced By: N000000000363
147
INSULATING HOSE FEED 11X0.7 MM, ORDER BY THE METER
150
HOSE LEAK LINE
155
SLEEVE FEED
157
CLIP LEAK LINE
160
CLAMP , Replaced By: A1109950401
165
FITTING RETURN
170
NUT
175
LOOM TIE LINE MOUNTING
175
LOOM TIE LINE MOUNTING 280 MM
180
RUBBER PAD FUEL LINE TO BRACKET
185
SCREW , Replaced By: N007985005175
190
NUT TWO-WAY VALVE TO BRACKET
195
HOLLOW SCREW , Replaced By: N915036010108
200
SEAL RING FUEL LINE TO FEED PUMP
205
GROMMET LINE PASSAGE AT SIDE MEMBER 32/27 MM
210
CLAMP LINE CONNECTION
220
BRACKET FUEL LINE
225
LINE FUEL COMPENSATING
235
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
235
CLAMP , Replaced By: N916017011001
245
SCREW , Replaced By: N007985005175
250
LOCK WASHER T-FITTING TO BRACKET
255
NUT TWO-WAY VALVE TO BRACKET
257
NUT TACHOGRAPH TO BRACKET
260
CLAMP , Replaced By: N916016010211
999
NUT STRAP TO SUPPORT
999
SCREW BRACKET TO PROPELLER SHAFT BEARING HOUSING M 12X30
999
BRACKET AT SUPPORT
