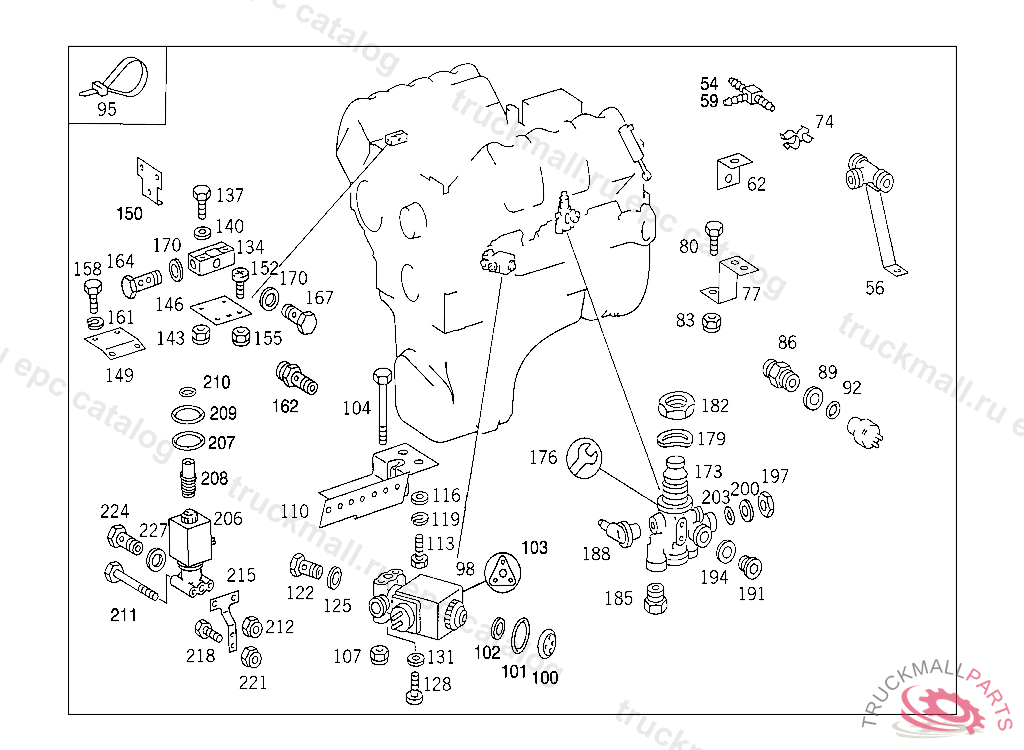

Поз.
Артикул
Описание
56
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
56
ELBOW FITTING
59
T-FITTING EXHAUST BRAKE LINE CONNECTION
86
FITTING CONNECTION TO STOP LIGHT SWITCH
86
FITTING CONNECTION TO STOP LIGHT SWITCH, Replaced By: A3899970272
89
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
89
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
92
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "40"
95
LOOM TIE LINE MOUNTING 280 MM
95
LOOM TIE LINE MOUNTING
98
VALVE (3/2-WAY SOLENOID VALVE) EKS
100
PROTECTIVE CAPWABCO
101
SEAL RINGBOSCH
101
SEAL RINGWABCO
102
SEAL RINGBOSCH
103
GASKET KITKNORR
104
SCREW VALVE TO BRACKET
104
SCREW VALVE TO BRACKET, Replaced By: N304014008002
107
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
107
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
107
NUT , Replaced By: N913004008001
110
BRACKET 3/2-WAY SOLENOID VALVE
110
BRACKET 3/2-WAY SOLENOID VALVE
113
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
113
SCREW , Replaced By: N304017008016
116
WASHER EXHAUST MUFFLER TO STRAP
116
WASHER , Replaced By: N000125008443
119
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
122
HOLLOW SCREW HEATING CONNECTION
125
SEAL RING LINE CONNECTION
128
SCREW TO PLUG THE FREE CONNECTIONS
131
SEAL RINGBOSCH
134
VALVE SHUTTLE VALVE, REPAIR IMPOSSIBLE
137
SCREW TWO-WAY VALVE TO BRACKET
140
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
140
WASHER , Replaced By: N009021005205
143
NUT TWO-WAY VALVE TO BRACKET
149
BRACKET 3/2-WAY SOLENOID VALVE
150
BRACKET CONNECTOR TO FRAME
152
SCREW CLAMP MOUNTING M 6X16
152
SCREW , Replaced By: N000000001146
155
NUT PUMP TO BRACKET
155
NUT , Replaced By: N913004006001
164
HOLLOW SCREW TWO-WAY VALVE,CONNECTIONS: "11,12"
167
HOLLOW SCREW FUEL LINE TO FEED PUMP
167
HOLLOW SCREW , Replaced By: N915036010108
170
SEAL RING FUEL LINE TO FEED PUMP
173
VALVE 3/2-WAY, EXHAUST BRAKE CONTROL BOSCH
173
VALVE 3/2-WAY, EXHAUST BRAKE CONTROL WABCO
176
REPAIR KIT 3/2-WAY VALVE WABCO
179
SPRING WASHER AT CAB FLOOR
182
NUT SUCTION LINE TO OIL PUMP
185
SCREW. UNION SCREW LINE CONNECTION
185
SCREW. UNION SCREW , Replaced By: A0009973734
188
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
188
BREATHER , Replaced By: A3933280065
191
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
191
SCREW PLUG , Replaced By: N000908012009
194
SEAL RING LINE CONNECTION
999
SHIM 3/2-WAY SOLENOID VALVE
