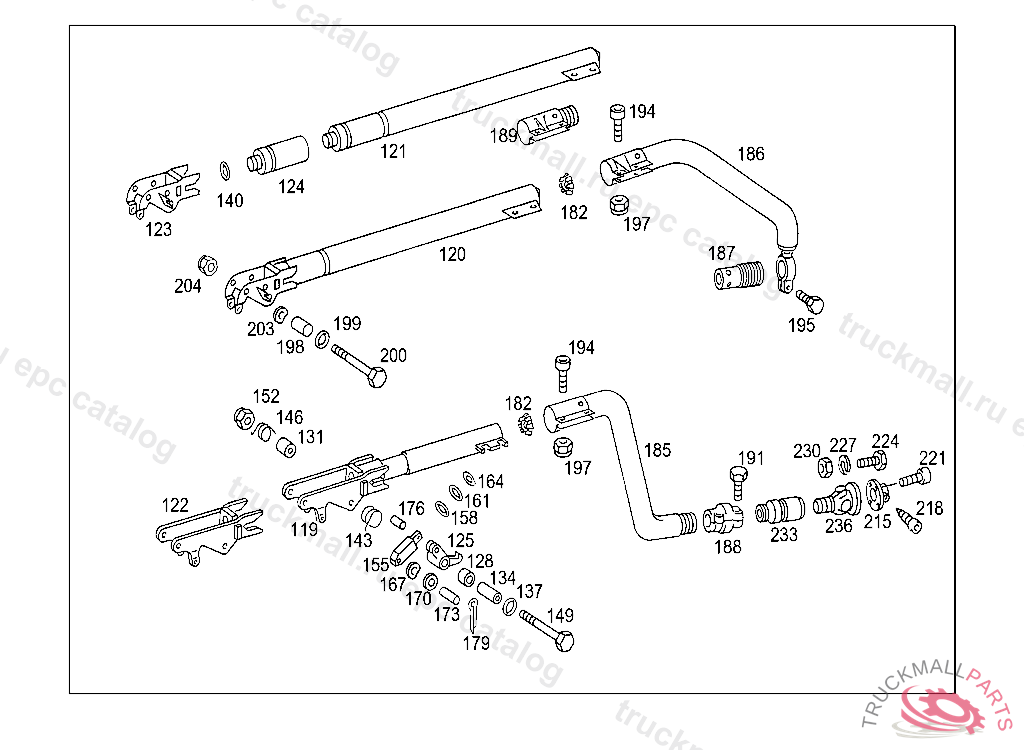

Поз.
Артикул
Описание
119
SHIFTING ROD (TELESCOPIC SHIFTING ROD),K 142857
120
SHIFTING ROD (TELESCOPIC SHIFTING ROD)
120
SHIFTING ROD (TELESCOPIC SHIFTING ROD)
121
SHIFTING TUBE (TELESCOPIC TUBE)
122
ROD END HYDRAULIC RELEASE
123
ROD END HYDRAULIC RELEASE
124
CONNECTOR REAR SHIFTING ROD TO CONNECTOR
125
PAWL SHIFTING ROD,5 443048
128
BUSHING PAWL TO ROD END,5 443048
131
BUSHING PAWL TO ROD END,5 443048
134
SPACER TUBE SHIFTING ROD TO SHIFT LEVER
137
ROUND CORD RING. SEAL RING ROD END
140
SEAL RING HYDRAULIC RELEASE
143
SPRING ROD END
146
SPRING ROD END
149
SCREW BRACKET TO BEARING BRACKET,K 274033
149
SCREW SHIFTING ROD TO SHIFT LEVER
152
NUT STRAP TO BRACKET
152
NUT , Replaced By: N910113010000
155
SHIFTING CYLINDER HYDRAULIC RELEASE TECHNOMATIK
155
SHIFTING CYLINDER HYDRAULIC RELEASE WABCO
158
SEAL RING PISTON RINGS WABCO
161
SEAL RING SCREW FITTING WABCO
164
SEAL RING OUTSIDE WABCO
167
SPRING WASHER SHIFTING CYLINDER TO YOKE
170
WASHER BETWEEN FRONT AND REAR SHIFTING TUBES
173
PIN SHIFTING CYLINDER TO YOKE
176
PIN SHIFTING CYLINDER TO YOKE 8X45 MM
176
PIN SHIFTING CYLINDER TO PAWL 8X20 MM
179
COTTER PIN LEVER TO ROD
179
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
182
WASHER BETWEEN THE SHIFTING RODS
185
SHIFTING ROD
185
ROD REAR
185
SHIFTING ROD REAR
185
SHIFTING ROD REAR
186
SHIFTING ROD
187
CONNECTOR , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6172680028
188
CLAMPING PIECE SHIFTING ROD TO TRANSMISSION
189
BRACKET FRONT SHIFTING ROD TO REAR SHIFTING ROD
191
SCREW CONNECTOR TO REAR SHIFTING ROD
191
SCREW , Replaced By: N304017010047
194
SCREW FRONT SHIFTING ROD TO REAR SHIFTING ROD
195
SCREW CONNECTOR TO REAR SHIFTING ROD
197
NUT STRAP TO BRACKET
197
NUT , Replaced By: N910113010000
198
SPACER TUBE SHIFTING ROD TO SHIFT LEVER
199
ROUND CORD RING. SEAL RING ROD END
200
SCREW BRACKET TO BEARING BRACKET,K 274033
200
SCREW SHIFTING ROD TO SHIFT LEVER
203
SPRING WASHER SHIFTING ROD TO SHIFT LEVER
204
NUT STRAP TO BRACKET
204
NUT , Replaced By: N910113010000
215
FLANGE TRANSMISSION
218
SCREW SHIFTING TUBE TO TRANSMISSION
221
SCREW BRACKET TO BATTERY/APPARATUS SUPPORT,5 433388
224
SCREW SHIFTING TUBE TO TRANSMISSION
227
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
230
NUT
233
CONNECTOR REAR SHIFTING ROD TO CONNECTOR
236
JOINT SHIFTING ROD TO TRANSMISSION
236
JOINT SHIFTING ROD TO TRANSMISSION
236
JOINT SHIFTING ROD TO TRANSMISSION
999
SHIFT MECHANISM ELECTROPNEUMATIC POWER SHIFT, 625.101,652-654 5 954065 625.120,655-659 5 957780
999
SEAL RING , Replaced By: A0009940747
999
LOCK , Replaced By: A0009945448
999
SCREW. UNION SCREW , Replaced By: A0009973734
999
HANDLE 3/2-WAY VALVE TO BRACKET
999
HANDLE TRANSFER CASE ACTUATION
999
VALVE LONGITUDINAL DIFFERENTIAL LOCK CONTROL BOSCH
999
NUT 4/3-WAY VALVE TO SUBSTRUCTURE
999
HANDLE (SHIFT LEVER HANDLE)
999
KNOB (SHIFT LEVER HANDLE), TO BE ADAPTED DURING ASSEMBLY
999
COVER SHIFT LEVER KNOB LESS GEARSHIFT DIAGRAM
999
COVER 6-SPEED,SHIFT LEVER KNOB
999
PULL ROD
999
PULL ROD
999
SHIFT LEVER
999
LEVER SHIFTING TRANSFER
999
BRACKET
999
BRACKET LEVER
999
LEVER , Replaced By: A6522602537
999
SHIFTING ROD (TELESCOPIC SHIFTING ROD),K 131521
999
BOOT SHIFT LEVER
999
BRACKET
999
SHIFTING ROD REAR
999
BRACKET SHIFT MECHANISM
999
SHIFT LEVER
999
COVER COVERING
999
BOOT SHIFT LEVER
999
COVERING SHIFT MECHANISM
999
GUMMED LABEL , Replaced By: A9415842238
999
GUMMED LABEL GEARSHIFT DIAGRAM
999
GUIDE SIGN P.T.O. CONTROL
999
GUMMED LABEL "EMERGENCY SHIFT", IN GERMAN,ENGLISH,FRENCH
999
JOINT , Replaced By: A0009965245
