Главная
›
Mercedes
›
TRUCK
›
2422 L,2427 L,2524 L, 2527 L
›
653.417
›

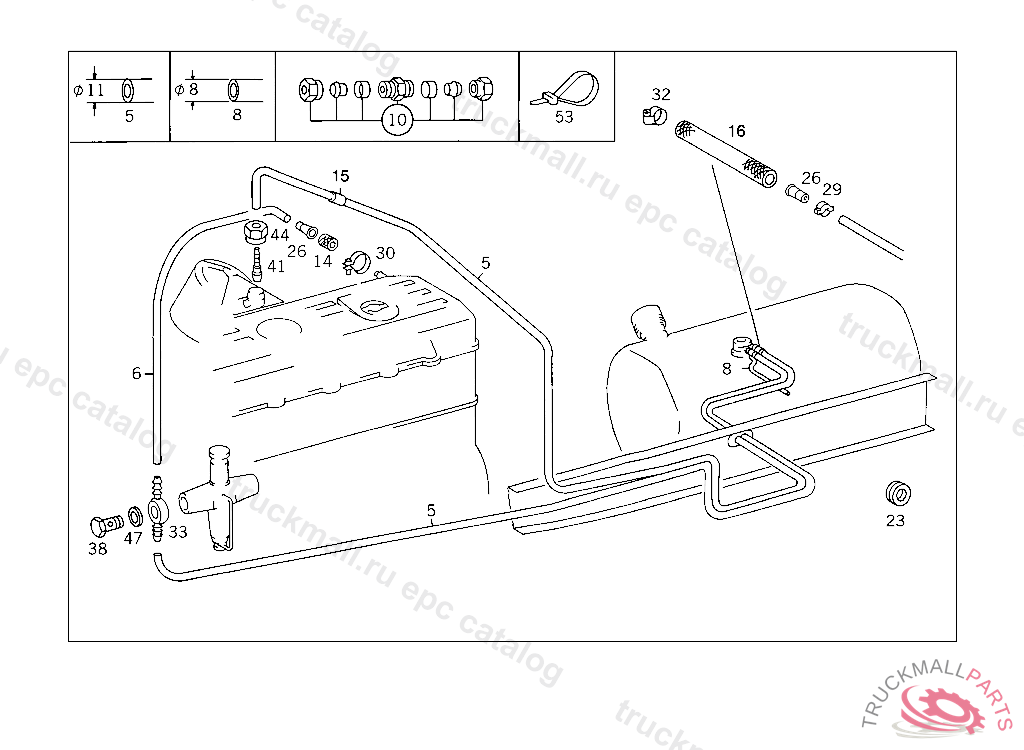

47 FUEL SYSTEM
›
060 FUEL LINES AND BREATHING IL. 2
Mercedes N916002010100 - ХОМУТ
2422 L,2427 L,2524 L, 2527 L 653.417
47 FUEL SYSTEM - 060 FUEL LINES AND BREATHING IL. 2
Поз.
Артикул
Описание
5
A0089975482
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
8
A0089979082
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
10
A0039979172
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
10
A0029905971
FITTING (PARTS KIT),LINE RUPTURE
14
A0009872927
PLASTIC PIPE FUEL LINE 16X2 MM, ORDER BY THE METER
15
N040621011200
INSULATING HOSE FEED 11X0.7 MM, ORDER BY THE METER
16
A3054760126
HOSE LEAK LINE
23
A3969970281
GROMMET FOR PASSAGE OF LINE
26
N915062008000
SLEEVE FEED
29
A0029978790
CLIP LEAK LINE
30
N916002010100
CLAMP LINE MOUNTING
32
A0059972790
HOSE CLAMP FUEL LINE TO SENDER UNIT
32
N916002016100
CLAMP , Replaced By: A0059972790
38
N915036010108
HOLLOW SCREW FUEL LINE TO FEED PUMP
38
N915036010204
HOLLOW SCREW , Replaced By: N915036010108
41
A0019974972
FITTING RETURN
44
N915017010200
NUT. UNION NUT RETURN
47
N007603014405
SEAL RING FUEL LINE TO FEED PUMP
53
A0019978490
LOOM TIE LINE MOUNTING
53
A0019978390
LOOM TIE LINE MOUNTING 280 MM
