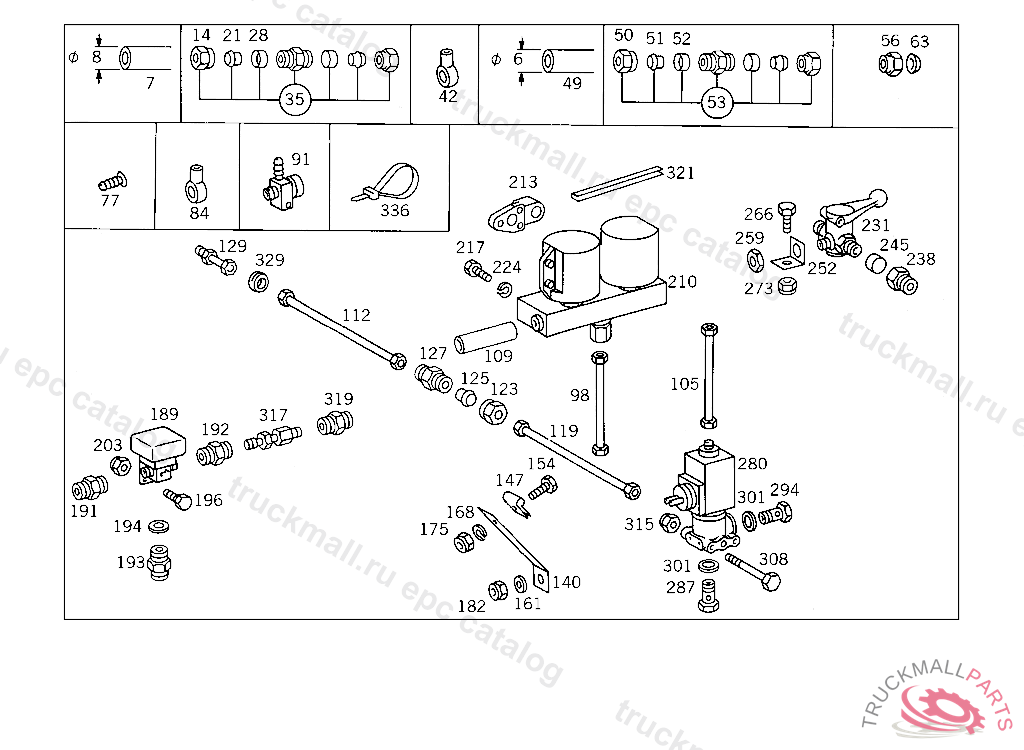

Поз.
Артикул
Описание
7
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
14
UNION NUT LINE CONNECTION
21
GLAND LINE CONNECTION
28
SLEEVE LINE CONNECTION
35
FITTING (PARTS KIT),LINE RUPTURE
42
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
49
PLASTIC PIPE RISING PIPE 4X6 MM
49
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
50
UNION NUT
51
SEAL CONE
51
GLAND , Replaced By: A0019901667
52
SLEEVE LEAK LINE
53
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
56
NUT LINE CONNECTION
56
NUT LINE CONNECTION
56
NUT LINE CONNECTION
56
NUT , Replaced By: A0019903254
63
SEAL CONE LINE CONNECTION
63
SEAL CONE LINE CONNECTION
63
SEAL CONE , Replaced By: A0019904567
63
SEAL CONE LINE CONNECTION
63
SEAL CONE LINE CONNECTION
63
SEAL CONE , Replaced By: A0019904567
77
SLEEVE LINE CONNECTION
84
BANJO UNION HOSE WIDTH, / I.D., 4/14 MM,K 169123
84
BANJO UNION , Replaced By: N000000000364
84
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
91
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION TO 008 997 90 82
98
LINE FROM PARTICLE FILTER TO PRESSURE SWITCH
98
LINE FROM PARTICLE FILTER TO PRESSURE SWITCH
98
LINE , Replaced By: A6524911537, +001A0019903354, +001A0019904667
98
LINE , Replaced By: A6524911537, +001A0019903354, +001A0019904667
98
LINE FROM SEPARATION POINT TO 2/2-WAY VALVE,5 512267
98
LINE , Replaced By: A6524910037, +002A0019902754, +001A0019903967, +001A0019904167
105
LINE , Replaced By: A6524910737, +002A0019902654, +002A0019903867, +002A0019904067
105
LINE FROM RESERVOIR TO 2/2-WAY VALVE,5 512267
105
LINE , Replaced By: A0004290001
105
LINE , Replaced By: A6524901266
105
LINE , Replaced By: A0004290001
105
LINE FROM FITTING TO VALVE 6X1 MM, LENGTH AVAILABLE 3000 MM
109
LINE ACTIVATING AGENT RESERVOIR,CONNECTION: "30",5 512267
112
LINE , Replaced By: A6524910037, +002A0019902754, +002A0019903967, +002A0019904167
112
LINE FROM SEPARATION POINT TO 2/2-WAY VALVE,5 512267
112
LINE , Replaced By: A6524911537, +001A0019903354, +001A0019904667
112
LINE FROM PARTICLE FILTER TO PRESSURE SWITCH
119
LINE , Replaced By: A6524910037, +002A0019902754, +001A0019903967, +001A0019904167
119
LINE FROM SEPARATION POINT TO 2/2-WAY VALVE,5 512267
119
LINE , Replaced By: A6524911537, +001A0019903354, +001A0019904667
119
LINE , Replaced By: A6524911537, +001A0019903354, +001A0019904667
119
LINE , Replaced By: A6524911537, +001A0019903354, +001A0019904667
119
LINE FROM PARTICLE FILTER TO PRESSURE SWITCH
123
UNION NUT LINE CONNECTION
123
UNION NUT LINE MOUNTING
125
GLAND LINE MOUNTING
125
GLAND LINE MOUNTING
127
FITTING BETWEEN THE LINES,5 512267
127
CONNECTION FITTING , Replaced By: A0029905971
127
FITTING (PARTS KIT),LINE RUPTURE
129
THREADED UNION ,5 512268
140
BRACKET , Replaced By: A3184923441
140
BRACKET COVERING, TO BE ADAPTED DURING ASSEMBLY
147
CLAMP LINE MOUNTING
154
SCREW , Replaced By: N304017006016
154
SCREW PUMP TO BRACKET
161
WASHER , Replaced By: N000433010510
161
WASHER VIBRATION ABSORBER TO BRACKET
168
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
175
NUT , Replaced By: N913004006001
175
NUT PUMP TO BRACKET
182
NUT , Replaced By: N910113010000
182
NUT STRAP TO BRACKET
189
VALVE (SHUT-OFF VALVE),PNEUMATIC
191
FITTING SHUT-OFF VALVE,CONNECTION: "10"
192
FITTING SHUT-OFF VALVE,CONNECTION: "20"
193
FITTING SHUT-OFF VALVE,CONNECTION: "40"
194
SEAL RING SHUT-OFF VALVE,CONNECTION: "40"
196
SCREW ELECTRIC CABLE TO FUSE BOX
203
NUT , Replaced By: N913002004001
203
NUT ATTACHMENT, MARKER LIGHT
210
SWITCH (PRESSURE SWITCHING UNIT)
213
FITTING PRESSURE SWITCH
217
SCREW , Replaced By: N304017008016
217
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
224
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
231
VALVE (BALL COCK),5 512267
238
ADAPTER FITTING BALL COCK,CONNECTION: "10",5 512267
245
SEAL RING FUEL LINE TO FEED PUMP
252
BRACKET BALL COCK,5 512267
259
NUT FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
266
SCREW , Replaced By: N304017006016
266
SCREW PUMP TO BRACKET
273
NUT PUMP TO BRACKET
273
NUT , Replaced By: N913004006001
280
VALVE (3/2-WAY SOLENOID VALVE) EKS
280
VALVE (3/2-WAY SOLENOID VALVE) WABCO
280
VALVE (3/2-WAY SOLENOID VALVE) KNORR
280
VALVE , Replaced By: A0049975736
280
VALVE (3/2-WAY SOLENOID VALVE) WABCO
287
HOLLOW SCREW HEATING CONNECTION
294
HOLLOW SCREW LINE CONNECTION
301
SEAL RING LINE CONNECTION
308
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
315
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
315
NUT , Replaced By: N913004008001
317
VALVE (CHECK VALVE)
319
CONNECTION FITTING FROM RESERVOIR TO SHUT-OFF VALVE
321
EDGE GUARD SECTION AT SHOCK ABSORBER BRACKET, ORDER BY THE METER
329
GROMMET LINE PASSAGE AT SIDE MEMBER
336
LOOM TIE LINE MOUNTING 280 MM
999
TEST CONNECTION
999
GASKET KITKNORR
999
SWITCH , Replaced By: A0035455714
999
SEAL RING LINE CONNECTION
