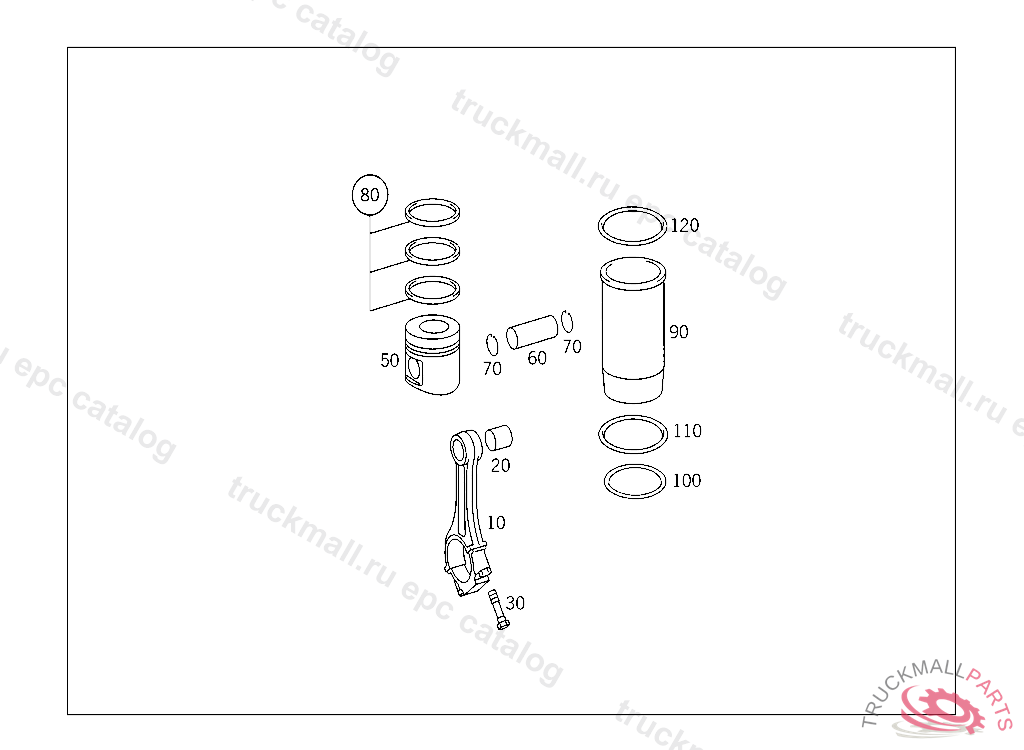

Поз.
Артикул
Описание
10
CONNECTING ROD
20
PISTON PIN BUSHINGTO 447 030 03 20
20
PISTON PIN BUSHINGTO 447 030 03 20
30
SCREW CONNECTING ROD COVER TO CONNECTING ROD
50
PISTON WITH PISTON RINGS MAHLE
60
PISTON PIN
70
SNAP RING
80
PISTON RING PARTS KIT
90
CYLINDER LINER ,948117
100
SEAL RING CYLINDER LINER TO CYLINDER CRANKCASE, TOP, GROOVE: II
110
SEAL RING CYLINDER LINER TO CYLINDER CRANKCASE, BOTTOM III, IV
120
SEAL RING CYLINDER LINER TO CYLINDER CRANKCASE, TOP 0.50 MM
120
SEAL RING CYLINDER LINER TO CYLINDER CRANKCASE, TOP 0.15 MM
