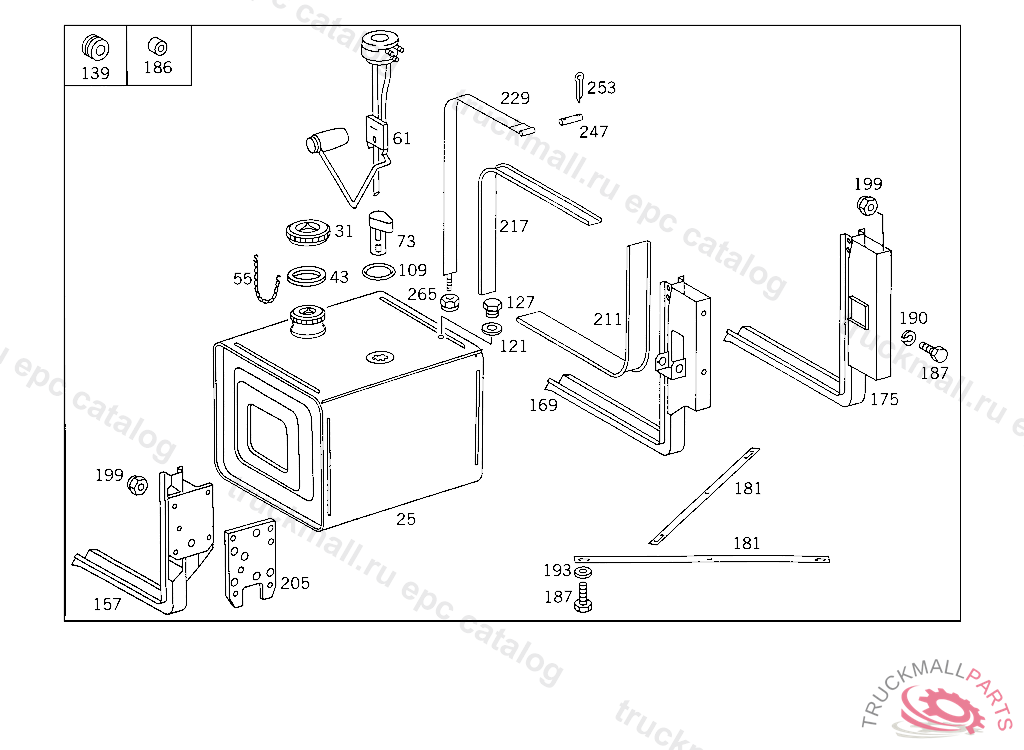

Поз.
Артикул
Описание
25
FUEL TANK200 L
31
FILLER CAP
31
FILLER CAP , Replaced By: A0004700305
43
SEAL RING
55
CHAIN FILLER CAP
61
SENDER UNIT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 169122, Replaced By: A0115426717, +001A0005409917
61
SENDER UNIT FUEL GAUGE, UP TO IDENT NO. K 169122, FROM IDENT NO. SEE STANDARD VERSION
61
SENDER UNIT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 169122, Replaced By: A0115426517, +001A0005409917
73
FUEL STRAINER FUEL TANK,K 169123
73
FUEL STRAINER FUEL TANK,K 169122
109
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
109
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
121
SEAL RING AT TANK
121
SEAL RING FUEL LINE TO FEED PUMP
121
SEAL RING FUEL LINE TO FEED PUMP
121
SEAL RING AT TANK
121
SEAL RING FUEL LINE TO FEED PUMP
121
SEAL RING FUEL LINE TO FEED PUMP
121
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
127
SCREW PLUG , Replaced By: N007604014110
127
SCREW PLUG FUEL TANK
127
SCREW PLUG , Replaced By: N000908014009
127
SCREW PLUGTO 000 553 03 05,000 553 18 05,
127
SCREW PLUG FUEL TANK
127
SCREW PLUGTO 000 553 03 05,000 553 18 05,
127
SCREW PLUG FUEL TANK
127
SCREW PLUGTO 000 553 03 05,000 553 18 05,
127
SCREW PLUGTO 000 553 03 05,000 553 18 05,
127
SCREW PLUG AT TANK
139
GROMMET
139
GROMMET LINE MOUNTING 50/45 MM
139
GROMMET FUEL LINE THRU FRAME SIDE MEMBER
139
GROMMET FOR PASSAGE OF LINE
139
GROMMET FUEL LINE THRU FRAME SIDE MEMBER
139
GROMMET LINE PASSAGE AT SIDE MEMBER
157
SUPPORT FRONT TANK
157
SUPPORT FUEL TANK TO FRAME
157
SUPPORT FUEL TANK TO FRAME
157
SUPPORT FUEL TANK TO FRAME
169
BRACKET FUEL TANK TO FRAME
175
BRACKET FUEL TANK TO FRAME
175
SUPPORT FUEL TANK TO FRAME
175
SUPPORT FUEL TANK,5 150326
181
REINFORCEMENT REINFORCEMENT RAIL TO CONSOLE
181
SHIM FUEL TANK
181
REINFORCEMENT REINFORCEMENT RAIL TO CONSOLE,750 MM
181
REINFORCEMENT REINFORCEMENT RAIL TO CONSOLE
186
SPACER TUBE BRACKET TO CONSOLE
187
SCREW , Replaced By: N308676014012
187
SCREW SUPPORT TO SIDE MEMBER M 14X45
187
SCREW SUPPORT TO SIDE MEMBER M 14X45
187
SCREW BRACKET TO SIDE MEMBER M 14X55,5 543914
187
SCREW , Replaced By: N308676014003
187
HEXAGON HEAD BOLT. SCREW ENGINE MOUNTING TO SUPPORT,ON CLUTCH END M 14X30
187
SCREW , Replaced By: N308676014008
187
SCREW MOUNTING TO CONSOLE M 14X35
187
SCREW MOUNTING TO CONSOLE M 14X35
187
SCREW BRACKET TO SIDE MEMBER M 14X1.5X50,5 543914
187
SCREW BEARING BRACKET TO SIDE MEMBER M 14X1.5X48
187
SCREW , Replaced By: A9429901304
187
SCREW APPARATUS SUPPORT TO FRAME
187
SCREW SUPPORT TO SIDE MEMBER M 14X45
187
SCREW MOUNTING TO CONSOLE M 14X55
187
SCREW CONSOLE TO SIDE MEMBER
187
SCREW , Replaced By: N308676014020
187
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
187
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
187
SCREW BRACKET TO SIDE MEMBER
187
SCREW , Replaced By: N308765014006
187
SCREW SUPPORT TO SIDE MEMBER M 14X90
187
SCREW , Replaced By: N308765016002
187
HEXAGON HEAD BOLT. SCREW TRAILER COUPLING TO REAR CROSS MEMBER,5 734466
187
HEXAGON HEAD BOLT. SCREW ENGINE MOUNTING TO SUPPORT,ON CLUTCH END M 14X30
187
SCREW BRACKET TO SIDE MEMBER M 14X1.5X50,5 543914
187
SCREW ROD TO TRANSFER CASE M 14X75
187
SCREW PROPELLER SHAFT TO TRANSMISSION
187
SCREW RUBBER MOUNTING TO SUPPORTING ARM M 16X1.5X80
187
SCREW APPARATUS SUPPORT TO FRAME SIDE MEMBER M 14X1.5X95
190
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
190
LOCK WASHERROCKINGER TYP 59 G140,59 G150
193
WASHER
199
NUT , Replaced By: N910113014000
199
NUT STEERING SUPPORT TO FRAME
199
NUT STEERING SUPPORT TO FRAME
199
NUT PARTICLE FILTER M14
199
NUT SUPPORT TO SIDE MEMBER
205
SHIM FUEL TANK TO CONSOLE
211
PAD FUEL TANK TO CONSOLE, ORDER BY THE METER
211
PAD FUEL TANK TO CONSOLE, ORDER BY THE METER
211
PAD FUEL TANK TO CONSOLE, ORDER BY THE METER
217
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
217
PAD , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6254750620
217
PAD TANK TO CONSOLES
217
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
229
STRAP FUEL TANK TO SUPPORT
247
PIN STRAP TO SUPPORT
247
PIN STRAP TO SUPPORT
253
COTTER PIN STRAP TO SUPPORT
253
COTTER PIN STRAP TO SUPPORT
253
COTTER PIN STRAP TO SUPPORT
265
NUT STRAP TO SUPPORT
265
NUT SUPPORT TO SIDE MEMBER
999
BRACKET FUEL LINE TO CONSOLE
