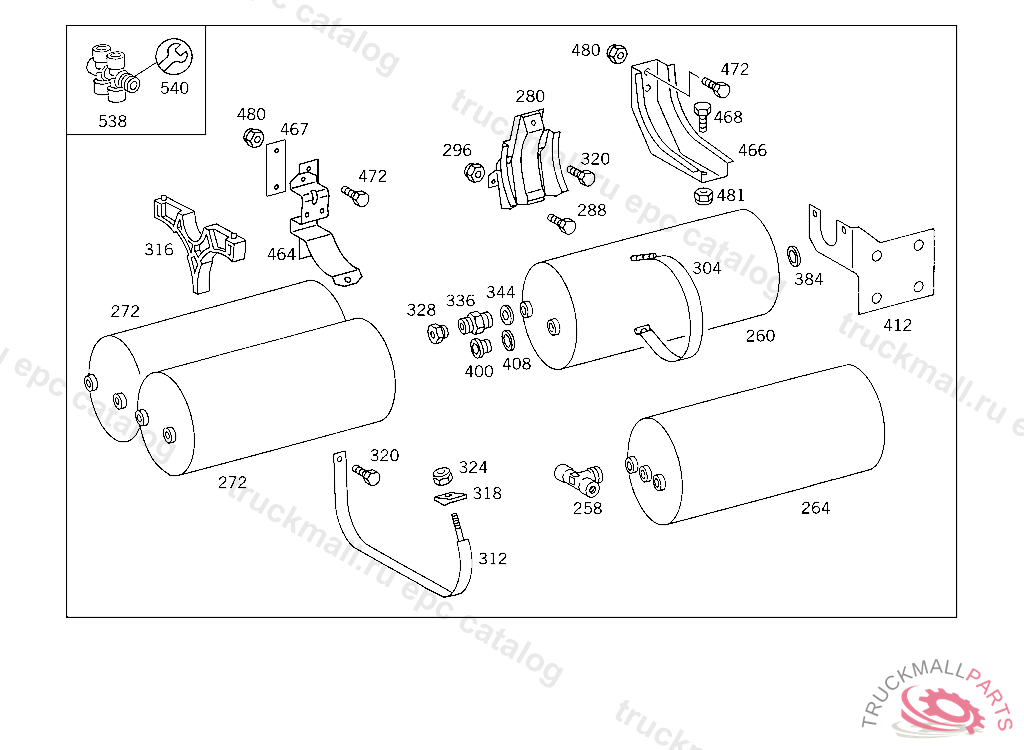

Поз.
Артикул
Описание
258
FITTING FRONT-AXLE/REAR-AXLE REGULATING SOLENOID VALVE,CONNECTIONS: "20,21,22"
260
RESERVOIR ,5 563826
264
RESERVOIR COMPRESSED AIR 20 L
272
RESERVOIR30 L, TO VOSS 230, Replaced By: A0054322301, +002A0009870446, +002A0009940203, +002A0049978272
272
RESERVOIR30 L, TO VOSS 232, FOR VEHICLES WITH VOSS 230 CONNECTOR: ADD. MOUNT FITTING "A 004 997 82 72" WITH O-RING "A 000 987 04 46" AND THRUST RING "A 000 997 02 03" TO AIR RESERVOIR
272
RESERVOIR40 L, TO VOSS 230, Replaced By: A0054322901, +002A0009870446, +002A0009940203, +002A0049978272
272
RESERVOIR40 L, TO VOSS 232, FOR VEHICLES WITH VOSS 230 CONNECTOR: ADD. MOUNT FITTING "A 004 997 82 72" WITH O-RING "A 000 987 04 46" AND THRUST RING "A 000 997 02 03" TO AIR RESERVOIR
280
BRACKET AIR RESERVOIR TO APPARATUS SUPPORT
288
SCREW , Replaced By: N304017010043
288
SCREW BRACKET TO CONSOLE
288
SCREW , Replaced By: A0089907401
288
SCREW BRACKET TO SIDE MEMBER,K 168169
296
NUT , Replaced By: N910113010000
296
NUT STRAP TO BRACKET
296
NUT , Replaced By: N913004008001
296
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
304
STRAP , Replaced By: A6554900942
304
STRAP PARTICLE FILTER
312
STRAP SERVICE BRAKE AIR RESERVOIR
316
BASE AIR RESERVOIR,STRAP
318
BASE BATTERY MASTER SWITCH
320
SCREW END PIECE TO EXHAUST PIPE M 10X25
324
NUT , Replaced By: N910113010000
324
NUT STRAP TO BRACKET
328
SCREW. UNION SCREW LINE CONNECTION
328
SCREW. UNION SCREW LINE CONNECTION
328
SCREW. UNION SCREW LINE CONNECTION
328
SCREW. UNION SCREW LINE CONNECTION
328
SCREW. UNION SCREW LINE CONNECTION
328
SCREW. UNION SCREW LINE CONNECTION
336
FITTING LINE CONNECTION
336
FITTING LINE CONNECTION
336
FITTING LINE CONNECTION
344
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
344
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
344
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
344
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
384
WASHER , Replaced By: N000125010532
384
WASHER RADIATOR TO RUBBER MOUNTING
384
WASHER RADIATOR TO RUBBER MOUNTING
400
SCREW PLUG , Replaced By: N000908022011
400
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
400
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
400
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
408
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
408
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
408
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
412
BRACKET TEST CONNECTION
464
BRACKET AIR RESERVOIR,5 765578
466
BRACKET REAR EXHAUST MUFFLER, TO BE ADAPTED DURING ASSEMBLY
466
BRACKET REAR EXHAUST MUFFLER, TO BE ADAPTED DURING ASSEMBLY
467
BASE SUPPORT TO SIDE MEMBER
468
SCREW STRUT TO FRAME, LEFT
468
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
468
SCREW , Replaced By: N910105010009
472
SCREW BRACKET TO EXHAUST MUFFLER BRACKET
472
SCREW BRACKET TO CONSOLE M 12X25
472
SCREW BRACKET TO SIDE MEMBER M 12X30
472
SCREW BRACKET TO SIDE MEMBER M 12X40
472
SCREW BRACKET TO FRAME SIDE MEMBER
480
NUT END PIECE TO EXHAUST PIPE
480
NUT BRACKET TO BEARING BRACKET
480
NUT BRACKET TO BEARING BRACKET
480
NUT END PIECE TO EXHAUST PIPE
481
NUT EXHAUST PIPE TO SIDE MEMBER
538
DISTRIBUTOR WITH CHECK VALVE
540
BRACKET TRAILER CONTROL VALVE
540
REPAIR KIT CHECK VALVE VOSS
999
T-FITTING
999
GROMMET FOR PASSAGE OF LINE
999
BRACKET COMPRESSED AIR LINES, SIMPLE PART-PLEASE HAVE SHOP MADE
999
STRAP AIR RESERVOIR
999
BRACKET AIR RESERVOIR
999
BASE AIR RESERVOIR STRAP
999
BRACKET AIR RESERVOIR,5 765578
