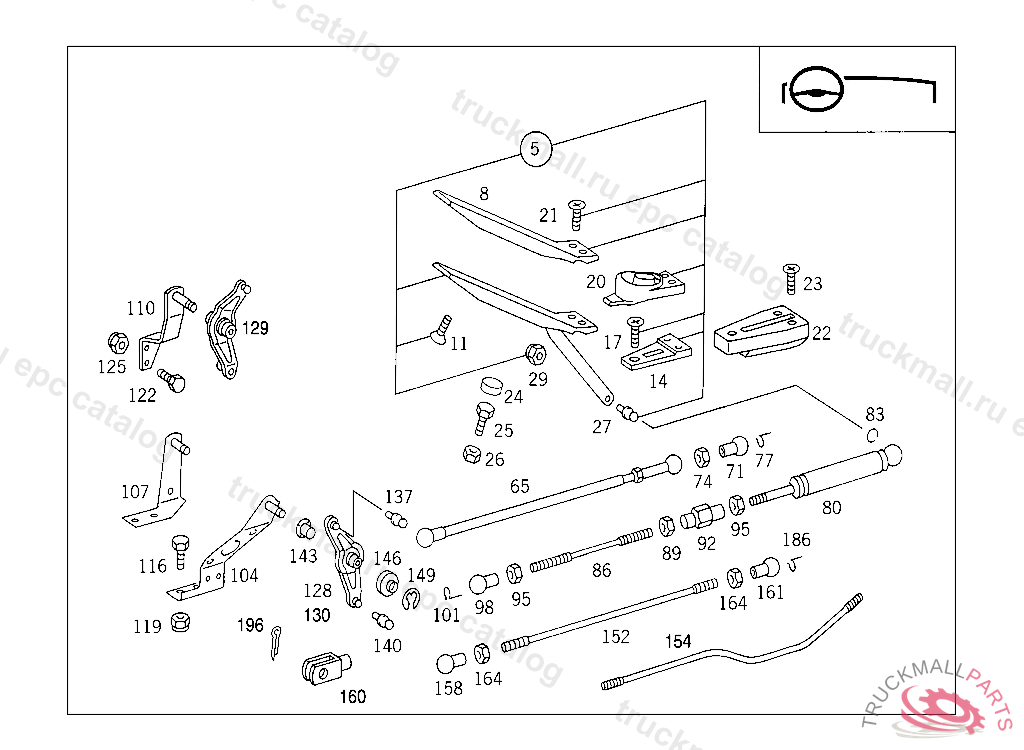

Поз.
Артикул
Описание
5
ACCELERATOR PEDAL (PARTS KIT), RANGE OF DELIVERY INCLUDES: 1X 655 301 00 93, 3X 000965 006077
8
PAD ACCELERATOR PEDAL
11
SCREW ACCELERATOR PEDAL
14
SHIM ACCELERATOR PEDAL
17
SCREW ACCELERATOR PEDAL TO CAB M 6X20
20
BOOT ACCELERATOR PEDAL
21
SCREW ACCELERATOR PEDAL TO CAB M 6X25
22
GUIDE RAIL ACCELERATOR PEDAL TO FLOOR PLATE
23
SCREW GUIDE RAIL RETROFIT M 6X35, BORE THREADED HOLES IN CAB FLOOR TO 6.5MM
24
STOP ACCELERATOR PEDAL
25
SCREW VALVE TO BRACKET
25
SCREW VALVE TO BRACKET, Replaced By: N304014008002
26
NUT
27
BALL PIVOT LOAD SENSOR
29
NUT PUMP TO BRACKET
29
NUT , Replaced By: N913004006001
65
ROD FROM CONTROL SHAFT BEARING TO INTERMEDIATE LEVER
65
ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER
71
BALL SOCKET PULL ROD TO LEVER
74
NUT BALL PIVOT TO LEVER
77
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
110
BEARING BRACKET INTERMEDIATE BEARING
116
SCREW END PIECE TO EXHAUST PIPE M 10X25
122
SCREW , Replaced By: N304017008034
122
SCREW BRACKET TO CROSS CONNECTION STRUT
125
NUT , Replaced By: N913004008001
125
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
125
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
129
LEVER INTERMEDIATE BEARING
130
LEVER (INTERMEDIATE LEVER)
137
BALL STUD. BALL PIVOT TOP B10X4,5 MM
140
BALL PIVOT BOTTOM B13X5 MM
143
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
146
COVERING INTERMEDIATE BEARING
149
LOCK PLATE INTERMEDIATE BEARING
152
PULL ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER
154
ROD FROM INTERMEDIATE LEVER TO ENGINE CONTROL SHAFT,K 093739
158
BALL SOCKET ROD TO BALL PIVOT
160
YOKE SHIFTING ROD TO INTERMEDIATE LEVER
161
BALL SOCKET ROD TO BALL PIVOT
164
NUT
186
SECURING CLIP. CIRCLIP
196
COTTER PIN ROD TO INTERMEDIATE LEVER
196
COTTER PIN CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
