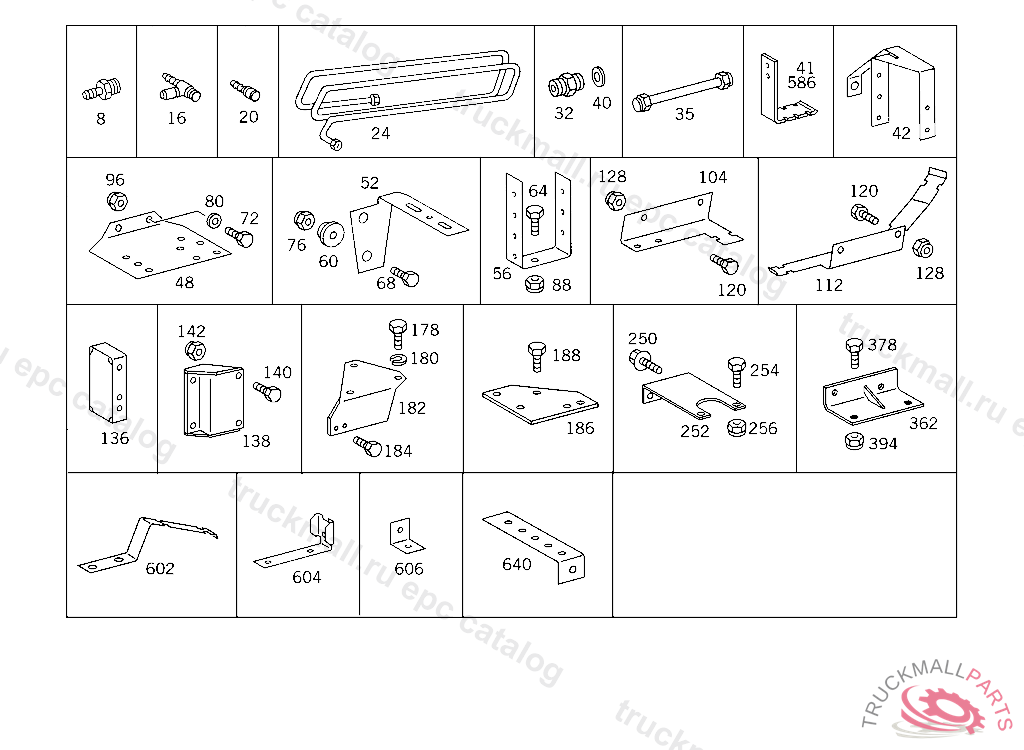

Поз.
Артикул
Описание
8
FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
16
T-FITTING
20
CONNECTOR , Replaced By: A0029905478
20
CONNECTOR HOSE WIDTH, 6 MM,TO M16
24
LINE WITH SPIRAL
24
LINE APPARATUS SUPPORT
24
LINE WITH SPIRAL
24
LINE APPARATUS SUPPORT
32
CONNECTION FITTING ENGINE AIR COMPRESSOR,CONNECTION: "15"
35
LINE FROM RESERVOIR I TO RESERVOIR II
35
LINE AIR RESERVOIR
40
WASHER BRACKET TO LEFT SIDE MEMBER
40
WASHER , Replaced By: A3609902340
41
BRACKET COMPRESSED AIR PIPING
42
BRACKET LINE MOUNTING
48
BRACKET COMPRESSED AIR LINE MOUNTING
52
BRACKET COMPRESSED AIR LINE MOUNTING
56
BRACKET COMPRESSED AIR LINE MOUNTING
60
BUSHING COMPRESSED AIR LINE MOUNTING,K 062171
64
SCREW BRACKET TO SIDE MEMBER,K 168169
64
SCREW , Replaced By: A0089907401
68
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
68
SCREW , Replaced By: N910105010009
72
SCREW HAND PUMP TO BRACKET
72
SCREW END PIECE TO EXHAUST PIPE M 10X25
76
NUT EXHAUST PIPE TO SIDE MEMBER
80
WASHER STRUT TO CROSS MEMBER
80
WASHER , Replaced By: N007349010007
88
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
88
NUT , Replaced By: N913004008001
96
NUT STRAP TO BRACKET
96
NUT , Replaced By: N910113010000
104
BRACKET COMPRESSED AIR LINE MOUNTING
112
BRACKET COMPRESSED AIR LINE MOUNTING
120
SCREW END PIECE TO EXHAUST PIPE M 10X25
128
NUT , Replaced By: N910113010000
128
NUT STRAP TO BRACKET
136
CONSOLE APPARATUS SUPPORT TO SIDE MEMBER,FRONT
138
BRACKET APPARATUS SUPPORT TO SIDE MEMBER,REAR
140
SCREW VERTICAL TAIL PIPE BEHIND CAB
140
SCREW SUPPORT TO SIDE MEMBER M14X40
140
SCREW BEARING BRACKET TO CROSS MEMBER M 14X95
140
SCREW , Replaced By: N000000001441
140
HEXALOBULAR BOLT BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT M 10X50
142
NUT PARTICLE FILTER M14
178
SCREW BRACKET TO PROPELLER SHAFT BEARING HOUSING M 12X30
180
LOCK WASHER FITTING TO BRACKET
182
BRACKET AIR DEHYDRATOR
184
SCREW MOUNTING TO CONSOLE
184
FITTING , Replaced By: A6554290141
184
FITTING AIR DEHYDRATOR
186
BRACKET AIR DEHYDRATOR
188
SCREW STRUT TO FRAME, LEFT
250
SCREW BRACKET TO BATTERY/APPARATUS SUPPORT
252
BRACKET FOUR-CIRCUIT PROTECTIVE VALVE
254
SCREW BRACKET TO FRAME M 8X35
256
NUT BRACKET TO BRACKET
256
RESERVOIR ,5 563826
362
BRACKET AIR RESERVOIR TO LEFT SIDE MEMBER 20 L
378
SCREW SUPPORT TO SIDE MEMBER M14X40
394
NUT PARTICLE FILTER M14
586
BRACKET COMPRESSED AIR PIPING
602
BRACKET COMPRESSED AIR LINES, SIMPLE PART-PLEASE HAVE SHOP MADE
604
BRACKET COMPRESSED AIR PIPING
606
ANGLE LINE MOUNTING
640
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
999
GROMMET FOR PASSAGE OF LINE
999
STRAP AIR RESERVOIR
999
BRACKET AIR RESERVOIR
999
BASE AIR RESERVOIR STRAP
999
BRACKET AIR RESERVOIR,5 765578
