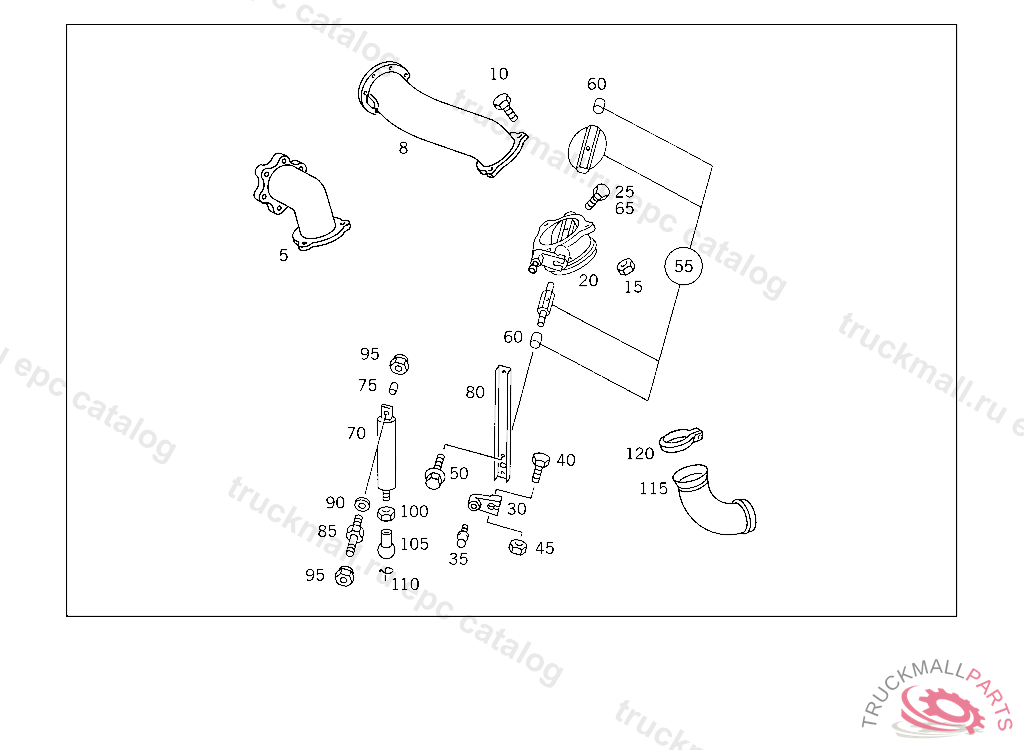

Поз.
Артикул
Описание
5
EXHAUST PIPE CONNECTING PIPE
5
PIPE ELBOW CONNECTING PIPE
8
FLANGE RIGHT
8
FLANGE LEFT
10
SCREW CONNECTING PIPE TO EXHAUST MANIFOLD
15
NUT END PIECE TO EXHAUST PIPE
20
THROTTLE HOUSING EXHAUST BRAKE,RIGHT
20
THROTTLE HOUSING EXHAUST BRAKE,LEFT
20
THROTTLE HOUSING , Replaced By: A4421404953
20
THROTTLE HOUSING , Replaced By: A4421404853
20
THROTTLE HOUSING LEFT
25
SCREW SHAFT TO THROTTLE VALVE
30
LEVER LEVER TO EXHAUST-BRAKE THROTTLE VALVE SHAFT
35
BALL PIVOT POWER CYLINDER TO THROTTLE VALVE LEVER
40
SCREW LEVER TO THROTTLE VALVE SHAFT
45
NUT BATTERY MOUNTING
45
NUT CYLINDER TO BRACKET TO0002902112
50
SCREW BRACKET TO THROTTLE HOUSING
55
VALVE PARTS KIT
60
BUSHING
65
SCREW SHAFT TO THROTTLE VALVE
70
WORKING CYLINDER (POWER CYLINDER),EXHAUST BRAKE
70
CYLINDER (POWER CYLINDER),EXHAUST BRAKE, Replaced By: A0004307926
70
CYLINDER , Replaced By: A0004305926
75
BUSHING"WABCO"
80
BRACKET EXHAUST-BRAKE POWER CYLINDER
85
PIN POWER CYLINDER TO BRACKET
90
WASHER INTERMEDIATE SPEED STOP
95
NUT POWER CYLINDER TO BRACKET
100
NUT
100
NUT , Replaced By: N304032008006
105
BALL SOCKET POWER CYLINDER TO THROTTLE VALVE LEVER
110
CIRCLIP POWER CYLINDER TO THROTTLE VALVE LEVER
115
EXHAUST PIPE FROM THROTTLE HOUSING TO FLEXIBLE METAL TUBE
120
CLAMP FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
999
PROTECTIVE PLATE TAIL PIPE
