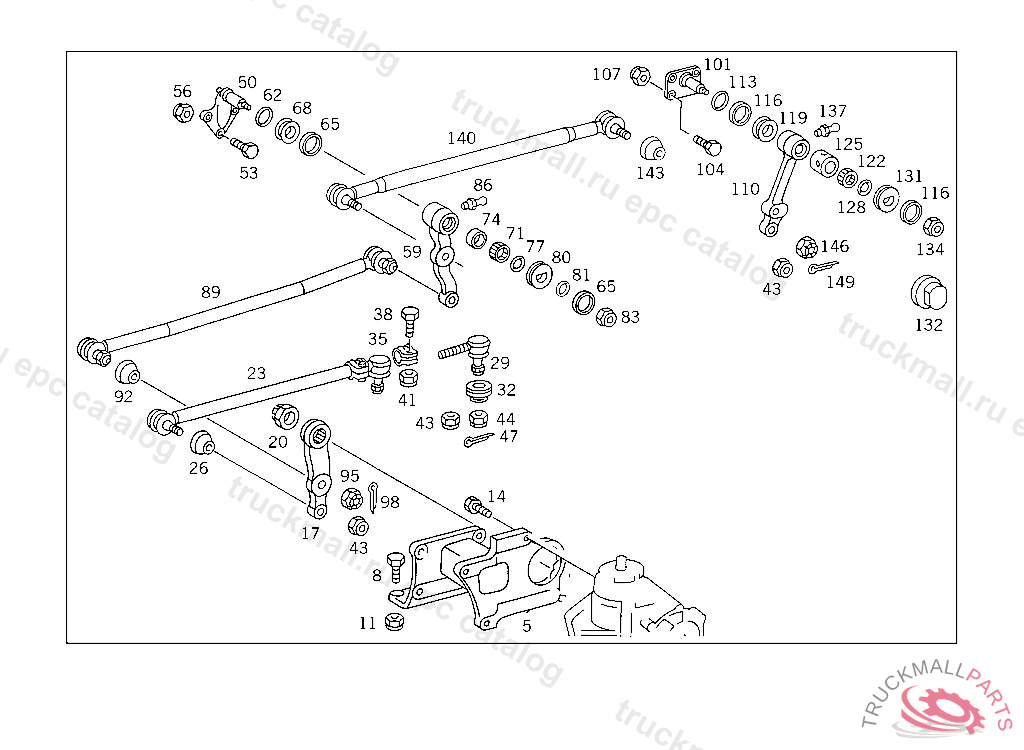

Поз.
Артикул
Описание
5
STEERING SUPPORT AT FRAME
5
STEERING SUPPORT
5
STEERING SUPPORT AT FRAME
5
STEERING SUPPORT AT FRAME
5
STEERING SUPPORT
8
SCREW STEERING SUPPORT TO FRAME
8
SCREW STEERING SUPPORT TO FRAME M 14X55
8
SCREW STEERING SUPPORT TO FRAME M 14X50
11
NUT CONSOLE TO SUPPORT
11
NUT , Replaced By: N910113016001
11
NUT STEERING SUPPORT TO FRAME
14
FITTED SCREW STEERING BRACKET TO FRAME
14
FITTED SCREW , Replaced By: N000609020017
14
SCREW BRACKET TO REAR AXLE M 20X1.5X45
17
PITMAN ARM AT STEERING GEAR
17
PITMAN ARM FRONT
17
PITMAN ARM
20
NUT PITMAN ARM TO STEERING BOX ASSEMBLY
23
DRAG LINK , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0004602705
23
DRAG LINK , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0004602605
23
DRAG LINK FROM PITMAN ARM TO FRONT AXLE I EHRENREICH
23
DRAG LINK FROM PITMAN ARM TO FRONT AXLE I EHRENREICH
23
DRAG LINKEHRENREICH
23
DRAG LINK FROM PITMAN ARM TO FRONT AXLE I LEMFOERDER
26
BOOT DRAG LINK
29
DRAG LINK END R.H. THREAD EHRENREICH
29
DRAG LINK END R.H. THREAD EHRENREICH
32
BOOT DRAG LINK
35
CLAMP DRAG LINK END TO DRAG LINK EHRENREICH
38
HEXAGON HEAD BOLT. SCREW CLAMP TO DRAG LINK
41
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
43
NUT DRAG LINK END M 24X1.5
44
NUT DRAG LINK TO LEVER
44
NUT , Replaced By: N000937024002
47
COTTER PIN DRAG LINK TO STEERING ARM AND PITMAN ARM
50
STEERING SUPPORTI
53
SCREW CONSOLE TO FRAME
53
SCREW , Replaced By: N308676016020
56
NUT CONSOLE TO SUPPORT
56
NUT , Replaced By: N910113016001
59
STEERING INTERMEDIATE ARM"I"
59
STEERING INTERMEDIATE ARMI
59
STEERING INTERMEDIATE ARM"I"
59
STEERING INTERMEDIATE ARM"I"
62
SEAL RING INSIDE TO 622 463 01 10
62
SEAL RING INSIDE
65
SEAL RING INSIDE AND OUTSIDE TO 622 463 01 10
68
THRUST WASHER , Replaced By: A6574630162
68
THRUST WASHER INSIDE
71
NEEDLE BEARING INSIDE AND OUTSIDE
74
SPACER TUBE STEERING INTERMEDIATE ARM BEARING TO 622 461 00 40
77
SEAL RING OUTSIDE TO 622 463 01 10
80
THRUST WASHER , Replaced By: A6574630062
80
THRUST WASHER OUTSIDE
81
CAP STEERING SUPPORT
83
NUT INTERMEDIATE LEVER TO STEERING SUPPORT
83
NUT , Replaced By: N910113018004
86
GREASE NIPPLE
86
GREASE NIPPLE , Replaced By: N071412008102
89
DRAG LINK FROM PITMAN ARM TO STEERING BRACKET I EHRENREICH, COMPONENT PARTS NOT AVAILABLE
89
DRAG LINK FROM PITMAN ARM TO STEERING BRACKET I LEMFOERDER, COMPONENT PARTS NOT AVAILABLE
92
BOOT DRAG LINK
95
NUT DRAG LINK TO LEVER
95
NUT , Replaced By: N000937024002
98
COTTER PIN DRAG LINK TO STEERING ARM AND PITMAN ARM
101
STEERING SUPPORT INTERMEDIATE LEVER III
104
SCREW SUPPORT TO SIDE MEMBER M 14X45
104
SCREW , Replaced By: N308676014012
104
SCREW STEERING SUPPORT TO FRAME M 14X50
107
NUT STEERING SUPPORT TO FRAME
107
NUT , Replaced By: N910113014000
110
STEERING INTERMEDIATE ARM STEERING SUPPORT III
110
STEERING INTERMEDIATE ARM , Replaced By: A6574630110
113
SEAL RING INSIDE TO 622 463 01 10
113
SEAL RING INSIDE
116
SEAL RING INSIDE AND OUTSIDE TO 622 463 01 10
119
THRUST WASHER INSIDE
119
THRUST WASHER , Replaced By: A6574630162
122
NEEDLE BEARING INSIDE AND OUTSIDE
125
SPACER TUBE INSIDE
128
SEAL RING OUTSIDE TO 622 463 01 10
131
THRUST WASHER OUTSIDE
131
THRUST WASHER , Replaced By: A6574630062
132
CAP STEERING SUPPORT
134
NUT INTERMEDIATE LEVER TO STEERING SUPPORT
134
NUT , Replaced By: N910113018004
137
GREASE NIPPLE
137
GREASE NIPPLE , Replaced By: N071412008102
140
DRAG LINK FROM STEERING BRACKET I TO STEERING BRACKET II EHRENREICH, COMPONENT PARTS NOT AVAILABLE
140
DRAG LINK FROM STEERING BRACKET I TO STEERING BRACKET II LEMFOERDER, COMPONENT PARTS NOT AVAILABLE
143
BOOT DRAG LINK
146
NUT DRAG LINK TO LEVER
146
NUT , Replaced By: N000937024002
149
COTTER PIN DRAG LINK TO STEERING ARM AND PITMAN ARM
