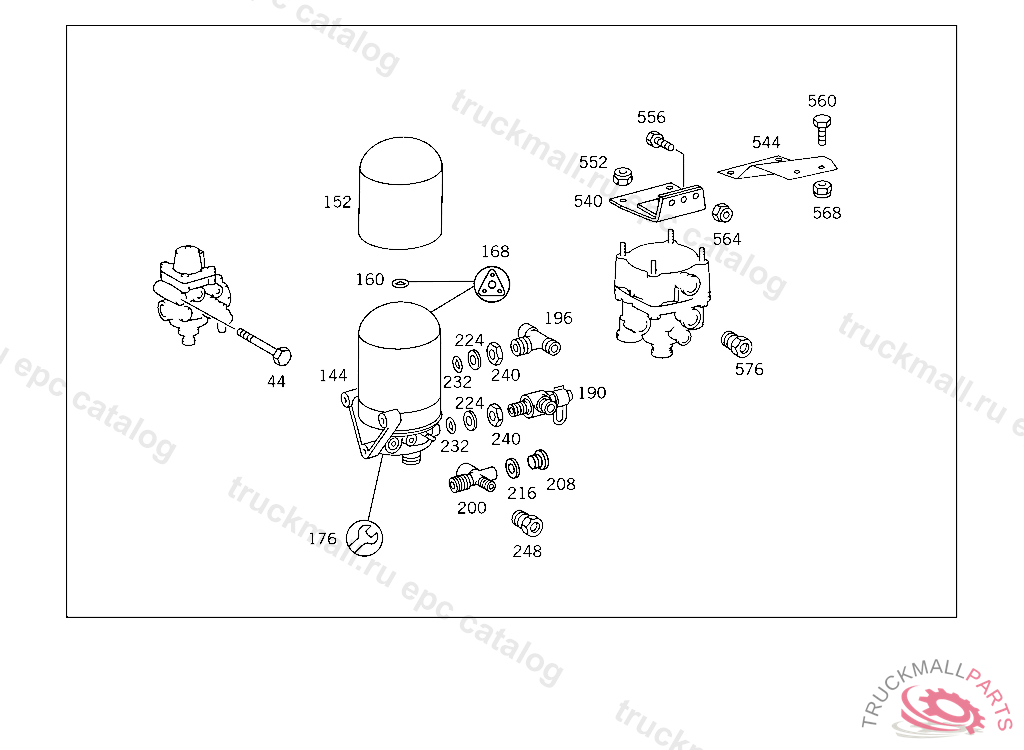

Поз.
Артикул
Описание
44
SCREW VALVE TO CAB M 8X85
144
AIR DEHYDRATOR WITH PRESSURE REGULATOR BOSCH
144
AIR DEHYDRATOR WITH PRESSURE REGULATOR KNORR
144
AIR DEHYDRATOR WITH PRESSURE REGULATOR BOSCH,K 126821
144
AIR DEHYDRATOR WITH PRESSURE REGULATOR KNORR,K 126821
152
AIR CLEANER COMPLETE KNECHT:TO BOSCH,KNORR
152
AIR CLEANER COMPLETE TO BOSCH,KNORR
160
SEAL RINGWABCO
168
GASKET KITKNORR
176
REPAIR KIT PRESSURE REGULATOR BOSCH,K 126821
176
REPAIR KIT PRESSURE REGULATOR KNORR,K 126821
190
FITTING AIR DEHYDRATOR
190
FITTING AIR DEHYDRATOR
190
FITTING , Replaced By: A6554290141
196
T-FITTING SHUTTLE VALVE TO BRAKE CYLINDER
196
T-FITTING SHUTTLE VALVE TO BRAKE CYLINDER
200
CROSS FITTING AIR DEHYDRATOR,CONNECTION: "21"
200
CROSS FITTING AIR DEHYDRATOR,CONNECTION: "21", 3XM 22X1.5/1XM 16X1.5
200
CROSS FITTING AIR DEHYDRATOR,CONNECTION: "21", 3XM 22X1.5/1XM 16X1.5
208
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "22"
208
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
208
SCREW PLUG , Replaced By: N000908022011
216
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
216
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
224
THRUST RING CHECK VALVE TO AIR RESERVOIR
224
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
232
O-RING CHECK VALVE TO AIR RESERVOIR
240
NUT CHECK VALVE TO AIR RESERVOIR
248
SCREW. UNION SCREW LINE CONNECTION
248
SCREW. UNION SCREW LINE CONNECTION
248
SCREW. UNION SCREW LINE CONNECTION
248
SCREW. UNION SCREW , Replaced By: A0009973734
540
BRACKET TRAILER CONTROL VALVE
540
REPAIR KIT CHECK VALVE VOSS
544
BRACKET TRAILER CONTROL VALVE
552
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
552
NUT , Replaced By: N913004008001
556
SCREW SUPPORT TO FENDER
556
SCREW , Replaced By: N304017008018
560
SCREW UNDERRUN PROTECTION AND BRACKET TO FRAME M 14X1.5X38
564
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
564
NUT , Replaced By: N913004008001
568
NUT BRACKET TO SIDE MEMBER
568
NUT , Replaced By: N910113014001
576
SCREW. UNION SCREW LINE CONNECTION
576
SCREW. UNION SCREW LINE CONNECTION
576
SCREW. UNION SCREW , Replaced By: A0009973734
999
T-FITTING
999
GROMMET FOR PASSAGE OF LINE
999
BRACKET COMPRESSED AIR LINES, SIMPLE PART-PLEASE HAVE SHOP MADE
999
STRAP AIR RESERVOIR
999
BRACKET AIR RESERVOIR
999
BASE AIR RESERVOIR STRAP
999
BRACKET AIR RESERVOIR,5 765578
