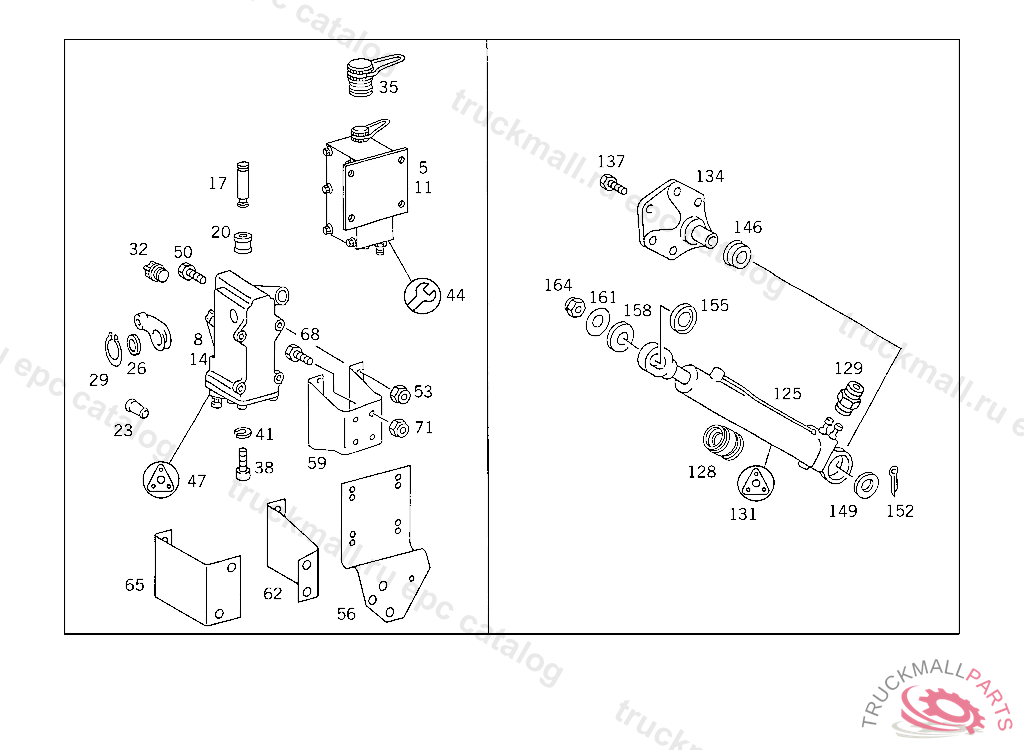

Поз.
Артикул
Описание
5
PUMP (HAND PUMP) WEBER
8
PUMP (HAND PUMP) WEBER
17
PISTONTO 000 553 89 01
17
PISTONTO 000 553 79 01,WEBER
20
VALVETO 000 553 89 01
20
VALVETO 000 553 79 01,WEBER
23
FILTER
26
FITTED WASHER
29
LOCK RING
32
SCREW
35
SCREWTO 000 553 65 01,000 553 69 01,
38
SCREW
41
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
44
REPAIR KIT HAND PUMP TO 000 553 65 01,000 553 69 01,
47
GASKET KIT HAND PUMP
50
SCREW REAR EXHAUST PIPE TO MUFFLER
53
NUT STRAP TO BRACKET
53
NUT , Replaced By: N910113010000
56
BRACKET HAND PUMP
56
BRACKET , Replaced By: A6525530240
56
BRACKET , Replaced By: A6525530240
68
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
71
NUT BRACKET TO SIDE MEMBER
71
NUT , Replaced By: N910113014001
125
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING WEBER
125
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING POWER PACK
128
GUIDEWEBER
129
FITTINGWEBER,TO 001 553 35 05
131
GASKET KIT HYDRAULIC CYLINDER WEBER
134
BEARING BRACKET HYDRAULIC CYLINDER
137
SCREW LEFT AND RIGHT BEARING BRACKETS TO CAB M 14X45
137
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
146
BUSHING HYDRAULIC CYLINDER TO BEARING BRACKET
149
WASHER HYDRAULIC CYLINDER TO CAB
152
COTTER PIN6,3X36 MM
155
WASHER HYDRAULIC CYLINDER TO CAB
158
WASHER HYDRAULIC CYLINDER TO CAB
161
WASHER HYDRAULIC CYLINDER TO CAB
164
NUT COMBINATION CYLINDER TO BEARING BRACKET
164
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
