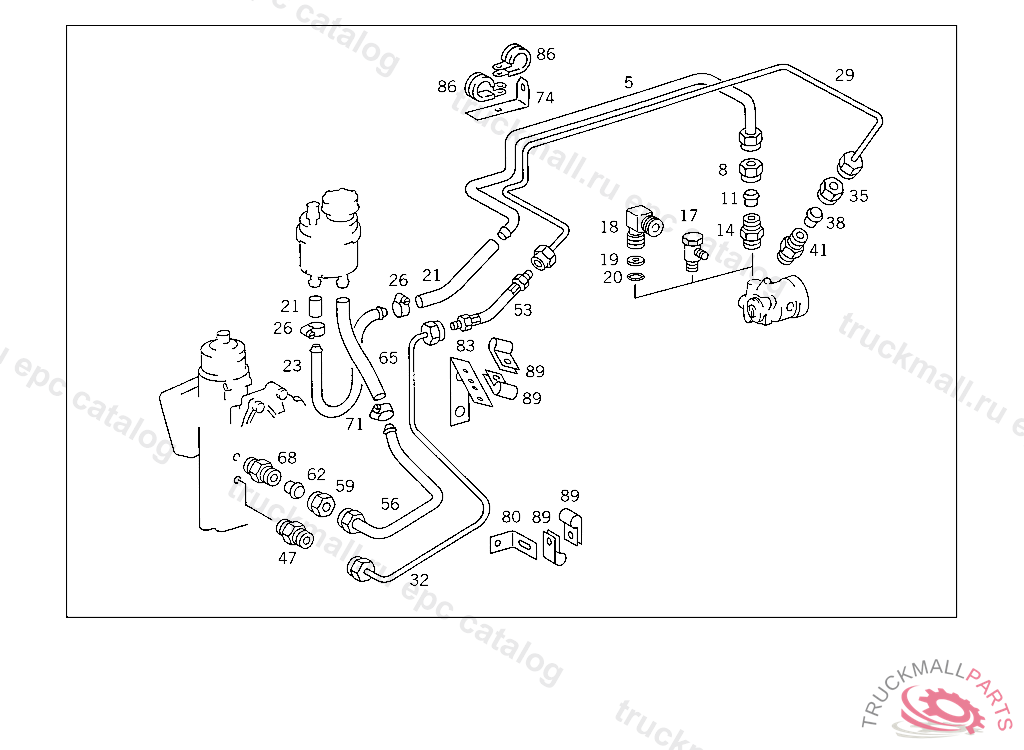

Поз.
Артикул
Описание
5
LINE FROM OIL TANK TO POWER STEERING PUMP AT ENGINE
5
LINE FROM OIL TANK TO POWER STEERING PUMP AT ENGINE
5
LINE , NOT USED
5
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
5
LINE , Replaced By: A0004291601
5
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
5
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
5
LINE FROM PUMP TO HIGH PRESSURE HOSE
5
LINE , Replaced By: A0004291601
5
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
5
LINE , Replaced By: A6524602324
5
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
5
LINE FROM OIL TANK TO POWER STEERING PUMP AT ENGINE
5
LINE , Replaced By: A0004291601
5
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
5
LINE , Replaced By: A0004291601
5
LINE , Replaced By: A0004291601
5
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
5
LINE FROM OIL TANK TO POWER STEERING PUMP AT ENGINE
5
LINE FROM OIL TANK TO POWER STEERING PUMP AT ENGINE
5
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
5
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
8
UNION NUT LINE CONNECTION, Replaced By: N000000006243
8
NUT LINE CONNECTION
8
UNION NUT LINE CONNECTION
11
GLAND LINE CONNECTION
11
SEAL CONE LINE CONNECTION
11
GLAND , Replaced By: A0019901267
14
FITTING DELIVERY LINE TO PUMP
14
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
17
FITTING SUCTION LINE TO OIL PUMP
18
ELBOW FITTING SUCTION LINE TO OIL PUMP
19
THRUST RING SUCTION LINE TO OIL PUMP
20
SEALING CORD SUCTION LINE TO OIL PUMP
21
HOSE , Replaced By: A3859971582
21
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
21
HOSE , Replaced By: A3439970382
21
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
21
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
23
LINE , Replaced By: A0004291601
23
LINE FROM OIL TANK TO HOSE
23
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
23
LINE FROM OIL TANK TO HOSE, Replaced By: A0004291601
23
LINE FROM OIL TANK TO SUCTION LINE HOSE
23
LINE , NOT USED
23
LINE HOSE TO SUCTION LINE AND TO OIL TANK
23
LINE FROM OIL TANK TO HOSE
23
LINE FROM OIL TANK TO HOSE
26
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
26
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
26
CLAMP , Replaced By: N000000000667
29
LINE FROM PUMP TO HIGH PRESSURE HOSE
29
LINE FROM PUMP TO HIGH PRESSURE HOSE
29
LINE FROM PUMP TO HIGH PRESSURE HOSE, CIRCUIT I
29
LINE FROM PUMP TO HIGH PRESSURE HOSE
29
LINE FROM PUMP TO HIGH PRESSURE HOSE
29
LINE FROM PUMP TO HIGH PRESSURE HOSE
29
LINE , Replaced By: A0005516156
29
TUBE FROM HIGH PRESSURE HOSE TO STEERING
29
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO STEERING BOX
29
LINE FROM PUMP TO HIGH PRESSURE HOSE, CIRCUIT I
29
LINE FROM PUMP TO HIGH PRESSURE HOSE
29
TUBE FROM HIGH PRESSURE HOSE TO STEERING
29
TUBE FROM HIGH PRESSURE HOSE TO STEERING
29
LINE FROM PUMP TO HIGH PRESSURE HOSE, CIRCUIT I
29
LINE FROM PUMP TO HIGH PRESSURE HOSE
29
LINE FROM PUMP TO HIGH PRESSURE HOSE, CIRCUIT I
29
LINE FROM PUMP TO HIGH PRESSURE HOSE, CIRCUIT I
29
LINE FROM PUMP TO HIGH PRESSURE HOSE
29
LINE FROM PUMP TO HIGH PRESSURE HOSE
29
LINE , Replaced By: A6524602424
29
LINE FROM PUMP TO HIGH PRESSURE HOSE
32
LINE RETURN, FROM STEERING TO OIL TANK
32
LINE FROM HIGH PRESSURE HOSE TO STEERING
32
LINE FROM HIGH PRESSURE HOSE TO STEERING
32
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO STEERING BOX
32
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO FITTING
32
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO STEERING BOX
32
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO STEERING BOX
32
LINE FROM HIGH PRESSURE HOSE TO STEERING
32
LINE FROM HIGH PRESSURE HOSE TO STEERING
35
UNION NUT LINE CONNECTION, Replaced By: N000000006239
35
UNION NUT LINE CONNECTION
38
GLAND , Replaced By: A0019901967
38
SEAL CONE LINE CONNECTION
41
SCREW-IN FITTING DELIVERY LINE TO PUMP
41
SCREW-IN FITTING RETURN, FROM STEERING TO OIL TANK
41
FITTING DELIVERY LINE TO PUMP
47
SCREW-IN FITTING DELIVERY LINE TO PUMP
47
FITTING DELIVERY LINE TO PUMP
47
SCREW-IN FITTING FUEL FEED,AT WATER SEPARATOR
47
SCREW-IN FITTING FUEL FEED,AT WATER SEPARATOR
47
FITTING (DELIVERY LINE),FROM PUMP TO STEERING, Replaced By: A9329970772
47
FITTING (DELIVERY LINE),FROM PUMP TO STEERING
53
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
53
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
53
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
53
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
53
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
53
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
53
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
53
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
53
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
53
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
53
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
53
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
53
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO FITTING
56
LINE FROM HIGH PRESSURE HOSE TO STEERING
56
LINE RETURN, FROM STEERING TO OIL TANK
56
LINE RETURN, FROM STEERING TO OIL TANK
56
LINE FROM STEERING TO OIL TANK
56
LINE RETURN, FROM STEERING TO OIL TANK
56
LINE RETURN, FROM STEERING TO OIL TANK
59
UNION NUT LINE CONNECTION
59
UNION NUT LINE CONNECTION, Replaced By: N000000006239
59
UNION NUT LINE CONNECTION
62
GLAND LINE CONNECTION
62
GLAND , Replaced By: A0019901967
62
SEAL CONE LINE CONNECTION
65
HOSE DELIVERY LINE TO STEERING
65
HOSE , NOT USED
68
SCREW-IN FITTING RETURN, FROM STEERING TO OIL TANK
71
CLAMP HOSE TO FITTING AND TO OIL TANK
74
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
74
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
74
BRACKET , NOT USED
74
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
80
BRACKET DELIVERY AND SUCTION LINES TO FRAME
80
BRACKET COMPRESSED AIR LINE TO FOUR-CIRCUIT PROTECTIVE VALVE,5 720506
80
BRACKET FUEL LINES TO TRANSMISSION
80
BRACKET COMPRESSED AIR LINES,K 168169
83
BRACKET DELIVERY AND SUCTION LINES TO FRAME
83
BRACKET DELIVERY AND SUCTION LINES TO FRAME
83
BRACKET DELIVERY AND SUCTION LINES TO FRAME
83
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
83
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
83
BRACKET , Replaced By: A6554601335
83
BRACKET DELIVERY AND SUCTION LINES TO ENGINE
83
BRACKET DELIVERY AND SUCTION LINES TO ENGINE
86
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
86
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
86
CLAMP DELIVERY AND SUCTION LINES TO FRAME
86
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
89
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
89
CLAMP DELIVERY AND SUCTION LINES TO STEERING
89
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
89
CLAMP , Replaced By: A6739950001
