Поз.
Артикул
Описание

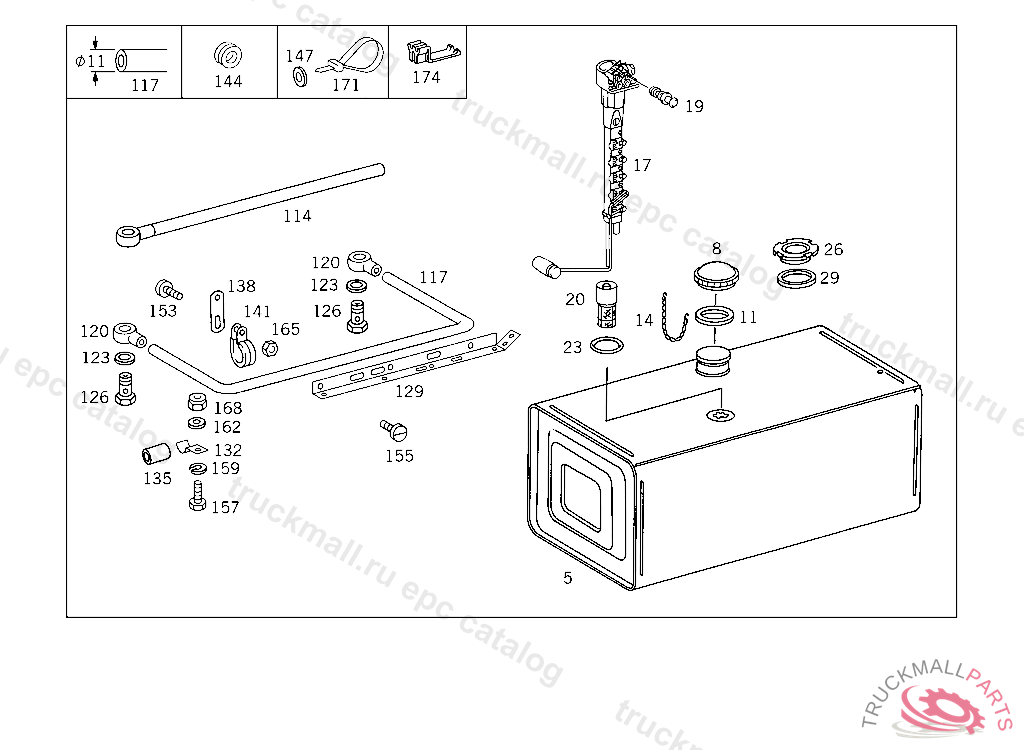

5
FUEL TANK
8
FILLER CAP
8
FILLER CAP , Replaced By: A0004700305
11
SEAL RING
14
CHAIN FILLER CAP
17
SENDER UNIT FUEL GAUGE
17
SENDER UNIT
17
SENDER UNIT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 169122, Replaced By: A0115426517, +001A0005409917
17
SENDER UNIT , Replaced By: A0085428117
19
PLUG TO SEAL AUXILIARY HEATER CONNECTION 8 MM,K 169123
20
FUEL STRAINER FUEL TANK,K 169122
20
FUEL STRAINER FUEL TANK,K 169123
23
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
26
FILLER CAP IN PLACE OF FUEL GAUGE SENDER UNIT
29
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
114
LINE FUEL COMPENSATING
117
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
120
BANJO UNION , Replaced By: N000000000363
123
SEAL RING FUEL LINE TO FEED PUMP
126
HOLLOW SCREW FUEL LINE TO FEED PUMP
126
HOLLOW SCREW , Replaced By: N915036010108
129
PROTECTIVE PLATE TO MOUNT FUEL LINES
129
PROTECTIVE PLATE TO MOUNT FUEL LINES
132
CLAMP FUEL LINE TO BRACKET
132
CLAMP , Replaced By: A1109950401
135
RUBBER PAD FUEL LINE TO BRACKET
138
BRACKET OIL LINE MOUNTING,5 059970
141
CLAMP CABLE HARNESS MOUNTING
141
CLAMP , Replaced By: N000000001045
141
CLAMP , Replaced By: N916016010211
144
GROMMET FUEL LINE THRU FRAME SIDE MEMBER,5 406237
147
WASHER BRACKET TO LEFT SIDE MEMBER
153
SCREW HOOK TO BRACKET
153
SCREW , Replaced By: N007985005175
155
SCREW PROTECTION PLATE TO BRACKET
157
SCREW COVER PLATE TO BRACKET
159
LOCK WASHER BRACKET TO STEERING COLUMN END
162
WASHER COMPRESSED AIR LINE TO BRACKET
162
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
162
WASHER , Replaced By: N009021005205
162
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
165
NUT , Replaced By: N304032005005
165
NUT IN CASE OF SUBSEQUENT INSTALLATION
165
NUT BALL PIVOT TO LEVER
168
NUT PUMP TO BRACKET
168
NUT , Replaced By: N913004006001
171
LOOM TIE LINE MOUNTING
174
BRACKET TO MOUNT FUEL LINES,K 114273
999
BRACKET STRAP
