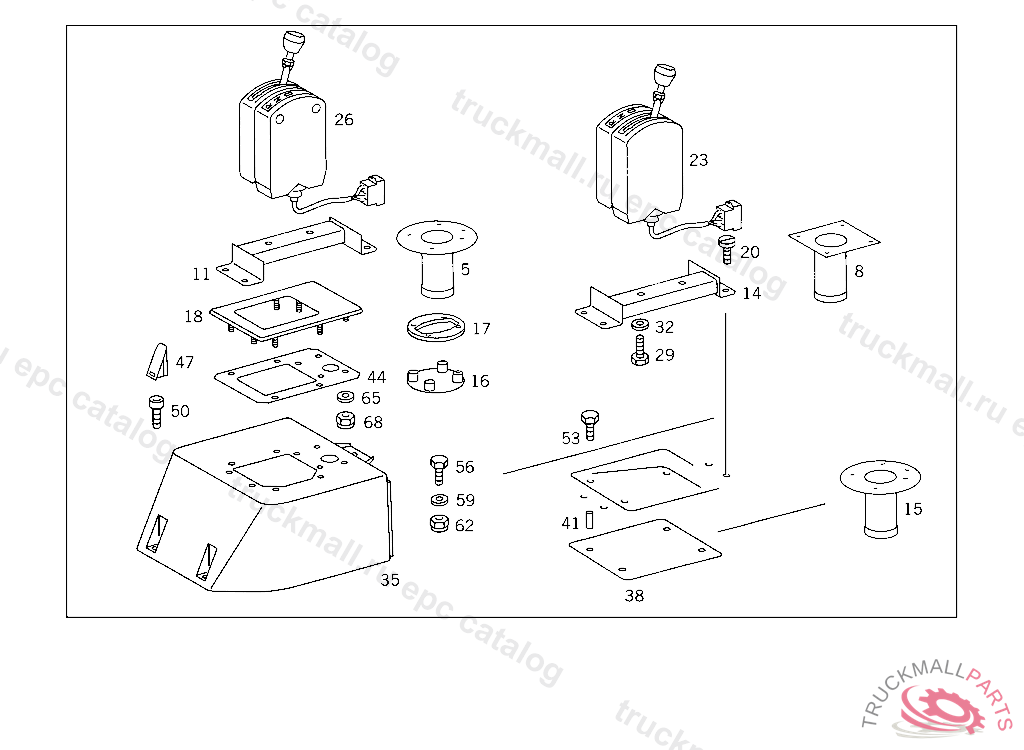

Поз.
Артикул
Описание
5
BRACKET COVERING
8
BRACKET COVERING
11
BRACKET SHIFT LEVER TO CAB FLOOR
14
BRACKET SHIFT MECHANISM
15
BRACKET SHIFT LEVER TO CAB FLOOR
16
BRACKET SHIFT MECHANISM
17
SHIM SHIFT MECHANISM AND BRACKET TO CAB FLOOR
18
BRACKET SHIFT LEVER TO CAB FLOOR
20
TAPPING SCREW BRACKET TO CAB FLOOR
23
SWITCH , Replaced By: A0015400145
23
SWITCH (TRACTION SWITCH)
26
SWITCH (TRACTION SWITCH)
29
SCREW PIPE CLAMP
29
SCREW , Replaced By: N304017008021
29
SCREW , Replaced By: N304017008016
29
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
32
WASHER , Replaced By: N000125008443
32
WASHER EXHAUST MUFFLER TO STRAP
35
COVERING , Replaced By: A6992771181
35
COVERING SHIFT LEVER, TO BE ADAPTED DURING ASSEMBLY
35
COVERING SHIFT LEVER, TO BE ADAPTED DURING ASSEMBLY
35
COVERING SHIFT LEVER
35
COVERING SHIFT LEVER, TO BE ADAPTED DURING ASSEMBLY
38
COVERING CAB FLOOR COVERING
41
TUBE. BUSHING CAB FLOOR COVERING
44
SHIM SHIFT LEVER TO CAB FLOOR
47
COVER COVERING
50
SCREWM 6X16
50
SCREW , Replaced By: A1249900520
53
SCREW CAB FLOOR COVERING M 6X25
56
SCREWM 8X40
56
SCREW CLAMP TO BRACKET AND TO PIPE
59
WASHER EXHAUST MUFFLER TO STRAP
59
WASHER , Replaced By: N000125008443
62
NUT , Replaced By: N913004008001
62
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
65
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
65
WASHER COMPRESSED AIR LINE TO BRACKET
68
NUT , Replaced By: N913004006001
68
NUT PUMP TO BRACKET
