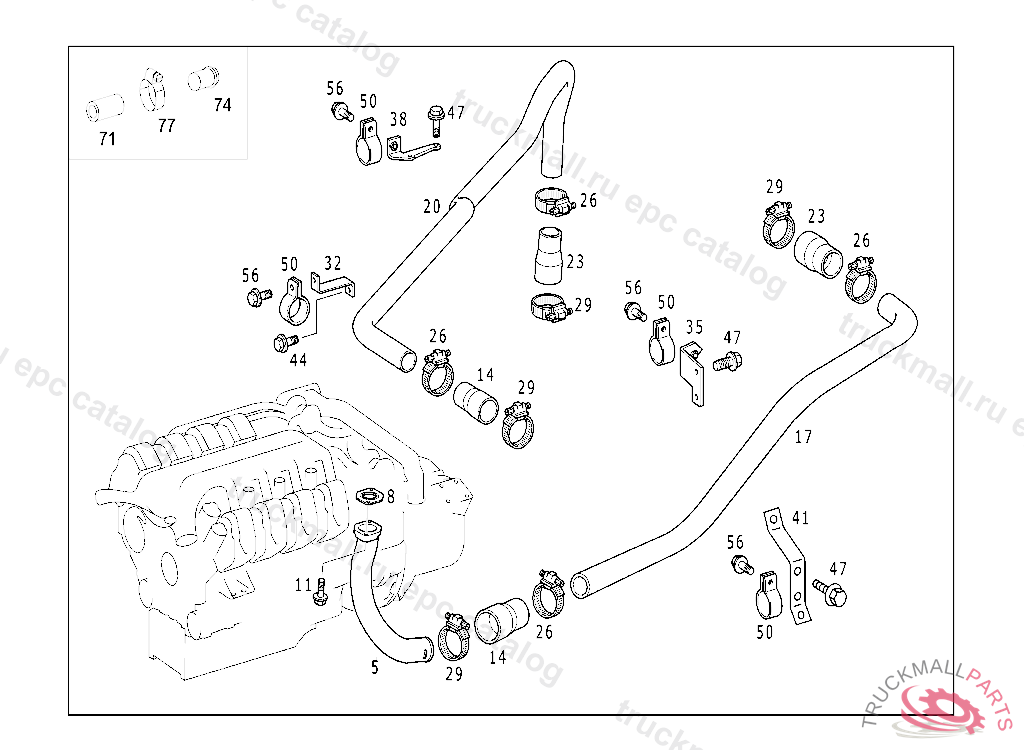

Поз.
Артикул
Описание
5
FITTING FEED, FROM ENGINE TO RETARDER
8
GASKET FITTING ON ENGINE
11
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
11
SCREW , Replaced By: N910143008002
14
HOSE FEED
17
PIPE LINE FEED, FROM ENGINE TO RETARDER
20
PIPE LINE RETURN, FROM RETARDER TO ENGINE
23
HOSE FEED AND RETURN LINES TO RETARDER
26
CLAMP HOSE FASTENING 50-70X13 MM
29
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 60-80X13 MM
32
BRACKET ON CRANKCASE,FRONT RIGHT
32
BRACKET ON CRANKCASE,FRONT RIGHT, Replaced By: A9314208086
35
BRACKET LINE TO REAR TRANSMISSION CASE
38
BRACKET LINE TO REAR TRANSMISSION CASE
41
BRACKET , Replaced By: A9415401140
41
BRACKET FEED LINE TO TRANSMISSION
44
SCREW BRACKET TO SIDE MEMBER M8X20
44
SCREW BRACKET TO CAB REAR PANEL M 8X20
47
SCREW , Replaced By: N000000001139
47
HEXALOBULAR BOLT BRACKET TO TRANSMISSION CASE M8X20
50
CLAMP , Replaced By: A9424310043
50
CLAMP LINE MOUNTING
50
CLAMP HOSE TO RETARDER 60-80X13 MM
56
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
56
SCREW , Replaced By: N910143008002
71
HOSE TO PLUG OIL-COOLER OIL RETURN
74
INTAKE PIPE SOCKET TO PLUG OIL-COOLER OIL RETURN
77
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
