Поз.
Артикул
Описание

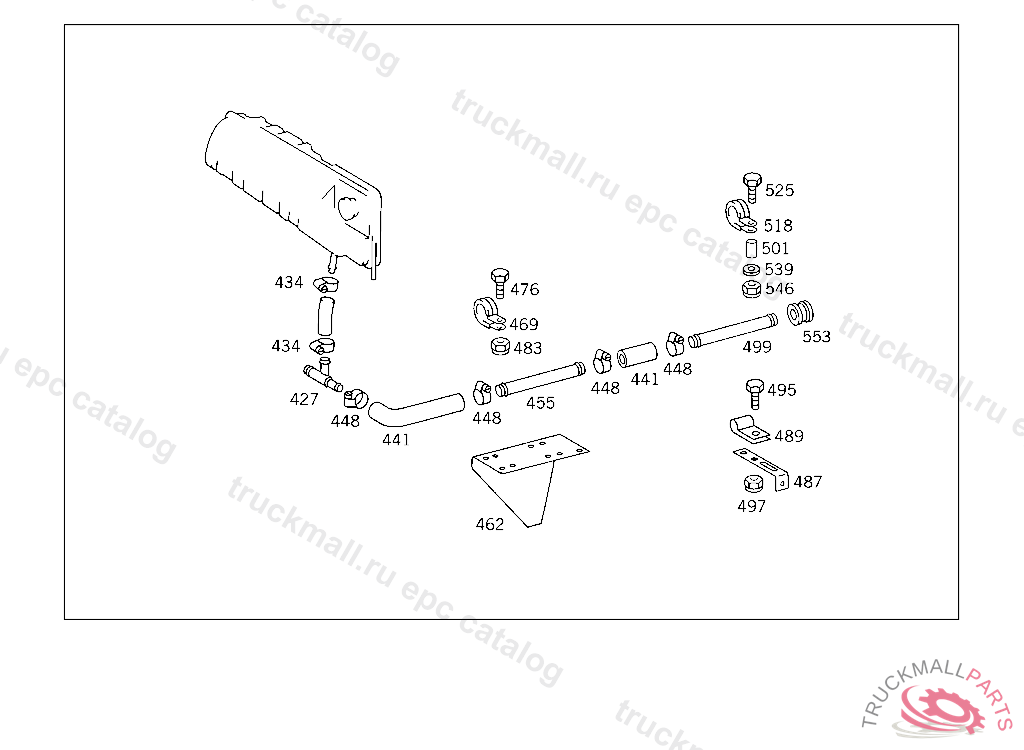

427
LINE BREATHING
427
LINE DE-AERATION
427
BREATHER PIPE EXPANSION TANK
434
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
434
CLAMP , Replaced By: N000000000667
441
HOSE DE-AERATION LINE, LENGTH AVAILABLE: 1000 MM
441
HOSE ENGINE BREATHING 8X15X2550MM, TO BE ADAPTED DURING ASSEMBLY
441
HOSE COOLING WATER LINE TO AIR COMPRESSOR, ORDER BY THE METER
441
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
441
HOSE , Replaced By: N900271015037
441
HOSE , Replaced By: N000000000734
448
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
448
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
448
CLAMP HOSE TO FITTING AND TO OIL TANK
448
CLAMP LINE MOUNTING
455
BREATHER PIPE BETWEEN THE LINES
455
OIL PIPE. LINE RETURN LINE TO TRANSMISSION
462
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT, TO BE ADAPTED DURING ASSEMBLY
462
BRACKET COMPRESSED AIR LINE MOUNTING
462
BRACKET , Replaced By: A3524290740
469
CLAMP HEATER-PLUG/SOLENOID-VALVE BRANCH-OFFS TO NOZZLE HOLDER,K 092646
469
CLAMP DE-AERATION LINE
476
SCREW COVER PLATE TO COVER PLATE M 6 X 12
476
SCREW , Replaced By: N304017006018
483
NUT , Replaced By: N913004006001
483
NUT PUMP TO BRACKET
487
BRACKET LINE MOUNTING
489
CLAMP LINE MOUNTING
489
CLAMP OIL-DIPSTICK GUIDE TUBE TO BRACKET
495
SCREW LICENSE PLATE TO BRACKET
495
SCREW , Replaced By: N304017006020
497
NUT , Replaced By: N913004006001
497
NUT PUMP TO BRACKET
499
OIL PIPE. LINE RETURN LINE TO TRANSMISSION
501
TUBE. BUSHING CAB FLOOR COVERING
501
SPACER TUBE DE-AERATION LINE TO SUPPORT
501
BUSHING , Replaced By: A3892680525
501
BUSHING , Replaced By: A3149910740
518
CLAMP STAY TO BRACKET
518
CLAMP HEATER-PLUG/SOLENOID-VALVE BRANCH-OFFS TO NOZZLE HOLDER,K 092646
525
SCREW , Replaced By: N304017006026
525
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
525
SCREW BRACKET TO CROSS MEMBER
525
SCREW PUMP TO BRACKET
539
WASHER COMPRESSED AIR LINE TO BRACKET
539
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
546
NUT , Replaced By: N913004008001
546
NUT , Replaced By: N913004006001
546
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
546
NUT PUMP TO BRACKET
553
GROMMET ,5 585846
999
COOLING WATER PIPE CONNECTOR II
999
COOLING WATER PIPE FEED
999
BREATHER PIPE RADIATOR BREATHING
999
COOLING WATER PIPE FEED
999
LINE FROM RADIATOR OUTLET TO WATER PUMP
999
OUTLET FEED
999
LINE FROM HOSE TO MOLDED HOSE
999
PANELLING (HEAT SHIELD)
999
BRACKET AT TRANSMISSION
999
SCREENING PLATE (HEAT SHIELD)
999
BRACKET WIRE CABLE TO FRAME SIDE MEMBER
999
HOSE FROM WATER PUMP TO EXPANSION TANK
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
999
BRACKET BRACKET TO SIDE MEMBER, TO BE ADAPTED DURING ASSEMBLY
999
BRACKET OIL LINE MOUNTING
999
COOLING WATER PIPE FEED
999
COOLING WATER PIPE RETURN
999
COOLING WATER PIPE FEED
999
COOLING WATER PIPE FEED
999
COOLING WATER PIPE FEED
999
COOLING WATER PIPE RETURN
999
COOLING WATER PIPE PIPE BEND TO RADIATOR
999
COOLING WATER PIPE FEED
999
COOLING WATER PIPE FEED
999
COOLING WATER PIPE FROM T-FITTING TO EXPANSION TANK
999
COOLING WATER PIPE FEED
999
COOLING WATER PIPE FEED
999
COOLING WATER PIPE RETURN
999
COOLING WATER PIPE FEED
999
COOLING WATER PIPE FEED
999
COOLING WATER PIPE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
999
LINE FROM RADIATOR OUTLET TO WATER PUMP
999
LINE FEED LINE
999
LINE FEED TO ENGINE
