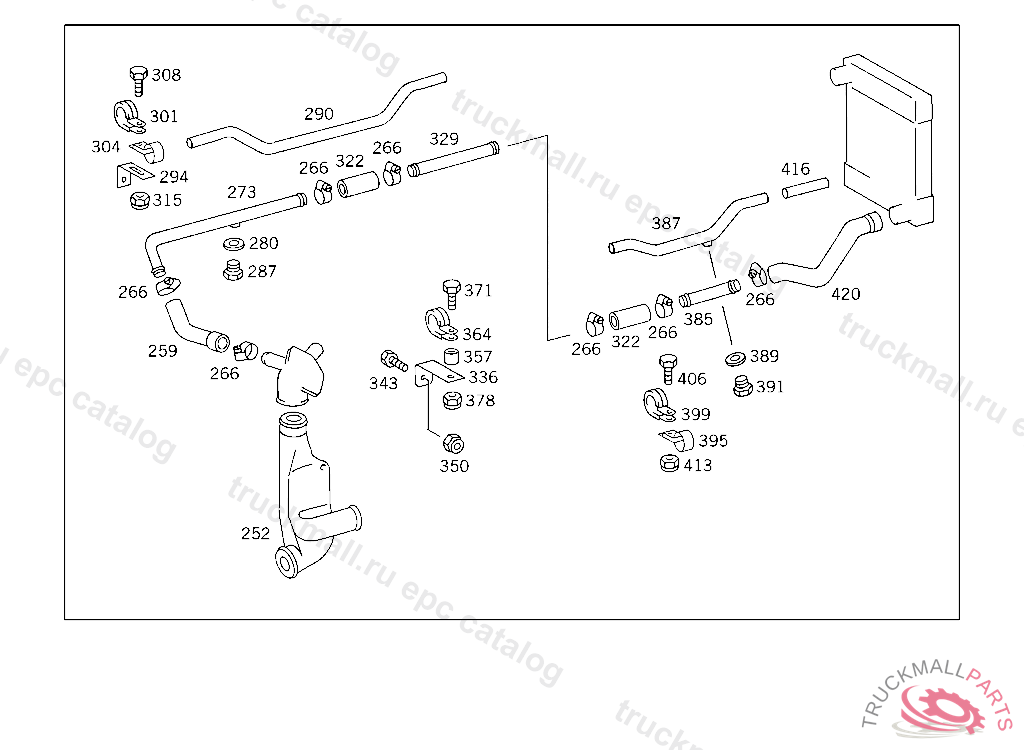

Поз.
Артикул
Описание
252
PIPE ELBOW FROM RADIATOR TO WATER PUMP
252
LINE PIPE ELBOW
252
PIPE ELBOW AT WATER PUMP
252
PIPE ELBOW AT WATER PUMP
259
HOSE RADIATOR,RIGHT TOP
266
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
273
LINE ENGINE,RIGHT
280
SEAL RING PNEUMATIC VALVE
287
SCREW PLUG 4/2-WAY VALVE
290
COOLING WATER PIPE ENGINE,RIGHT
294
BRACKET COMPRESSED AIR LINE TO FOUR-CIRCUIT PROTECTIVE VALVE,5 720506
294
BRACKET , Replaced By: A3812950440
301
CLAMP STAY TO BRACKET
304
CLAMP LINE MOUNTING
304
CLAMP , Replaced By: N000000001641
304
CLAMP , Replaced By: A9424310043
308
SCREW , Replaced By: N304017008021
308
SCREW PIPE CLAMP
315
NUT , Replaced By: N913004008001
315
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
322
HOSE FROM WATER PUMP TO EXPANSION TANK 28X37X80,5 022370 ORDER BY THE METER
329
COOLING WATER LINE RETURN LINE
329
COOLING WATER LINE RETURN LINE
329
COOLING WATER LINE RETURN LINE
329
COOLING WATER PIPE
329
COOLING WATER LINE RETURN LINE
329
COOLING WATER PIPE RETURN
329
COOLING WATER PIPE RETURN
336
BRACKET , Replaced By: A6684922341
336
BRACKET , Replaced By: A6205244040
336
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
343
SCREW BRACKET TO CROSS CONNECTION STRUT
343
SCREW , Replaced By: N304017008034
350
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
350
NUT , Replaced By: N913004008001
357
BUSHING , Replaced By: A6014910053
357
SPACER TUBE , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A1153570353
357
SPACER TUBE AIR RESERVOIR TO FRAME, TO BE ADAPTED DURING ASSEMBLY
364
CLAMP STAY TO BRACKET
371
SCREW VALVE TO BRACKET
371
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
371
SCREW , Replaced By: N304014008002
378
NUT , Replaced By: N913004008001
378
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
385
COOLING WATER PIPE RETURN
387
LINE RETURN
389
SEAL RING LINE CONNECTION
391
SCREW PLUGROCKINGER,TYP 59 U150
391
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
395
CLAMP , Replaced By: N000000001641
395
CLAMP , Replaced By: A9424310043
395
CLAMP LINE MOUNTING
399
CLAMP STAY TO BRACKET
406
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
413
NUT , Replaced By: N913004008001
413
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
416
COOLING WATER PIPE RADIATOR,LEFT
420
HOSE FROM WATER PUMP TO EXPANSION TANK
420
HOSE RADIATOR,RIGHT TOP
999
COOLING WATER PIPE CONNECTOR II
999
COOLING WATER PIPE FEED
999
BREATHER PIPE RADIATOR BREATHING
999
COOLING WATER PIPE FEED
999
LINE FROM RADIATOR OUTLET TO WATER PUMP
999
OUTLET FEED
999
LINE FROM HOSE TO MOLDED HOSE
999
PANELLING (HEAT SHIELD)
999
BRACKET AT TRANSMISSION
999
SCREENING PLATE (HEAT SHIELD)
999
BRACKET WIRE CABLE TO FRAME SIDE MEMBER
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
999
BRACKET BRACKET TO SIDE MEMBER, TO BE ADAPTED DURING ASSEMBLY
999
BRACKET OIL LINE MOUNTING
999
COOLING WATER PIPE FEED
999
COOLING WATER PIPE RETURN
999
COOLING WATER PIPE FEED
999
COOLING WATER PIPE FEED
999
COOLING WATER PIPE FEED
999
COOLING WATER PIPE RETURN
999
COOLING WATER PIPE PIPE BEND TO RADIATOR
999
COOLING WATER PIPE FEED
999
COOLING WATER PIPE FEED
999
COOLING WATER PIPE FROM T-FITTING TO EXPANSION TANK
999
COOLING WATER PIPE FEED
999
COOLING WATER PIPE FEED
999
COOLING WATER PIPE RETURN
999
COOLING WATER PIPE FEED
999
COOLING WATER PIPE FEED
999
COOLING WATER PIPE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
999
LINE FROM RADIATOR OUTLET TO WATER PUMP
999
LINE FEED LINE
999
LINE FEED TO ENGINE
