Поз.
Артикул
Описание

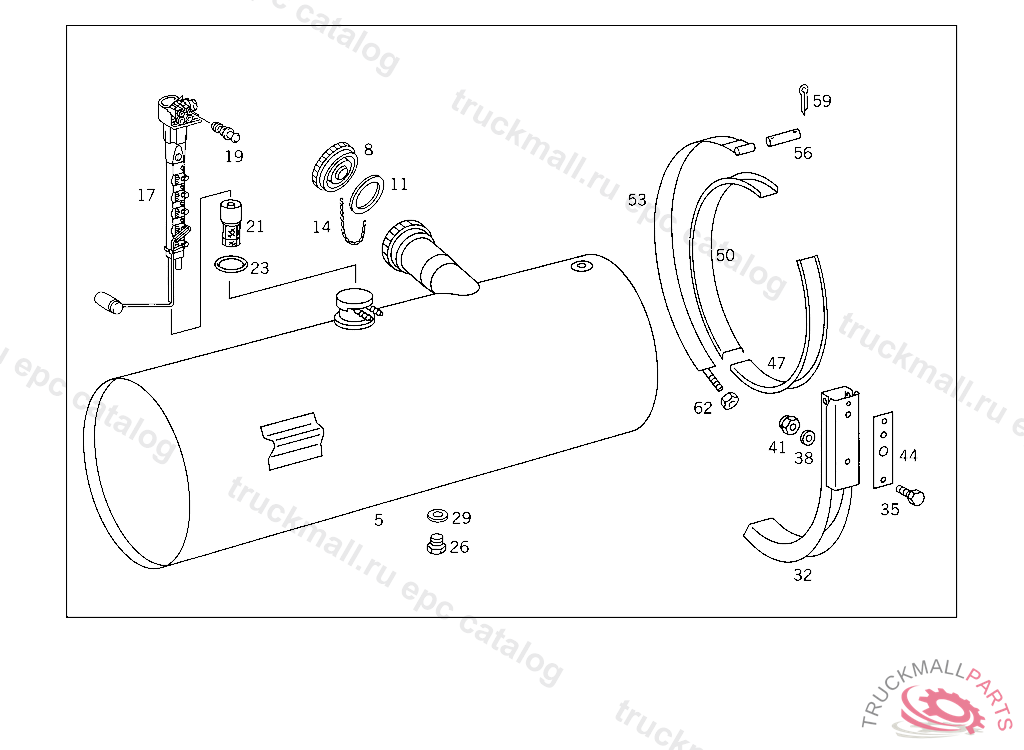

5
FUEL TANK LESS SENDER UNIT AND LESS SCREW CONNECTION PARTS
8
FILLER CAP
8
FILLER CAP , Replaced By: A0004700305
11
SEAL RING
14
CHAIN FILLER CAP
17
SENDER UNIT FUEL GAUGE,K 169123
17
SENDER UNIT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 169122, Replaced By: A0115426317, +001A0005409917
17
SENDER UNIT , Replaced By: A0085428317
19
PLUG TO SEAL AUXILIARY HEATER CONNECTION 8 MM,K 169123
21
FUEL STRAINER FUEL TANK,K 169122
21
FUEL STRAINER FUEL TANK,K 169123
23
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
26
SCREW PLUG FUEL TANK
26
SCREW PLUG , Replaced By: N007604014110
29
SEAL RING FUEL LINE TO FEED PUMP
32
SUPPORT FUEL TANK
32
SUPPORT FUEL TANK
32
SUPPORT FUEL TANK
32
SUPPORT FUEL TANK
32
SUPPORT FUEL TANK
35
SCREW MOUNTING TO CONSOLE M 14X35
35
SCREW , Replaced By: N308676014012
35
SCREW , Replaced By: N308676014008
35
SCREW , Replaced By: A9429901304
35
SCREW , Replaced By: N308676014020
35
SCREW STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
35
SCREW BRACKET TO CAB CONSOLE,K 035197
35
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
35
SCREW SUPPORT TO SIDE MEMBER M 14X45
35
SCREW BRACKET TO SIDE MEMBER
35
SCREW APPARATUS SUPPORT TO FRAME
35
SCREW BRACKET TO SIDE MEMBER M 14X1.5X50,5 543914
38
WASHER SPARE WHEEL CARRIER
41
NUT BRACKET TO SIDE MEMBER
41
NUT STEERING SUPPORT TO FRAME
41
NUT , Replaced By: N910113014000
41
NUT , Replaced By: N910113014001
44
SHIM FUEL TANK TO FRAME
44
BASE SUPPORT TO SIDE MEMBER
44
SHIM , Replaced By: A3614750019
44
SHIM SUPPORT TO SIDE MEMBER
47
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
50
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
53
STRAP FUEL TANK
56
PIN STRAP TO SUPPORT
59
COTTER PIN STRAP TO SUPPORT
62
NUT STRAP TO SUPPORT
