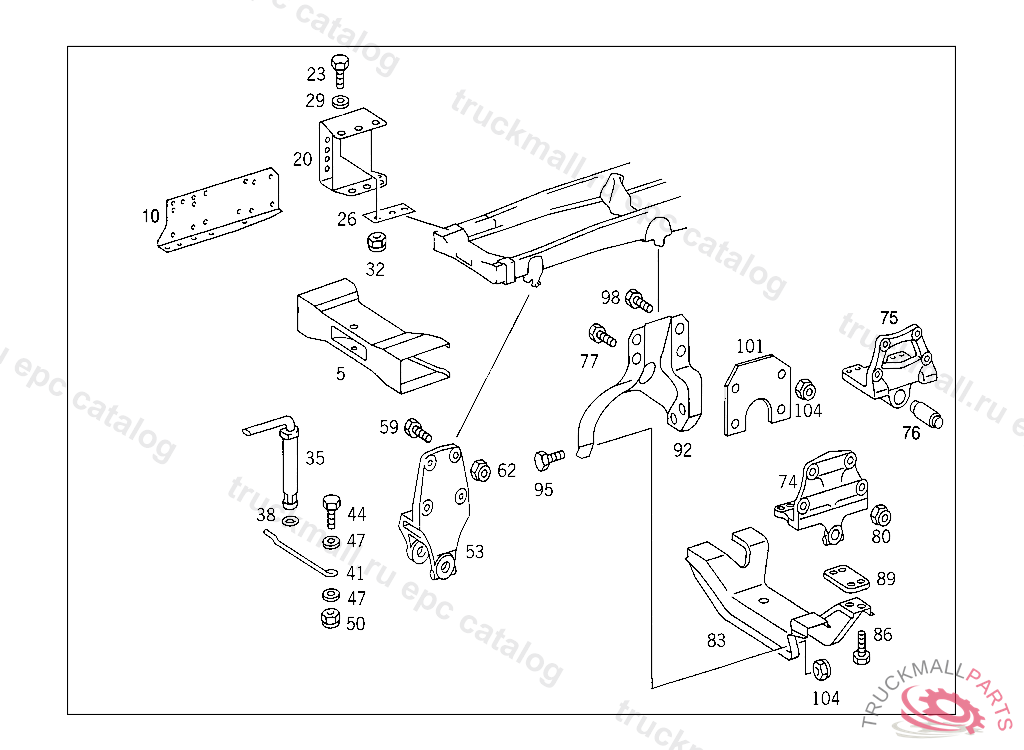

Поз.
Артикул
Описание
5
CROSS MEMBER FRONT
23
SCREW , Replaced By: N308676012026
23
SCREW , Replaced By: N308676012015
23
SCREW LEFT AND RIGHT CONSOLES TO CAB
23
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
29
WASHER
35
COUPLING PIN FOR COUPLING MOUTH
38
SEALING CORD FOR COUPLING MOUTH
41
LOCKING SPRING TO SECURE COUPLING PIN
44
SCREW BRACKET TO CROSS CONNECTION STRUT
44
SCREW , Replaced By: N304017008034
47
WASHER , Replaced By: N000125008443
47
WASHER EXHAUST MUFFLER TO STRAP
50
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
50
NUT , Replaced By: N913004008001
50
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
59
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X50
59
SCREW BRACKET TO SUPPORT
62
NUT CONSOLE TO SUPPORT
62
NUT , Replaced By: N910113016001
74
FRONT SPRING BRACKET REAR
75
FRONT SPRING BRACKET. REAR SUBFRAME REAR,K 083163
76
RUBBER MOUNTING
77
SCREW STEERING SUPPORT TO FRAME M 14X50
77
SCREW SUPPORT TO SIDE MEMBER M 14X45
77
SCREW APPARATUS SUPPORT TO FRAME
80
NUT STEERING SUPPORT TO FRAME
80
NUT , Replaced By: N910113014000
83
CROSS MEMBER FRONT SPRING REAR BRACKET NO.2
86
SCREW UNDERRUN PROTECTION AND BRACKET TO FRAME M 14X1.5X38
89
SHIM CROSS MEMBER WITH SHIM TO FRONT SPRING REAR BRACKET
999
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
