Поз.
Артикул
Описание

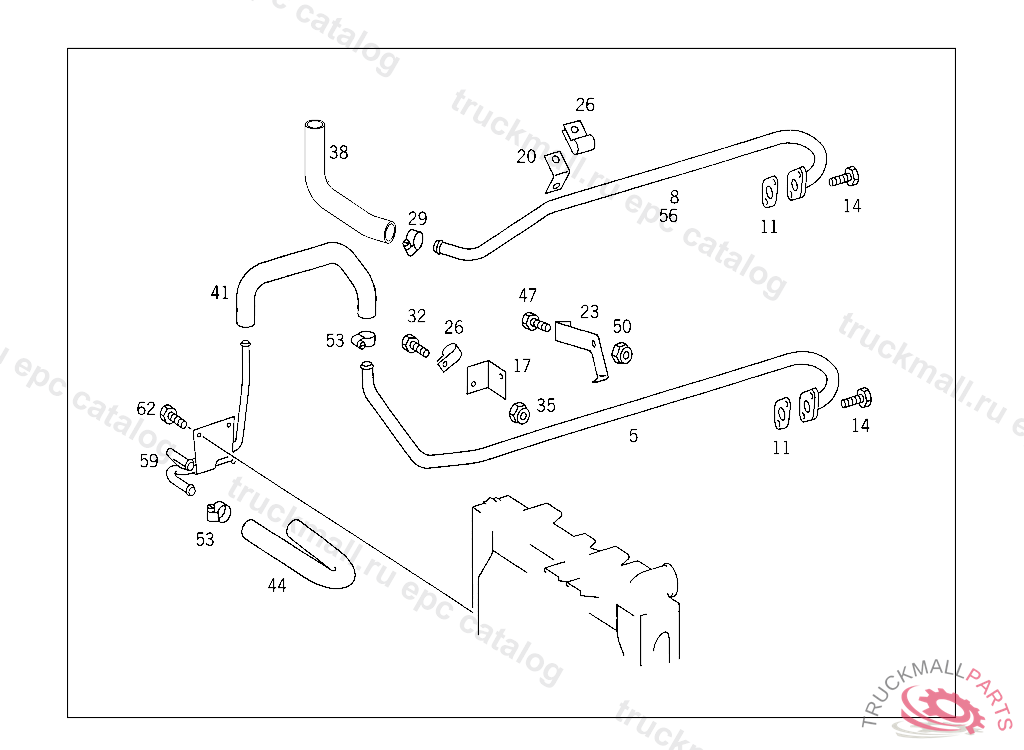

5
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
8
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR,K 068297
11
GASKET HEATING PIPE TO ENGINE
14
SCREW PIPE CLAMP
14
SCREW , Replaced By: N304017008021
17
BRACKET FEED LINE TO THERMOSTAT
26
CLAMP FEED LINE TO THERMOSTAT
32
SCREW COVER PLATE TO BRACKET
35
NUT PUMP TO BRACKET
35
NUT , Replaced By: N913004006001
41
HOSE HEATING PIPE TO RADIATOR
41
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR,K 068297
44
HOSE FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE
44
HOSE FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE
53
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
53
CLAMP , Replaced By: N000000000667
59
LINE FEED AND RETURN LINES TO HEATING
59
LINE HEATING AND BREATHING
59
LINE HEATING AND BREATHING
59
LINE HEATING AND BREATHING,5 708091K 096749
59
LINE HEATING AND BREATHING,K 096750
59
LINE ,5 464667 - 5 528983, Replaced By: A6555001572, +001A6555013082
59
LINE HEATING LINES,K 003669
62
SCREW PUMP TO BRACKET
